Motors
>
HVAC Motors
>
Oil Burner Motors

CENTURY Oil Burner Motor, 1/7 HP, 3450, 115 V, 48M

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Oil Burner Motor, PSC, Totally Enclosed, 1/7 HP, Nameplate RPM 3450, 48M Frame, Voltage 115, 60 Hz, 1 Phase, Full Load Amps 1.8, Flange Mounting, Manual Thermal Protection, Insulation Class F, Service Factor 1.0, Ball Bearings, Ambient Temperature 40 Degrees C, Rotation CCWSE, Shaft Dia. 1/2 In., Shaft Length 1-7/8 In., Flange Material Aluminum, Flange Type Ventilated, 2350-3600, UL Recognized (E46412/E25022), CSA Certified (LR43341), Features 18 1/2 In. Lead Set

Grainger Item #	4GZK2
Price (ea.)	$92.55
Brand	CENTURY
Mfr. Model #	OBK6002V1
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	7.32
Availability	Typically in Stock
Catalog Page No.	78
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $16.95 each.
Price shown may not reflect your price. Sign in or register.

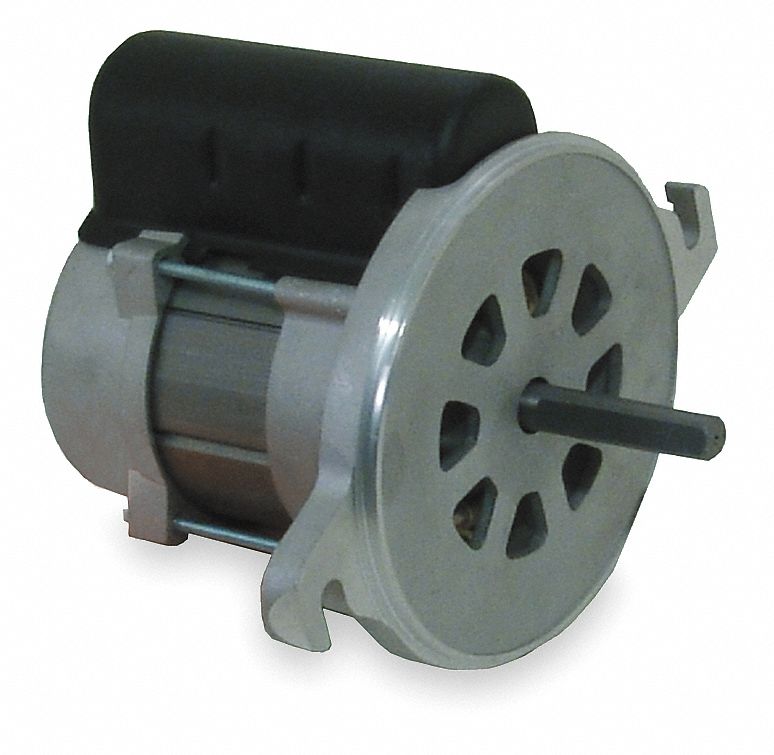

Oil Burner Motor, 1/7 HP, 3450, 115 V, 48M

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Oil Burner Motor
Motor Type		PSC
Enclosure		Totally Enclosed
HP		1/7
Nameplate RPM		3450
NEMA/IEC Frame		48M
Frame		48M
Voltage		115
Hz		60
Phase		1
Full Load Amps		1.8
Mounting		Flange
Thermal Protection		Manual
Insulation Class		F
Service Factor		1.0
Bearings		Ball
Ambient Temperature		40 Degrees C
Rotation		CCWSE
Shaft Dia.		1/2"
Shaft Length		1-7/8"
Flange Material		Aluminum
Flange Type		Ventilated
RPM Range		2350-3600
Standards		UL Recognized (E46412/E25022), CSA Certified (LR43341)
Features		18 1/2" Lead Set
