CENTURY Mtr, Split Ph, 1/2 HP, 1725rpm, 115V, 56Z, ODP

| Write a Review
| Read all Reviews(1)
| Read all Ask & Answer

OEM Replacement Motor, Split-Phase, 1/2 HP, Nameplate RPM 1725, Voltage 115, Frame 56Z, Open Dripproof, Number of Speeds 1, Full Load Amps 7.5, 60 Hz, Base Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CWLE, Overall Length 8-15/16 In., Shaft Dia. 1/2 In., Shaft Length 1-1/2 In., Capacitor Required None

Grainger Item #	2HUB3
Price (ea.)	$188.25
Brand	CENTURY
Mfr. Model #	OTEB2054A
UNSPSC #	26101603
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	16.53
Availability	Typically in Stock
Catalog Page No.	82
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

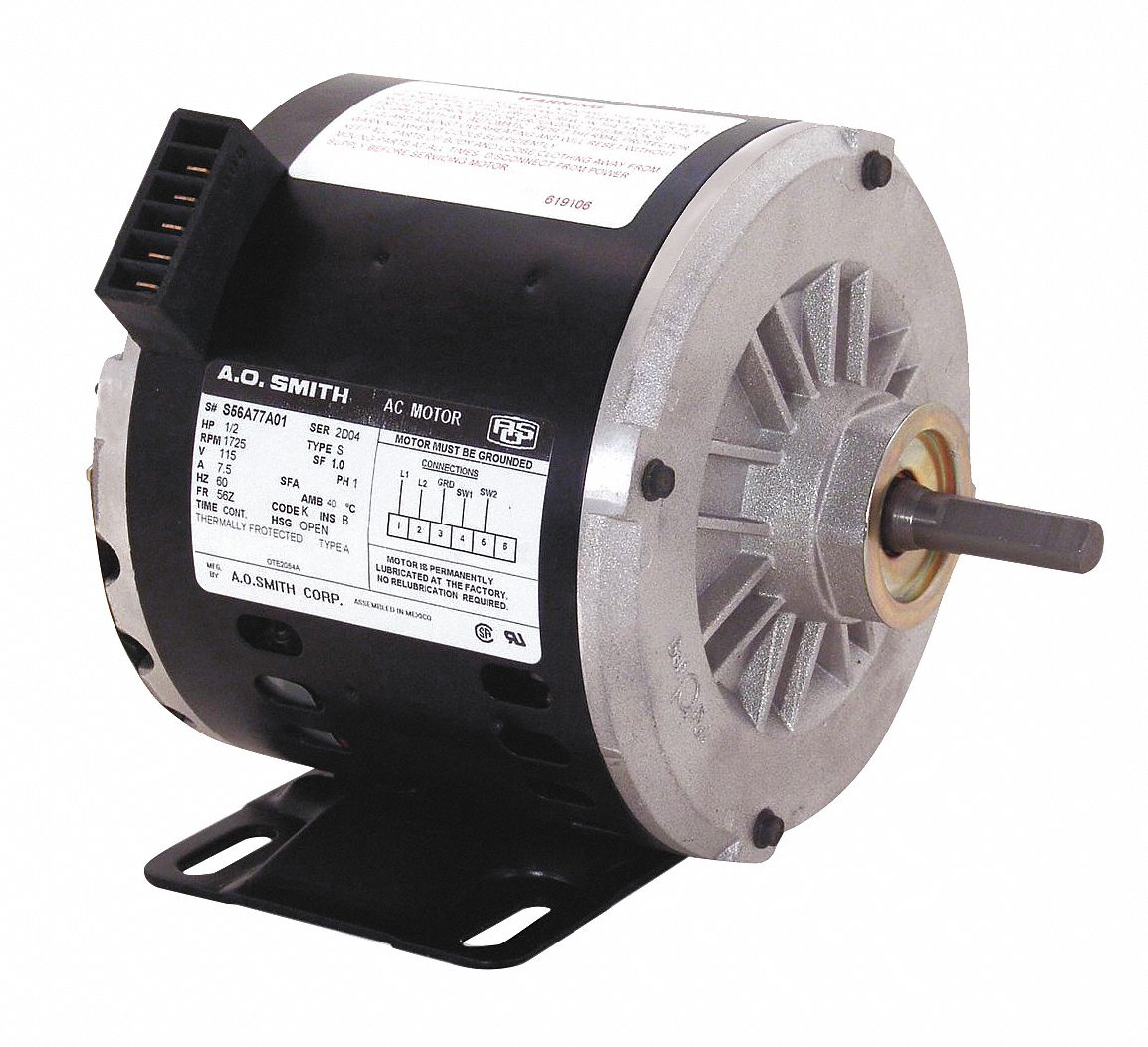

Mtr, Split Ph, 1/2 HP, 1725rpm, 115V, 56Z, ODP

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		OEM Replacement Motor
Motor Type		Split-Phase
Enclosure		Open Dripproof
HP		1/2
Nameplate RPM		1725
Voltage		115
Full Load Amps		7.5
Frame		56Z
Service Factor		1.0
Hz		60
Mounting		Base
Bearings		Ball
Thermal Protection		Auto
Rotation		CWLE
Insulation Class		B
Max. Ambient Temp.		40 Degrees C
Number of Speeds		1
Phase		1
Shaft Dia.		1/2"
Shaft Length		1-1/2"
Body Dia.		6-1/2"
Length Less Shaft		7-7/16"
Overall Length		8-15/16"
Capacitor Required		None
Application		Replacement Motor for Triangle Engineering Exhaust Fan
RPM Range		1400-1800
Standards		UL Recognized, CSA Certified
