Motors
>
HVAC Motors
>
3.3 Inch Diameter Motors

8 In. L

| Write a Review
| Read all Reviews
| Read all Ask & Answer

HVAC Motor, PSC, Open Air-Over, Continuous, 1/12 HP, 1550 Nameplate RPM, 115/208-230 Voltage, Nonstandard NEMA/IEC Frame, Service Factor 1.0, Full Load Amps 1.1/0.5, 60/50 Hz, Rotation CW/CCW, Insulation Class B, Max. Ambient Temp. 40 Degrees C, Number of Speeds 1, Mounting Stud, Ball Bearings, Thermal Protection Auto, Body Dia. 3.3 In., Shaft Dia. 5/16 In., Shaft Length 3-1/8 In., 4-1/8 In., 4/BE, 2 x 2 In.

Grainger Item #	2NFD1
Price (ea.)	$141.20
Brand	CENTURY
Mfr. Model #	9721
UNSPSC #	26101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	4.5
Availability	Typically in Stock
Catalog Page No.	61
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

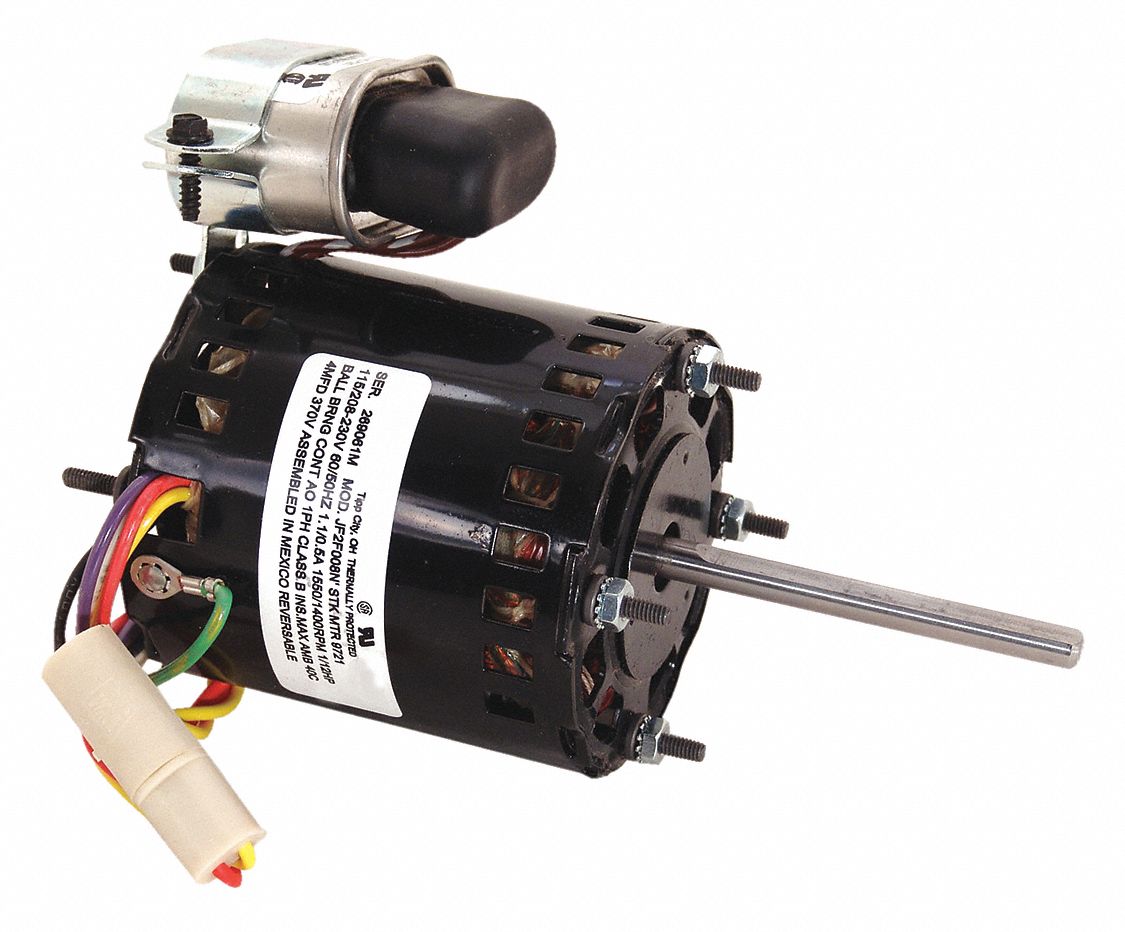

HVAC Motor, 115/208 to 230V, 3-1/8 In. L

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		HVAC Motor
Motor Type		PSC
Enclosure		Open Air-Over
Duty		Continuous
HP		1/12
Nameplate RPM		1550
Voltage		115/208-230
NEMA/IEC Frame		Nonstandard
Frame		Nonstandard
Service Factor		1.0
Full Load Amps		1.1/0.5
Hz		60/50
Rotation		CW/CCW
Insulation Class		B
Max. Ambient Temp.		40 Degrees C
Number of Speeds		1
Mounting		Stud
Bearings		Ball
Thermal Protection		Auto
Body Dia.		3.3"
Shaft Dia.		5/16"
Shaft Length		3-1/8"
Length Less Shaft		4-1/8"
Stud Location		4/BE
Stud/Base Mtg. Pattern		2 x 2"
Phase		1
Application		Replaces 1/12, 1/15 and 1/20 HP PSC and Less Efficient Shaded Pole Motors In Bohn, Chandler, Climate Control and Larkin Refrigeration Equipment
RPM Range		1400-1800
Includes		Reversing Plug and Extra Mounting Nuts for Quick Installation
Standards		UL Recognized (E22286), CSA Certified (LR12645)
Mounting Pattern		2 x 2
