Motors
>
Definite Purpose AC Motors
>
Farm Duty Motors

CENTURY Frm Dty Mtr, CapStrt, TEAO, 1hp, 1725 rpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Farm Duty Motor, Capacitor-Start, 1 HP, Nameplate RPM 1725/1425, Voltage 115/230, 1 Phase, Frame 56, Totally Enclosed Air-Over, Full Load Amps 9.0/4.5, 60/50 Hz, Cradle Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.3, Ball Bearings, Max. Ambient Temperature 40 Degrees C, CW/CCW Rotation, Overall Length 11-11/16 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Frame Material Cast Aluminum, Includes Gasketed Wiring Compartment Cover

Grainger Item #	3RCW9
Price (ea.)	$540.00
Brand	CENTURY
Mfr. Model #	PD6104AV2
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	33.52
Availability	Typically in Stock
Catalog Page No.	56
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

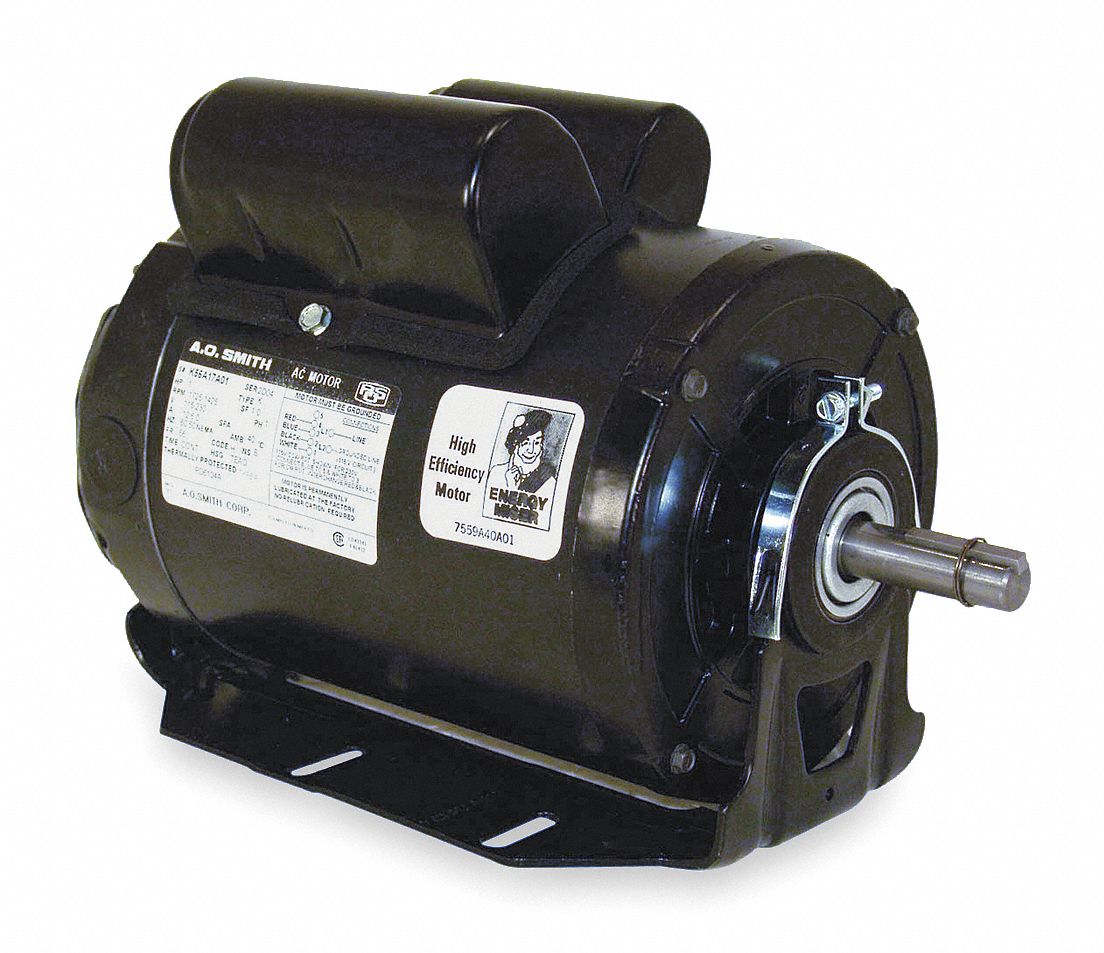

Frm Dty Mtr, CapStrt, TEAO, 1hp, 1725 rpm

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Farm Duty Motor
Motor Type		Capacitor-Start
Enclosure		Totally Enclosed Air-Over
HP		1
Nameplate RPM		1725/1425
NEMA/IEC Frame		56
Frame		56
Rotation		CW/CCW
Voltage		115/230
Full Load Amps		9.0/4.5
Phase		1
Hz		60/50
Mounting		Cradle
Mounting Position		Horizontal
Bearings		Ball
Frame Material		Cast Aluminum
Finish		Black Enamel
Thermal Protection		Auto
Service Factor		1.3
Max. Ambient Temperature		40 Degrees C
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Shaft Type		Keyed
Length Less Shaft		9-13/16"
Overall Length		11-11/16"
Insulation Class		B
RPM Range		1400-1800
Duty		Continuous Air Over
Includes		Gasketed Wiring Compartment Cover
Standards		CSA
