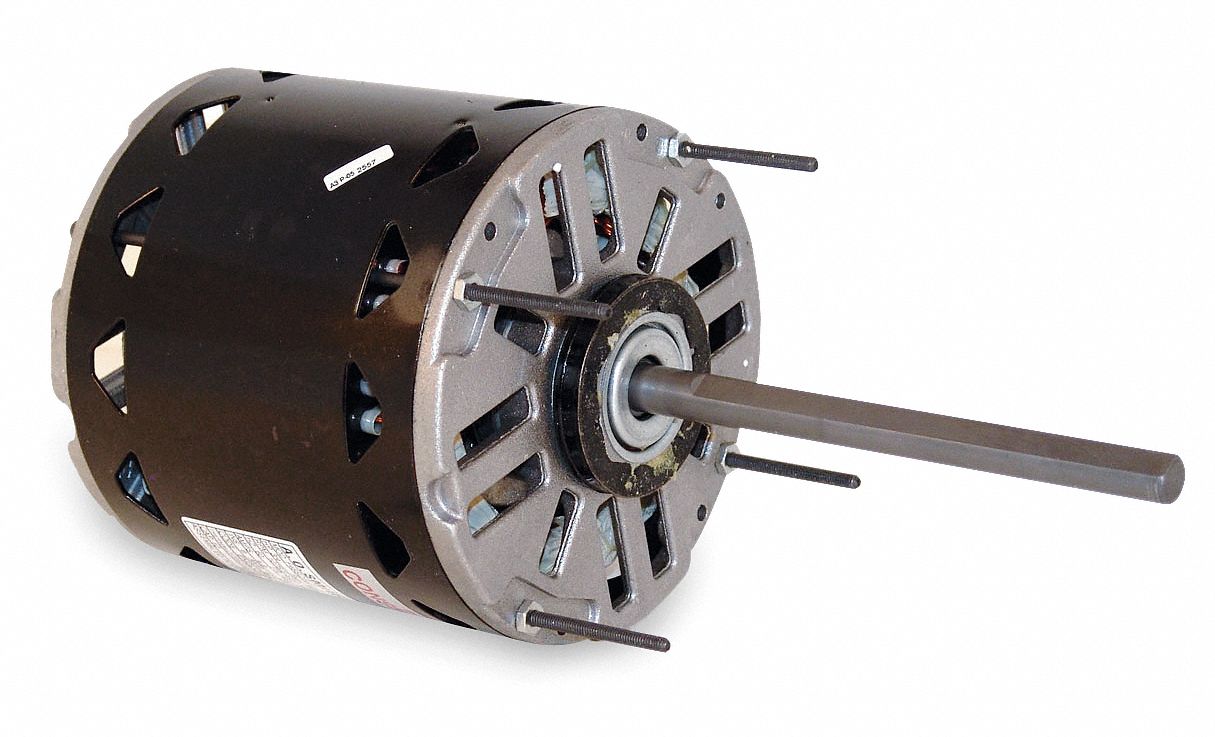

CENTURY Motor, PSC, 1/2 HP, 1625 RPM, 115V, 48Y, OAO

Direct Drive Blower Motor, PSC, 1/2 HP, Nameplate RPM 1625, Voltage 115, 1 Phase, Frame 48Y, Open Air-Over, Number of Speeds 3, Full Load Amps 7.6, 60 Hz, Ring/Stud Mounting, Thermal Protection Auto, Insulation Class A, Service Factor 1.0, Sleeve Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCWShaft Dia. 1/2 In., Shaft Length 5-15/16 In., Capacitor Required 2MDV9
  • Grainger Item #4MA88
    Price (ea.)$218.25
    BrandCENTURY
    Mfr. Model #FDL1054
    UNSPSC #26101602
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)15.95
    Availability Typically in Stock
    Catalog Page No.68
    Country of Origin
    (Country of Origin is subject to change.)
    Mexico
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemDirect Drive Blower Motor
Motor TypePSC
EnclosureOpen Air-Over
HP1/2
Nameplate RPM1625
Voltage115
Full Load Amps7.6
Hz60
Phase1
Frame48Y
Service Factor1.0
Max. Ambient Temp.40 Degrees C
Insulation ClassA
DutyContinuous Air Over
Number of Speeds3
MountingRing/Stud
BearingsSleeve
Thermal ProtectionAuto
RotationCW/CCW
Body Dia.5-5/8"
Length Less Shaft6-1/8"
Shaft Dia.1/2"
Shaft Length5-15/16"
Shaft TypeFlat
Capacitor IncludedNo
Capacitor Required2MDV9
Resilient Ring Dia.2-1/4"
Ring to Ring Center5-11/16"
Stud LocationShaft End
Stud Pattern3-5/8 x 3-5/8"
Stud Size#8-32 x 1-5/8"
RPM Range1400-1800
StandardsUL Recognized, CSA Certified
ApplicationFan Coils, Dual Wheel Blower
IncludesResilient Mounting Ring
