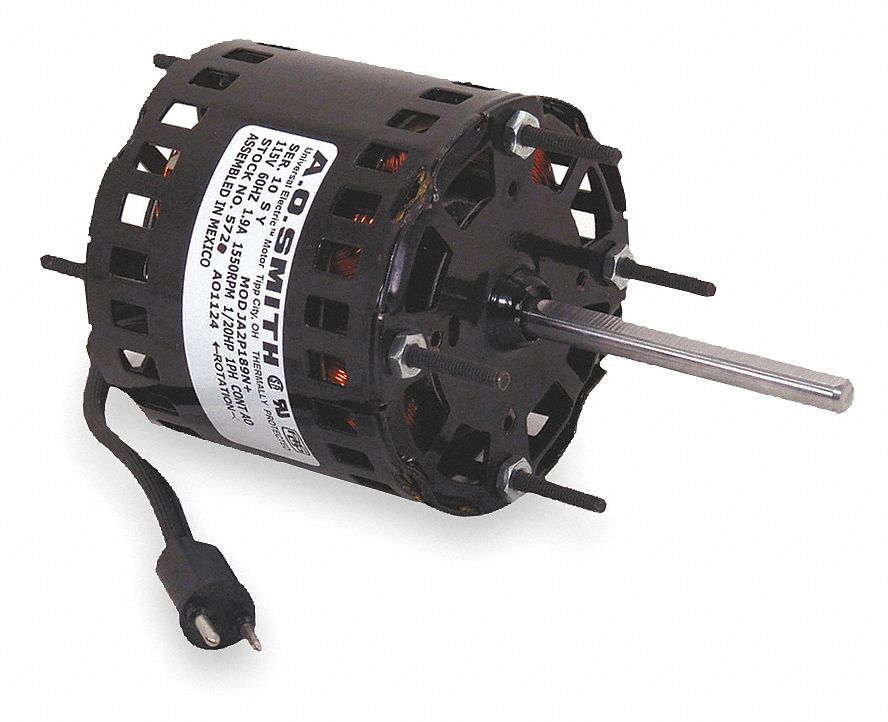

CENTURY Motor, Sh Pole, 1/20 HP, 1550, 115V, 3.3, OAO

Direct Drive Blower Motor, Shaded Pole, 1/20 HP, Nameplate RPM 1550, Voltage 115, 1 Phase, Frame 3.3, Open Air-Over, Number of Speeds 1, Full Load Amps 1.9, 60 Hz, Stud Mounting, Thermal Protection Auto, Insulation Class A, Service Factor 1.0, Sleeve Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CWSE, Overall Length 6-3/8 In., Shaft Dia. 5/16 In., Shaft Length 3 In., Capacitor Required None
  • Grainger Item #3RCU3
    Price (ea.)$106.50
    BrandCENTURY
    Mfr. Model #572A
    UNSPSC #26101602
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)3.64
    Availability Typically in Stock
    Catalog Page No.63
    Country of Origin
    (Country of Origin is subject to change.)
    Mexico
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemDirect Drive Blower Motor
Motor TypeShaded Pole
EnclosureOpen Air-Over
HP1/20
Nameplate RPM1550
Voltage115
Full Load Amps1.9
Hz60
Phase1
Frame3.3
Service Factor1.0
Max. Ambient Temp.40 Degrees C
Insulation ClassA
DutyContinuous Air Over
Number of Speeds1
MountingStud
Shaft OrientationHorizontal
BearingsSleeve
Thermal ProtectionAuto
RotationCWSE
Body Dia.3-3/8"
Length Less Shaft3-9/16"
Overall Length6-3/8"
Shaft Dia.5/16"
Shaft Length3"
Shaft TypeFlat
Capacitor IncludedNot Required
Capacitor RequiredNone
Stud LocationBoth Ends
Stud Pattern1-11/16 x 1-11/16"
Stud Size#8-32
Stud Length5/8"
Bolt Circle Dia.2.84"
RPM Range1400-1800
StandardsUL Recognized (E46412), CSA Certified (LR12645)
ApplicationHeatcraft
Warranty (Years)1 yr.
IncludesLead and Plug Assembly
