Motors
>
HVAC Motors
>
Direct Drive Blower Motors

230V, 48Z, TEAO

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Direct Drive Blower Motor, PSC, 1/3 HP, Nameplate RPM 1100, Voltage 115/230, 1 Phase, Frame 48Z, Totally Enclosed Air-Over, Number of Speeds 1, Full Load Amps 4.5/2.3, 60 Hz, Cradle/Stud Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 10 In., Shaft Dia. 1/2 In., Shaft Length 3-1/4 In., Capacitor Required Included

Grainger Item #	2FGP8
Price (ea.)	$165.00
Brand	CENTURY
Mfr. Model #	C046A
UNSPSC #	26101603
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	17.44
Availability	Typically in Stock
Catalog Page No.	75
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

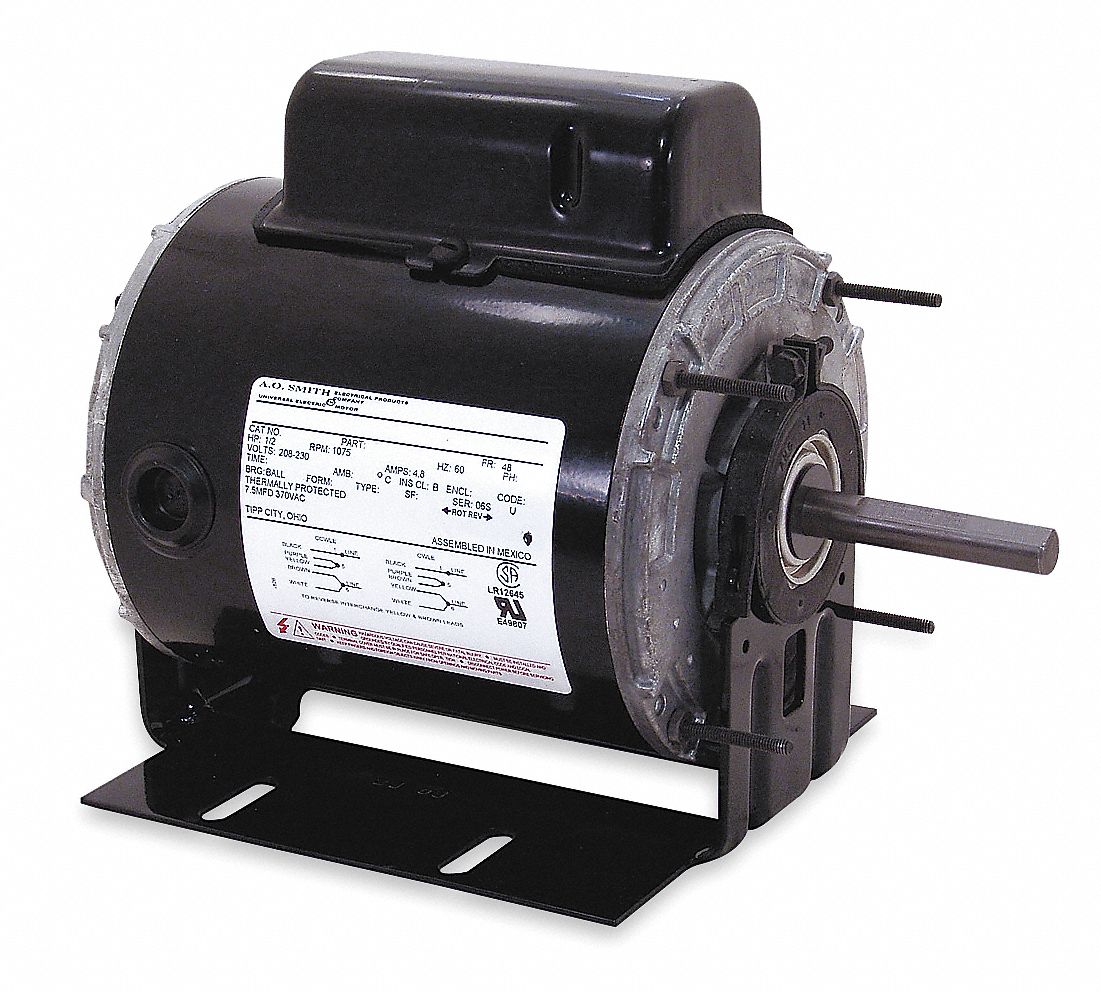

Motor, PSC, 1/3 HP, 1100, 115/230V, 48Z, TEAO

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Direct Drive Blower Motor
Motor Type		PSC
Enclosure		Totally Enclosed Air-Over
HP		1/3
Nameplate RPM		1100
Voltage		115/230
Full Load Amps		4.5/2.3
Hz		60
Phase		1
Frame		48Z
Service Factor		1.0
Max. Ambient Temp.		40 Degrees C
Insulation Class		B
Duty		Continuous Air Over
Number of Speeds		1
Mounting		Cradle/Stud
Shaft Orientation		All Angle
Bearings		Ball
Thermal Protection		Auto
Rotation		CW/CCW
Body Dia.		5-5/8"
Length Less Shaft		7-1/4"
Overall Length		10"
Shaft Dia.		1/2"
Shaft Length		3-1/4"
Shaft Type		Double Flat
Capacitor Included		Yes
Capacitor Required		Included
Resilient Ring Dia.		2-1/2"
Ring to Ring Center		6-3/4"
Stud Location		Shaft End
Stud Pattern		3-5/8 x 3-5/8"
Stud Size		#8-32
Stud Length		1"
Bolt Circle Dia.		5-3/16"
RPM Range		1000-1380
Standards		UL Recognized (E46412/E49807), CSA Certified (LR43341/LE12645)
Application		Direct Drive Furnace Blowers, Unit Heaters, Air Conditioners, Many Other Shaft Mounted Fan and Blower Uses
Warranty (Years)		1 yr.
Includes		Base, Shaft Slinger, Shaft Sleeve and Key for 5/8" Dia.
