Motors
>
HVAC Motors
>
Condenser Fan Motors

6 HP, 1075 rpm

| Write a Review
| Read all Reviews(1)
| Read all Ask & Answer

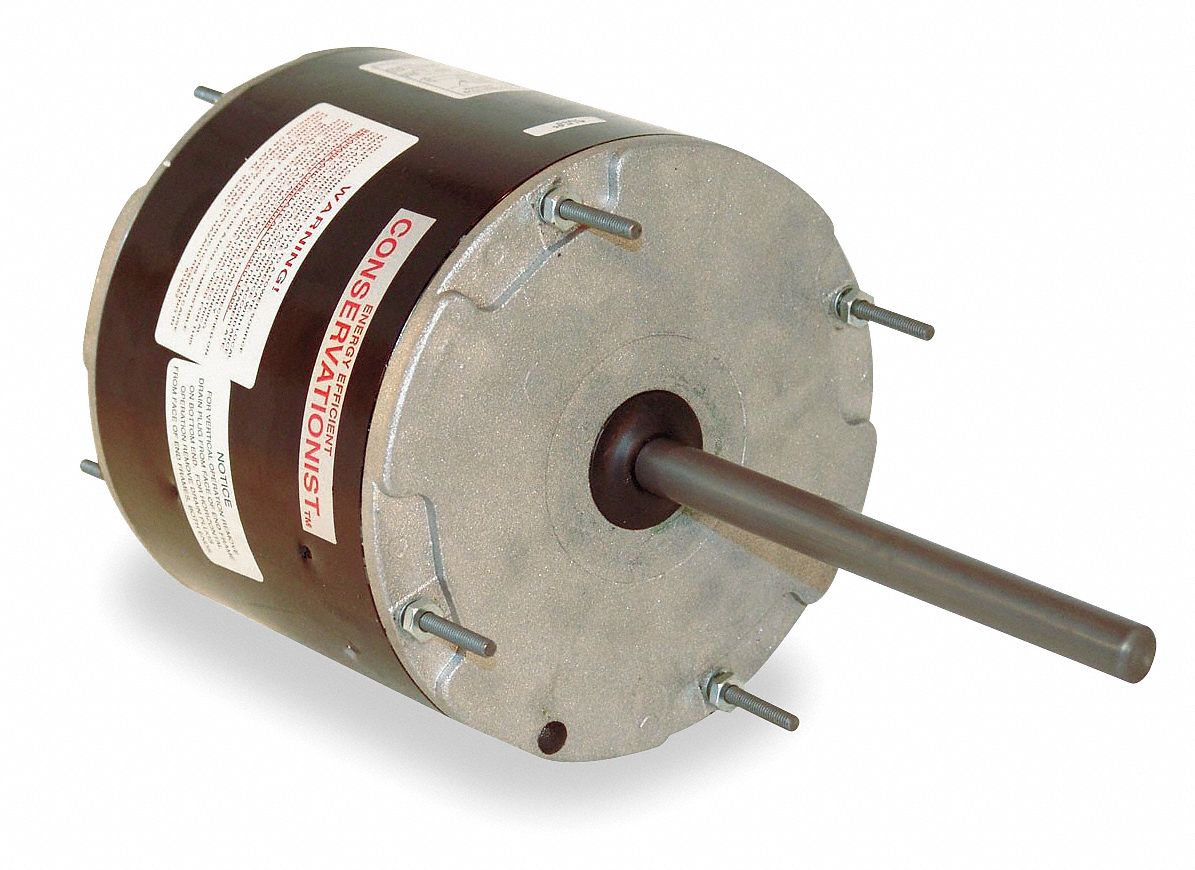

Condenser Fan Motor, PSC, 1/3, 1/6 HP, Nameplate RPM 1075, Voltage 208-230, 48Y Frame, Totally Enclosed Air-Over, Number of Speeds 2, Full Load Amps 1.8, Stud/Band/Hole Mounting, Auto Thermal Protection, Insulation Class F, Service Factor 1.0, Ball Bearings, Max. Ambient Temp. 70 Degrees C, CW/CCW Rotation, Overall Length 11-1/4 In., Shaft Dia. 1/2 In., Shaft Length 6-1/2 In., Capacitor Required Included

Grainger Item #	6TWK5
Price (ea.)	$82.92
Brand	CENTURY
Mfr. Model #	FE6000F
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	14.9
Availability	Typically in Stock
Catalog Page No.	71
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $16.95 each.
Price shown may not reflect your price. Sign in or register.

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Condenser Fan Motor
Motor Type		PSC
Enclosure		Totally Enclosed Air-Over
HP		1/3, 1/6
Number of Speeds		2
Nameplate RPM		1075
NEMA/IEC Frame		48Y
Frame		48Y
Voltage		208-230
Hz		60
Phase		1
Full Load Amps		1.8
Mounting		Stud/Band/Hole
Thermal Protection		Auto
Insulation Class		F
Service Factor		1.0
Bearings		Ball
Max. Ambient Temp.		70 Degrees C
Rotation		CW/CCW
Overall Length		11-1/4"
Length Less Shaft		4-3/4""
Shaft Dia.		1/2"
Shaft Length		6-1/2"
Body Dia.		5-5/8"
Bolt Circle Dia.		5-1/8"
Stud Quantity		4
Stud Pattern		3-5/8 x 3-5/8"
Stud Size		8-32"
Lead Length		48"
Shaft Type		Flat
Shaft Orientation		All Angle
Features		Energy Efficient, Auto Protector, Extended Through Bolts
Duty		Continuous Air-Over
Capacitor Required		Included
Application		Replaces Emerson, Fasco, Genteq and Marathon Motors in Residential and Light Commercial Air Conditioning and Refrigeration Condensing Units
RPM Range		1000-1380
Standards		UL Recognized (E46412), CSA Certified (LR43341)
