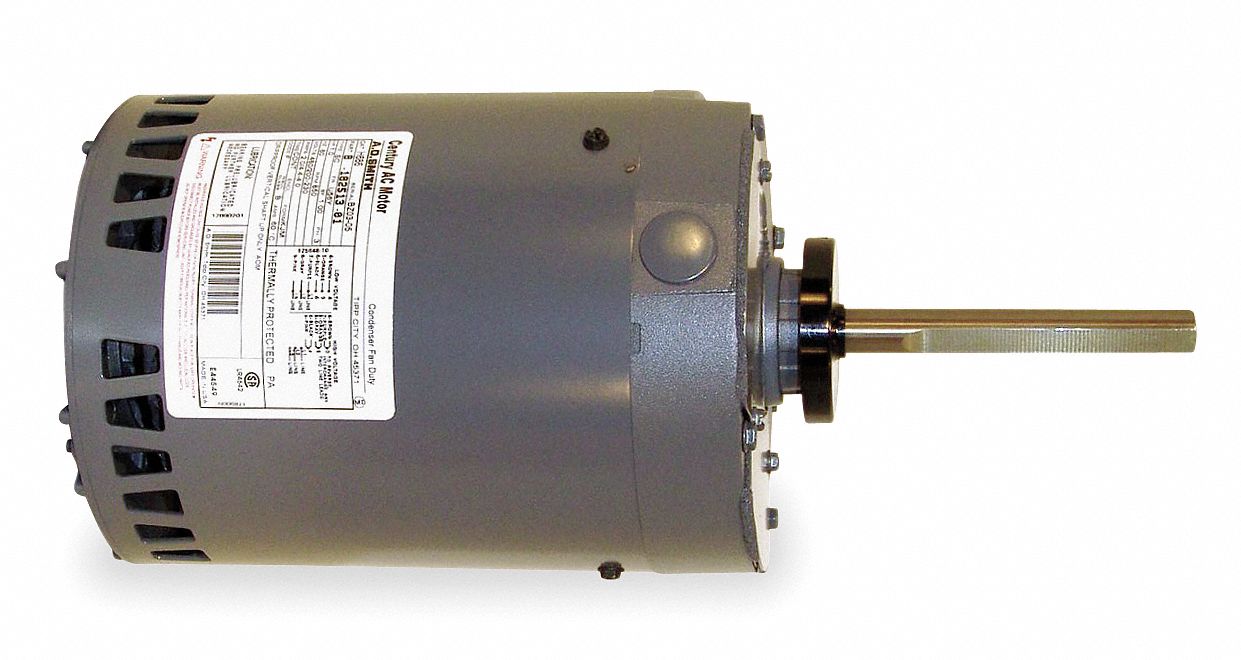

CENTURY Condenser Fan Motor, 1 HP, 850 rpm, 60 Hz

Condenser Fan Motor, 3-Phase, 1 HP, Nameplate RPM 850, Voltage 200-230/460, 56Y Frame, Open Air-Over, Number of Speeds 1, Full Load Amps 4.4-4.0/2.0, Band Mounting, Auto Thermal Protection, Insulation Class B, Service Factor 1.0, Ball Bearings, Max. Ambient Temp. 60 Degrees C, CW/CCW Rotation, Overall Length 14-1/4 In., Shaft Dia. 5/8 In., Shaft Length 4-7/8 In.
  • Grainger Item #4ME24
    Price (ea.)$413.50
    BrandCENTURY
    Mfr. Model #H686
    UNSPSC #26101612
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)31.9
    Availability Typically in Stock
    Catalog Page No.74
    Country of Origin
    (Country of Origin is subject to change.)
    Mexico
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemCondenser Fan Motor
Motor Type3-Phase
EnclosureOpen Air-Over
HP1
Number of Speeds1
Nameplate RPM850
NEMA/IEC Frame56Y
Frame56Y
Voltage200-230/460
Hz60
Phase3
Full Load Amps4.4-4.0/2.0
MountingBand
Thermal ProtectionAuto
Insulation ClassB
Service Factor1.0
BearingsBall
Max. Ambient Temp.60 Degrees C
RotationCW/CCW
Overall Length14-1/4"
Length Less Shaft9-3/8"
Shaft Dia.5/8"
Shaft Length4-7/8"
Body Dia.6-1/2"
Nominal Efficiency0.72
Shaft TypeDouble Flat
Shaft OrientationUp
FeaturesReversible, Auto Protector, Quick Connect Design
DutyContinuous Air-Over
RPM Range700-980
StandardsUL Recognized (E46412/E44549), CSA Certified (LR43341/LR4642)
