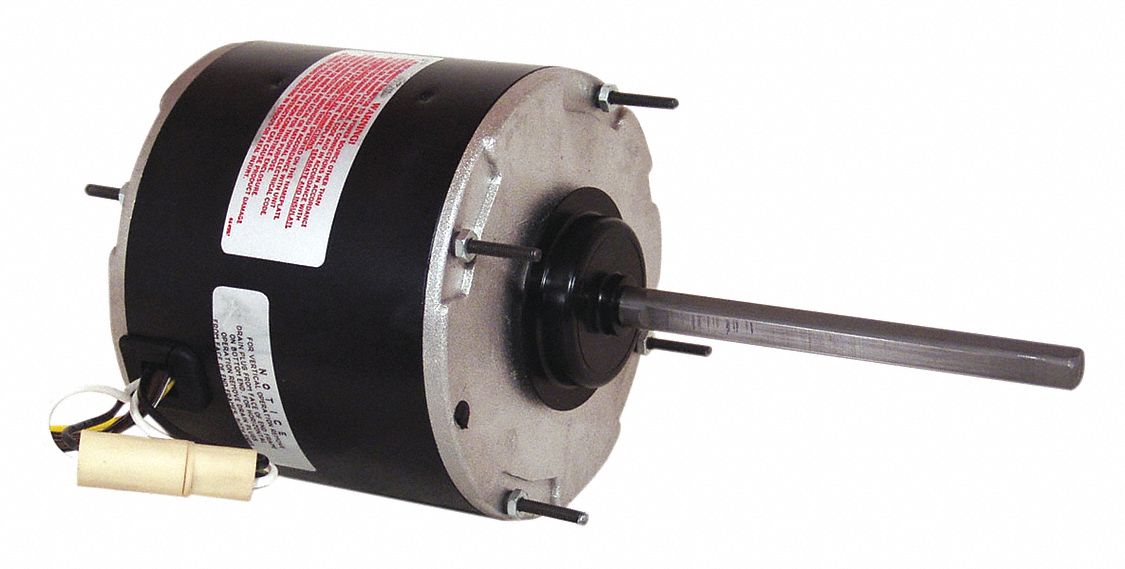

CENTURY Condenser Fan Motor, 1/2 HP, 1075 rpm, 60Hz

Condenser Fan Motor, PSC, 1/2 HP, Nameplate RPM 1075, Voltage 208-230, 48Y Frame, Totally Enclosed Air-Over, Number of Speeds 1, Full Load Amps 2.5-2.8, Stud Mounting, Auto Thermal Protection, Insulation Class B, Service Factor 1.0, Sleeve Bearings, Max. Ambient Temp. 60 Degrees C, CW/CCW Rotation, Overall Length 11-13/16 In., Shaft Dia. 1/2 In., Shaft Length 5-5/8 In., Capacitor Required 2MDV7
  • Grainger Item #4MB27
    Price (ea.)$109.00
    BrandCENTURY
    Mfr. Model #FSE1056SV1
    UNSPSC #26101602
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)19.0
    Availability Typically in Stock
    Catalog Page No.70
    Country of Origin
    (Country of Origin is subject to change.)
    Mexico
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemCondenser Fan Motor
Motor TypePSC
EnclosureTotally Enclosed Air-Over
HP1/2
Number of Speeds1
Nameplate RPM1075
NEMA/IEC Frame48Y
Frame48Y
Voltage208-230
Hz60
Phase1
Full Load Amps2.5-2.8
MountingStud
Thermal ProtectionAuto
Insulation ClassB
Service Factor1.0
BearingsSleeve
Max. Ambient Temp.60 Degrees C
RotationCW/CCW
Overall Length11-13/16"
Length Less Shaft6-3/16"
Shaft Dia.1/2"
Shaft Length5-5/8"
Body Dia.5-5/8"
Stud Quantity4
Stud Pattern3-5/8 x 3-5/8"
Stud Size8-32 x 7/8, 8-32 x 9/16"
Lead Length37"
Shaft OrientationUp/Down
FeaturesEnergy Efficient, Auto Protector, Extended Through Bolts
DutyContinuous Air-Over
Capacitor Required2MDV7
RPM Range1000-1380
StandardsUL Recognized (E46412/E44549), CSA Certified (LR43341/LR4642)


Required Accessories

More Accessories

Brand:

DAYTON

Grainger Item #:

2MDV7

Price (ea.):

$8.54
