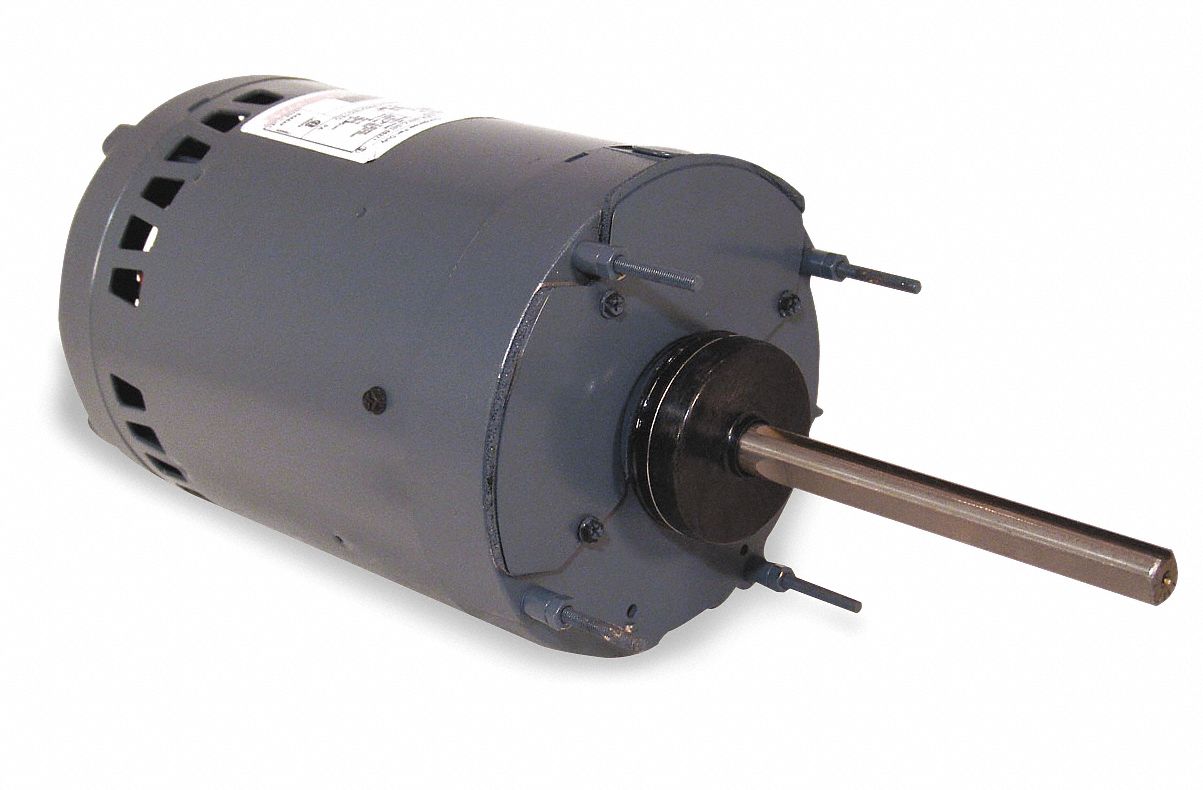

CENTURY Condenser Fan Motor, 1 HP, 1075 rpm, 60 Hz

Condenser Fan Motor, PSC, 1 HP, Nameplate RPM 1075, Voltage 200-230/460, 56Y Frame, Open Air-Over, Number of Speeds 1, Full Load Amps 4.8-4.8/2.4, Ring/Stud Mounting, Auto Thermal Protection, Insulation Class B, Service Factor 1.0, Double Sealed Ball Bearings, Max. Ambient Temp. 60 Degrees C, CW/CCW Rotation, Overall Length 16-13/16 In., Shaft Dia. 5/8 In., Shaft Length 6 In., Capacitor Required 2MDW3
  • Grainger Item #4MA27
    Price (ea.)$332.99
    BrandCENTURY
    Mfr. Model #C770V1
    UNSPSC #26101602
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)36.15
    Availability Typically in Stock
    Catalog Page No.72
    Country of Origin
    (Country of Origin is subject to change.)
    Mexico
  • Sale Item
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemCondenser Fan Motor
Motor TypePSC
EnclosureOpen Air-Over
HP1
Number of Speeds1
Nameplate RPM1075
NEMA/IEC Frame56Y
Frame56Y
Voltage200-230/460
Hz60
Phase1
Full Load Amps4.8-4.8/2.4
MountingRing/Stud
Thermal ProtectionAuto
Insulation ClassB
Service Factor1.0
BearingsDouble Sealed Ball
Max. Ambient Temp.60 Degrees C
RotationCW/CCW
Overall Length16-13/16"
Length Less Shaft10-13/16"
Shaft Dia.5/8"
Shaft Length6"
Body Dia.6-1/2"
Resilient Ring Dia.2-1/2"
Ring to Ring Center10-5/16"
Stud Quantity4
Stud Pattern4-1/8 x 4-1/8"
Stud Size10-32 x 1-1/4"
Nominal Efficiency0.72
Shaft TypeKeyed with Single Flat
Shaft OrientationUp
FeaturesInternal Conduit Box for Enclosed Wiring Connection
DutyContinuous Air-Over
Capacitor Required2MDW3
RPM Range1000-1380
StandardsUL Recognized (E46412/E44549), CSA Certified (LR43341/LR4642)
