Motors
>
Pump Motors
>
Close-Coupled Pump Motors

CENTURY Pump Motor, 3-Ph, 2 HP, 1710, 230/460V, 145JM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Close-Coupled Pump Motor, 3-Phase, 2 HP, Nameplate RPM 1710, Voltage 230/460, 3 Phase, Frame 145JM, Totally Enclosed Fan-Cooled, Full Load Amps 5.6/2.8, 60 Hz, Face/Base Mounting, Thermal Protection None, Insulation Class F, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Rotation, Overall Length 15-1/2 In., Shaft Dia. 1-1/8 In., Shaft Length 4-1/4 In., Frame Material Cast Iron, Includes External Slinger

Grainger Item #	6KFH0
Price (ea.)	$384.50
Brand	CENTURY
Mfr. Model #	TCP71028
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	61.5
Availability	Typically in Stock
Catalog Page No.	45
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

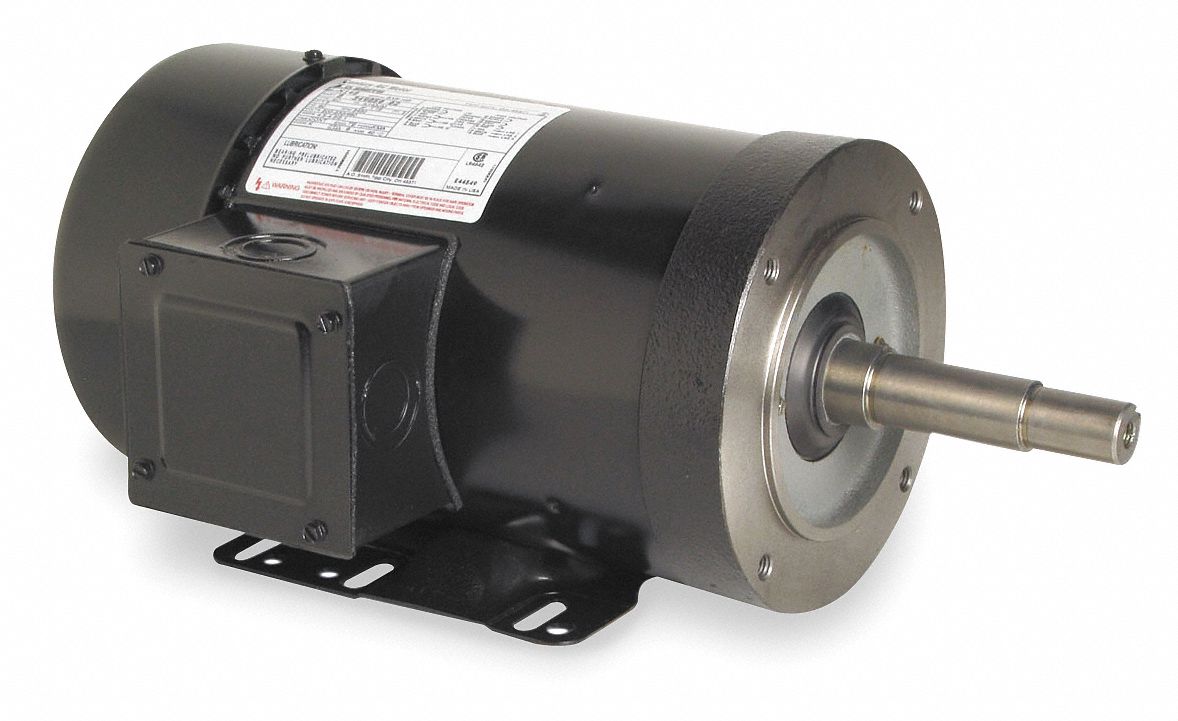

Pump Motor, 3-Ph, 2 HP, 1710, 230/460V, 145JM

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Close-Coupled Pump Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		2
Nameplate RPM		1710
NEMA/IEC Frame		145JM
Frame		145JM
Rotation		CW/CCW
Voltage		230/460
Full Load Amps		5.6/2.8
Phase		3
Hz		60
Mounting		Face/Base
Bearings		Ball
Frame Material		Cast Iron
Thermal Protection		None
Service Factor		1.15
Max. Ambient Temp.		40 Degrees C
Shaft Dia.		1-1/8"
Shaft Length		4-1/4"
Shaft Type		JM Threaded
Length Less Shaft		11-1/4"
Overall Length		15-1/2"
Insulation Class		F
RPM Range		1400-1800
Duty		Continuous
Nominal Efficiency		84.0%
Efficiency Group		High
Inverter Rated		6:1 Variable, 4:1 Constant Torque
Standards		UL Recognized (E92588/E137055), CSA Certified (LR58484)
Includes		External Slinger
