CENTURY Pump Motor, 3-Ph, 5 HP, 3490, 230/460V, 184JM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Close-Coupled Pump Motor, 3-Phase, 5 HP, Nameplate RPM 3490, Voltage 230/460, 3 Phase, Frame 184JM, Totally Enclosed Fan-Cooled, Full Load Amps 11.8/5.9, 60 Hz, Face/Base Mounting, Thermal Protection None, Insulation Class F, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Rotation, Overall Length 17-1/8 In., Shaft Dia. 7/8 In., Shaft Length 4-1/4 In., Frame Material Cast Iron, Includes Shaft Slinger

Grainger Item #	1DMH6
Price (ea.)	$719.00
Brand	CENTURY
Mfr. Model #	TCP71005
UNSPSC #	26101603
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	104.0
Availability	Typically in Stock
Catalog Page No.	45
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

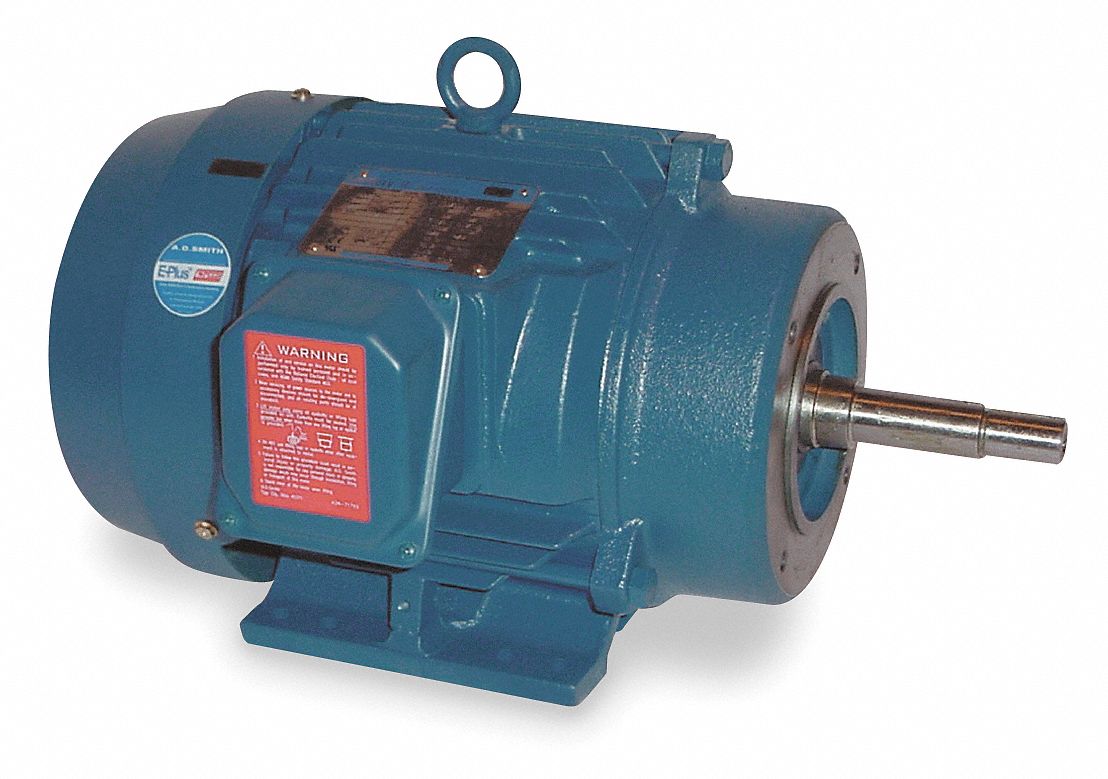

Pump Motor, 3-Ph, 5 HP, 3490, 230/460V, 184JM

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Close-Coupled Pump Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		5
Nameplate RPM		3490
NEMA/IEC Frame		184JM
Frame		184JM
Rotation		CW/CCW
Voltage		230/460
Full Load Amps		11.8/5.9
Phase		3
Hz		60
Mounting		Face/Base
Bearings		Ball
Frame Material		Cast Iron
Thermal Protection		None
Service Factor		1.15
Max. Ambient Temp.		40 Degrees C
Shaft Dia.		7/8"
Shaft Length		4-1/4"
Shaft Type		JM Threaded
Length Less Shaft		12-7/8"
Overall Length		17-1/8"
Insulation Class		F
RPM Range		2350-3600
Duty		Continuous
Nominal Efficiency		87.5%
Efficiency Group		EPAct
Inverter Rated		6:1 Variable, 4:1 Constant Torque
Standards		UL Recognized (E92588), CSA Certified (LR58484), CC079A
Includes		Shaft Slinger
