Motors
>
HVAC Motors
>
Belt Drive Motors

230V, 56, Open

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Belt Drive Motor, Split-Phase, 1/2 HP, Nameplate RPM 1725, Voltage 115/230, 1 Phase, Frame 56, Open, Full Load Amps 9.6/4.8, 60 Hz, Cradle Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.25, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 10-3/16 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In.

Grainger Item #	5ELN2
Price (ea.)	$199.11
Brand	CENTURY
Mfr. Model #	RB2054DV2
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	19.1
Availability	Typically in Stock
Catalog Page No.	82
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

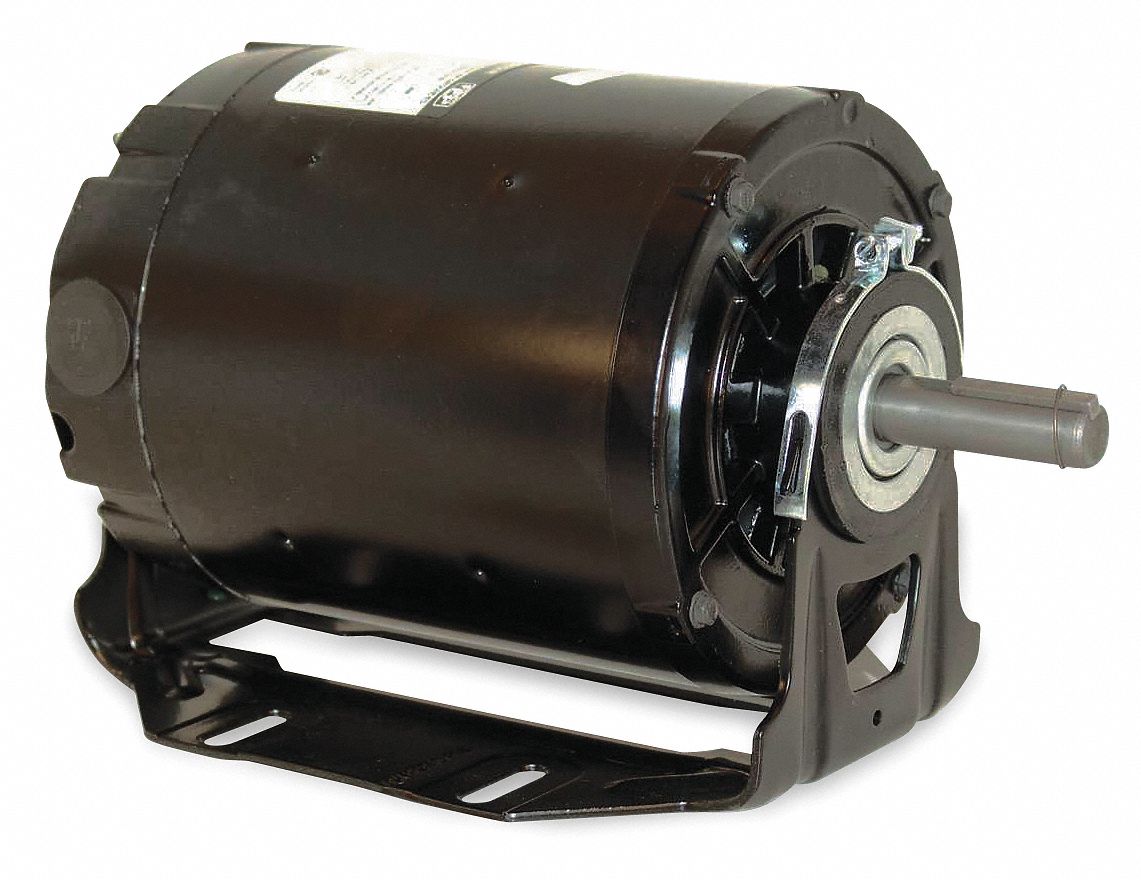

Motor, Sp Ph, 1/2 HP, 1725, 115/230V, 56, Open

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Belt Drive Motor
Motor Type		Split-Phase
HP		1/2
Nameplate RPM		1725
Voltage		115/230
Frame		56
Enclosure		Open
Mounting		Cradle
Hz		60
Full Load Amps		9.6/4.8
Thermal Protection		Auto
Insulation Class		B
Service Factor		1.25
Bearings		Ball
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Length Less Shaft		8-5/16"
Overall Length		10-3/16"
Body Dia.		6-1/2"
Stud Pattern		4-1/8 x 4-1/8"
Resilient Ring Dia.		2-1/2"
Ring to Ring Center		7-13/16"
Duty		Continuous
RPM Range		1400-1800
Phase		1
Standards		CSA Certified (LR43341)
