CENTURY Motor, Split Ph, 1/4 HP, 1725, 115V, 48, ODP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Belt Drive Motor, Split-Phase, 1/4 HP, Nameplate RPM 1725, Voltage 115, 1 Phase, Frame 48, Open Dripproof, Full Load Amps 5.4, 60 Hz, Cradle Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.35, Sleeve Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 8-15/16 In., Shaft Dia. 1/2 In., Shaft Length 1-1/2 In., Includes 5/8 In. dia. Shaft Bushing

Grainger Item #	4UE76
Price (ea.)	$98.22
Brand	CENTURY
Mfr. Model #	GF2024
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	14.0
Availability	Typically in Stock
Catalog Page No.	81
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

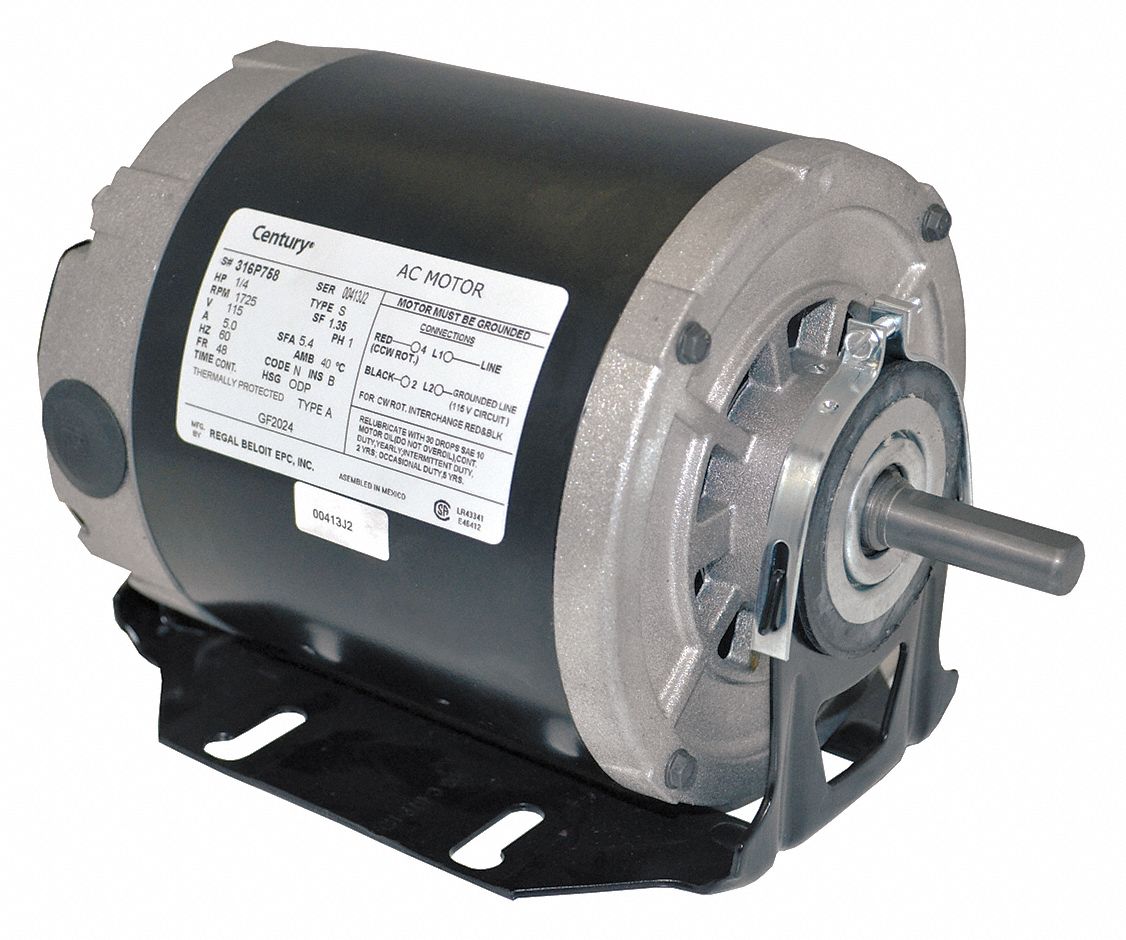

Motor, Split Ph, 1/4 HP, 1725, 115V, 48, ODP

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Belt Drive Motor
Motor Type		Split-Phase
HP		1/4
Nameplate RPM		1725
Voltage		115
Frame		48
Enclosure		Open Dripproof
Mounting		Cradle
Hz		60
Full Load Amps		5.4
Thermal Protection		Auto
Insulation Class		B
Service Factor		1.35
Bearings		Sleeve
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		1/2"
Shaft Length		1-1/2"
Length Less Shaft		7-7/16"
Overall Length		8-15/16"
Body Dia.		5-5/8"
Resilient Ring Dia.		2-1/2"
Ring to Ring Center		7-3/16"
Nominal Efficiency		54.0%
Duty		Continuous
RPM Range		1400-1800
Phase		1
Standards		CSA Certified
Footnotes		92
Includes		5/8" dia. Shaft Bushing
