CENTURY Mtr, 3 Ph, 5 HP, 3450, 208-230/460V, Eff 85.2

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Belt Drive Motor, 3-Phase, 5 HP, Nameplate RPM 3450, Voltage 208-230/460, 3 Phase, Frame 56HZ, Open Dripproof, Full Load Amps 13.4-13.2/6.6, 60 Hz, Cradle Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 14-9/16 In., Shaft Dia. 7/8 In., Shaft Length 2-1/4 In.

Grainger Item #	3DGD1
Price (ea.)	$619.50
Brand	CENTURY
Mfr. Model #	H1039L
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	47.25
Availability	Typically in Stock
Catalog Page No.	83
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

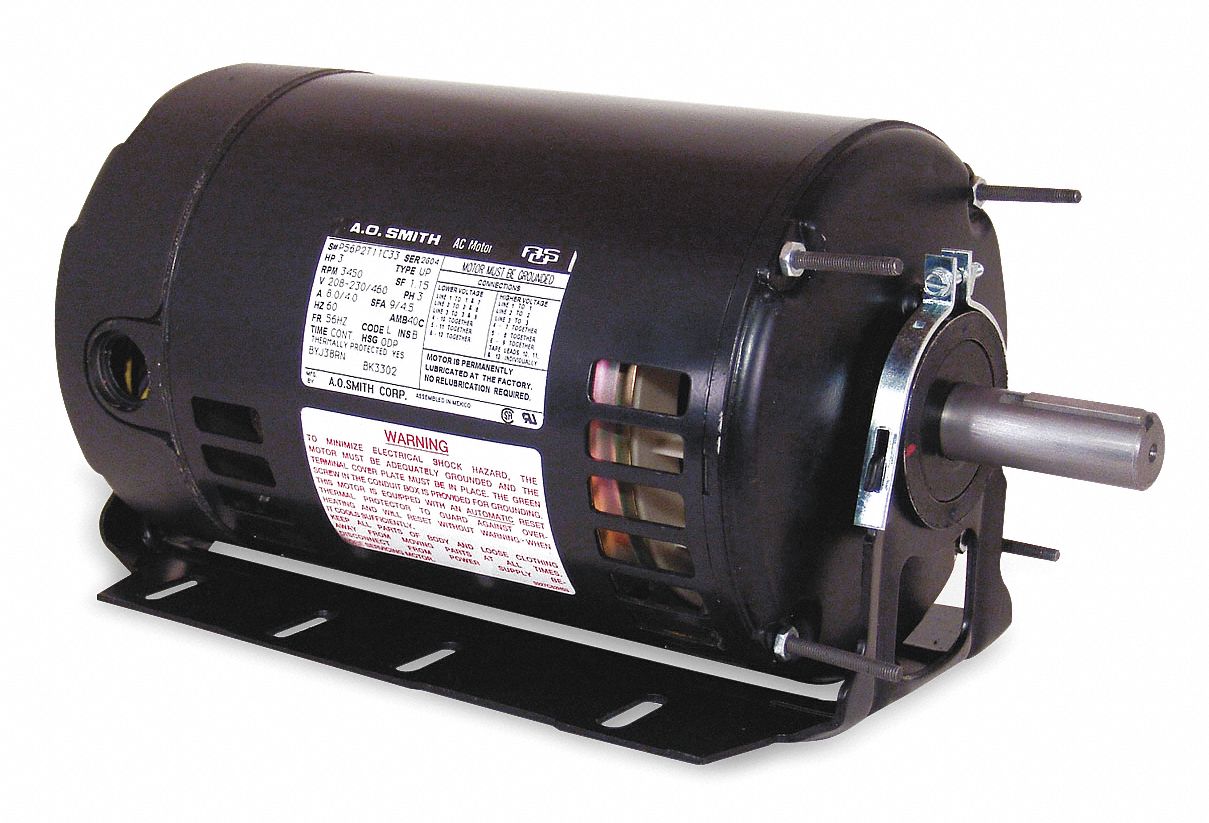

Mtr, 3 Ph, 5 HP, 3450, 208-230/460V, Eff 85.2

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Belt Drive Motor
Motor Type		3-Phase
HP		5
Nameplate RPM		3450
Voltage		208-230/460
Frame		56HZ
Enclosure		Open Dripproof
Mounting		Cradle
Hz		60
Full Load Amps		13.4-13.2/6.6
Thermal Protection		Auto
Insulation Class		B
Service Factor		1.15
Bearings		Ball
Frame Material		Steel
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		7/8"
Shaft Length		2-1/4"
Length Less Shaft		12-5/16"
Overall Length		14-9/16"
Body Dia.		6-5/8"
Stud Pattern		4-1/8 x 4-1/8"
Resilient Ring Dia.		2-1/2"
Ring to Ring Center		11-15/16"
Nominal Efficiency		85.2%
Duty		Continuous
RPM Range		2350-3600
Phase		3
Standards		UL Recognized (E44549), CSA Certified (LR4642)
Footnotes		15
