Machining
>
Indexable Inserts
>
Threading Inserts

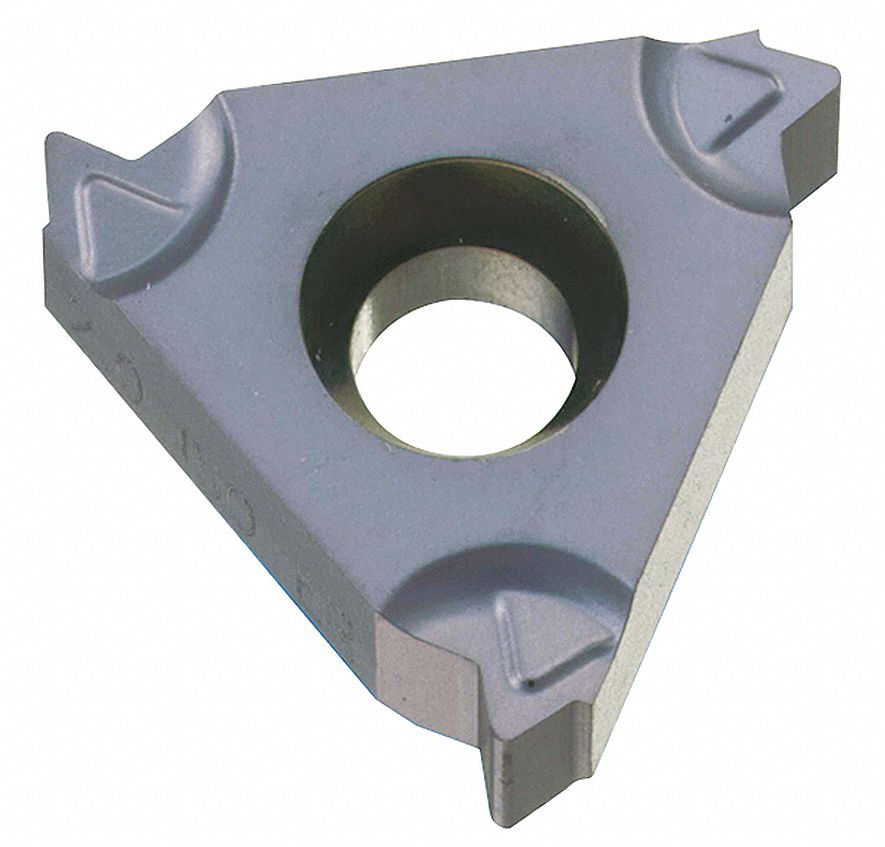

CARMEX Thread Turning Insert, 16 ER 14 UN BMA

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Thread Turning Insert, Laydown, ANSI Number 16 ER 14 UN BMA, Thread Profile UN, Pitch 14 TPI, Thread Type External, Cutting Direction Right Hand, Insert Type External Lay Down, Chip-Breaker Top Rake, Stainless Steel, Super Alloys, Grade BMA, No. of Edges 3, Insert Size 16, Coating TiAlN, Mounting Style Screw, Rake Positive, ISO Number 16 ER 14 UN BMA, Insert Shape Triangle, Inscribed Circle 3/8, Toolholder 4PMY2

Grainger Item #	4JHE3
Price (ea.)	$27.55
Brand	CARMEX
Mfr. Model #	16 ER 14 UN BMA
UNSPSC #	23171618
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.01
Availability	Item ships within 4 business days from supplier
Catalog Page No.	3638
Country of Origin (Country of Origin is subject to change.)	Israel

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Carbide Threading Insert
Style		Laydown
ANSI Number		16 ER 14 UN BMA
Thread Profile		UN
Pitch		14 TPI
Thread Type		External
Cutting Direction		Right Hand
Insert Type		External Lay Down
Chip-Breaker		Top Rake
Workpiece Material		Stainless Steel and Super Alloys
Grade		BMA
No. of Edges		3
Insert Size		16
Coating		TiAlN
Mounting Style		Screw Held
Rake		Positive
ISO Number		16 ER 14 UN BMA
Insert Shape		Triangular
Inscribed Circle		3/8"
For Use With		Toolholder 4PMY2
