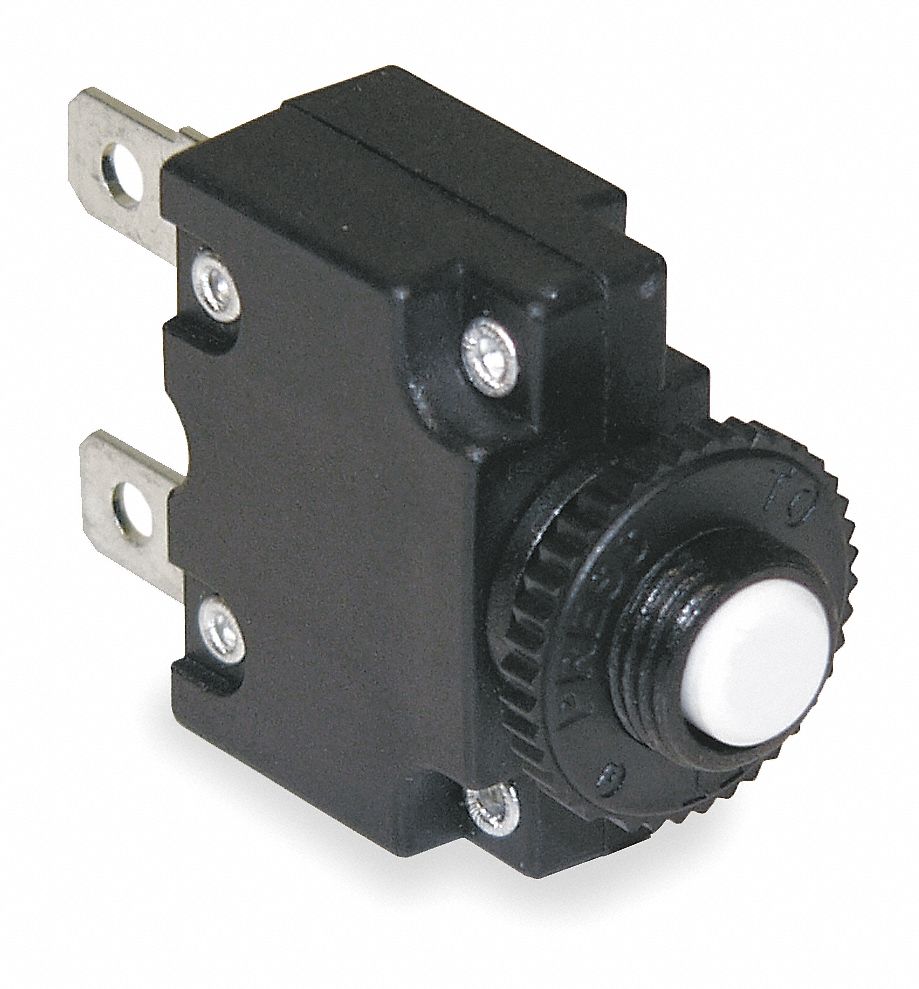

CARLING TECHNOLOGIES Breaker, Circuit, 5 Amp

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Thermal Circuit Breaker, Number of Poles 1, Amps 5, 125-250 AC, Frequency 50/60 Hz, Max Voltage 32VDC, Interrupt Rating 2500 Amps, Max Wire Size 14 AWG, Actuation Type White Pushbutton, Mounting 3/8 In Plastic Bushing with Threaded Plastic Collar, Mounting Hole 0.382 In, Riveted Half Shell, Length 1.154 In, Width 0.552 In, Depth 1.781 In, Terminal Connection 0.250 Stake On, Housing Color Black, UL/TUV/CSA/CE/ISO 8846, Ignition Protected Marine, Functionally Equivalent To ETA, Joemex, MPI

Grainger Item #	4VA62
Price (ea.)	$4.03
Brand	CARLING TECHNOLOGIES
Mfr. Model #	CMB-053-27G3N-W-A/05
UNSPSC #	39121601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.04
Availability	Typically in Stock
Catalog Page No.	291
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Circuit Breaker
Type		Collar Mount
Circuit Breaker Type		Thermal
Switch Type		Push Button
Number of Poles		1
Amps		5
Voltage		250
Max. DC Voltage (V)		32
AIR Rating		2500
Phase		1
Terminal Connection		1/4" Tab
Max. Wire Size (AWG)		14
Length (In.)		1.15
Width (In.)		0.55
Depth (In.)		1.78
Standards		UL, CSA,TUV
Mounting Type		3/8" Collar
