Hand Tools
>
Crimping Tools
>
Cable and Wire Crimping Tools

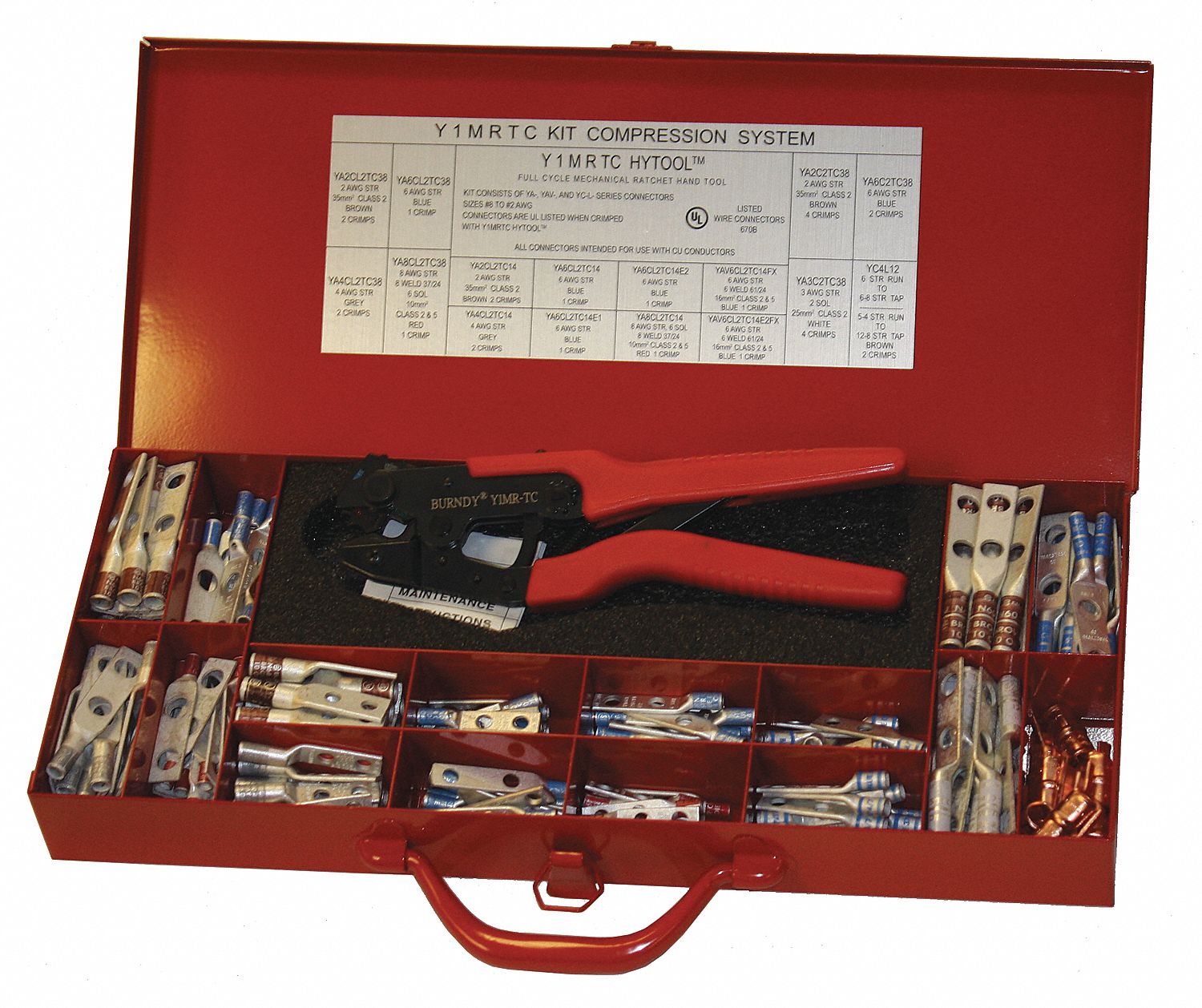

BURNDY Crimping Tool Die, 9 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Crimping Tool Die, Commercial, Ratchet, � Rotating die is color coded to match colorcoded connectors� Die index embossment allows permanentinspectability of installed connectors toinsure consistently reliable and dependableconnections.� Molded comfort grips reduce fatigueduring continuous use.� Ratchet mechanism assures a completecrimp every time.� Emergency release mechanism allows toolto be removed from connector in case ofmistaken die choice or to reposition tool., Tooling

Grainger Item #	22P160
Price (ea.)	$1,002.00
Brand	BURNDY
Mfr. Model #	Y1MRTCKIT
UNSPSC #	27112820
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	16.9
Availability	Typically in Stock
Catalog Page No.	529
Country of Origin (Country of Origin is subject to change.)	Taiwan
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Crimping Tool
Type		Commercial
Action		Manual
Crimping Force (Lbs.)		9000
Max. Crimping Force (Tons)		4.5
Length (In.)		9.88
Characteristics		Rotating die is color coded to match color coded connectors, Die index embossment allows permanent inspectability of installed connectors to insure consistently reliable and dependable connections, Ratchet mechanism assures a complete crimp every time, Emergency release mechanism allows tool to be removed from connector in case of mistaken die choice or to reposition tool
Application		Tooling
Function		Crimping
For Use With		Cu Lug and Splice Connectors# of CrimpsConnector Die Per BarrelCopper Catalog Index # LengthWire Size Types (Color) Std LongYA8C-# 8 AWG YS8C- 49Code & Flex YAV8C- (Red)1 2YSV8C-#6 AWG YA6CCodeYS6C- 7#6 AWG YAV6C- (Blue)1 2Code & Flex YSV6C-#4 AWG YA4CCodeYS4C- 8#4 AWG YAV4C- (Grey)2 4Code & Flex YSV4C-#3 AWG YA3C- 9#2 Sol. YS3C- (White)2 4#2 AWG YA2CCodeYS2C- 10#2 AWG YAV2C- (Brown)2 4Code & Flex YSV2C-#1 AWG YA1C- 11Code YS1C- (Green)2 4
Includes		Rachet tool, Metal carrying cost, Terminals and thin wall C taps
