BRIGGS & STRATTON Gasoline Engine, 5.5 lb.-ft., Gross Torque

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Gasoline Engine, Non-CARB Compliant, 3600 Engine RPM, Gross Torque 5.5 lb ft., Horizontal Shaft Orientation, Fuel Tank Capacity (Qt.) 2, Recoil Starter Type, Magnetron Ignition Type, N/A Low Oil Shut Down, 1 Cylinders, N/A, Y, Yes Muffler, Paper Pleated Air Cleaner Type, 796970, Pumps, Tampers, Log Splitters, Tillers, Compressors Application, Overall Height (In.) 12.6, Overall Width (In.) 13.53, Overall Depth (In.) 11, Shaft Length (In.) 2 27/64, Shaft Height (In.) 4.17, Shaft Dia. (In.) 0.75

Grainger Item #	12V817
Price (ea.)	$319.00
Brand	BRIGGS & STRATTON
Mfr. Model #	083132-1035-F1
UNSPSC #	26101503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	35.5
Availability	Typically in Stock
Catalog Page No.	1365
Country of Origin (Country of Origin is subject to change.)	China

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

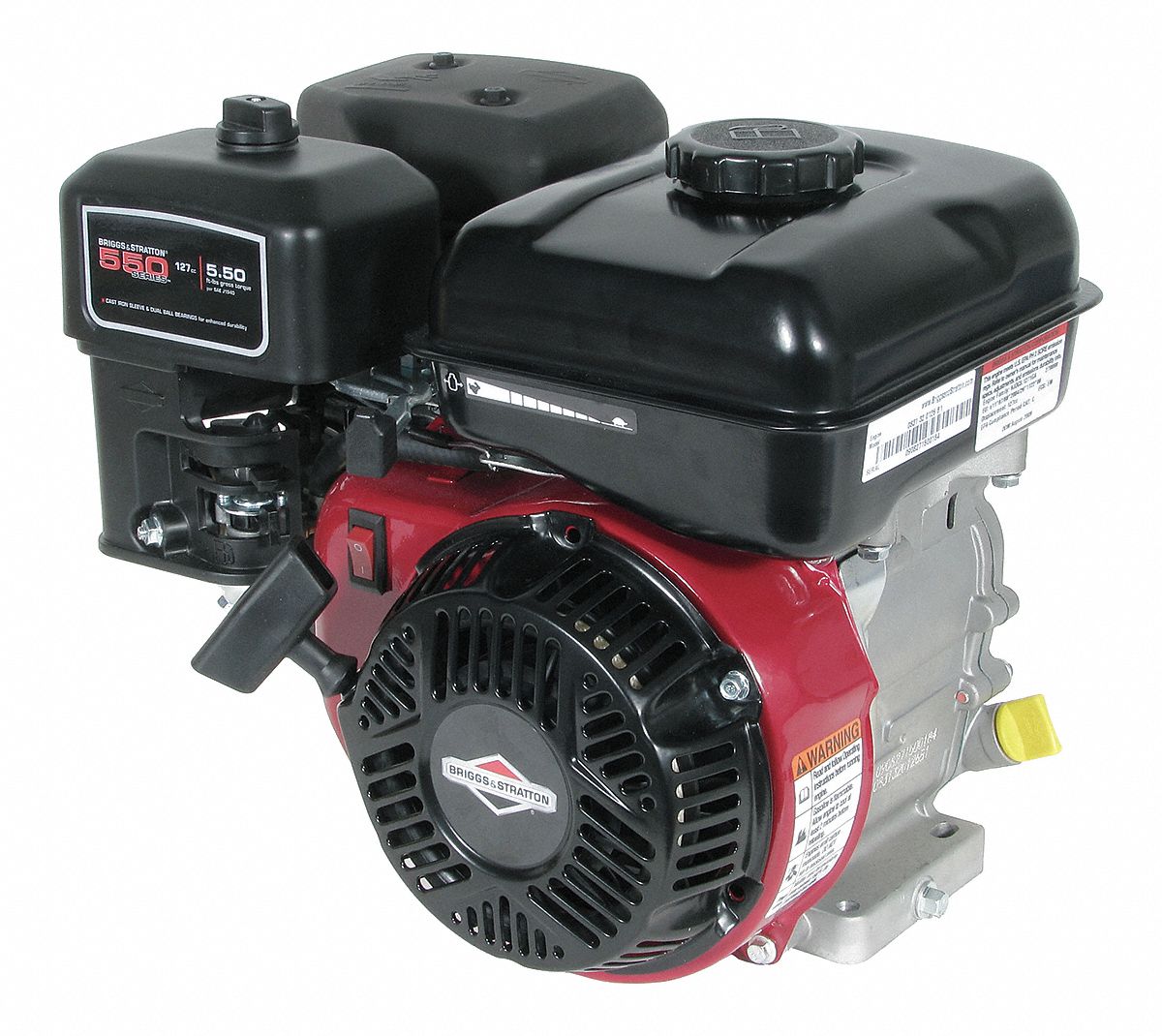

Gasoline Engine, 5.5 lb.-ft., Gross Torque

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Gasoline Engine
Type		Non-CARB Compliant
Gross Torque		5.5 lb.-ft.
Engine RPM		3600
Shaft Orientation		Horizontal
Fuel Tank Capacity (Qt.)		2
Starter Type		Recoil
Ignition Type		Magnetron
Low Oil Shut Down		N/A
Cylinders		1
Gear Box		N/A
Bearings		Y
Muffler		Yes
Air Cleaner Type		Paper Pleated
Air Filter		796970
Application		Pumps, Tampers,Log Splitters,Tillers, Compressors
Overall Height (In.)		12.6
Overall Width (In.)		13.53
Overall Depth (In.)		11
Shaft Length (In.)		2 27/64
Shaft Height (In.)		4.17
Shaft Dia. (In.)		0.75
Shaft Configuration		3/4" Dia, Keyway, Tapped 5/16-24
Shaft Key (In.)		Y
Series		Standard
Maintenance Frequency		50 Hrs
Features		Cast iron Cylinder, Float Carb, Ball Brg PTO, 2 yyear Consumer Warranty
Design		OHV
