BOSTON GEAR Speed Reducer, 17 RPM, 2.2 HP, Dia 1.5 In.

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Speed Reducer, C-Face, Right Angle, Input RPM 1750, Nominal Output RPM 17, Bore Dia. 1.50 In., NEMA/IEC Frame 140TC, Overhung Load 2160 Lb., Nominal Ratio 101:1, Max. Input HP 2.2, Max. Torque 7740 In.-Lbs., Number of Stages 3, Reversible Rotation, Any Position Mounting, Double Lip Oil Seal, Ball Bearings, Helical Bevel Gearing, Cast Iron Housing, Hollow Shaft Assembly

Grainger Item #	26X599
Price (ea.)	$2,238.00
Brand	BOSTON GEAR
Mfr. Model #	RF2063R-GRG08C
UNSPSC #	26111503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	125.0
Availability	Item ships within 16 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

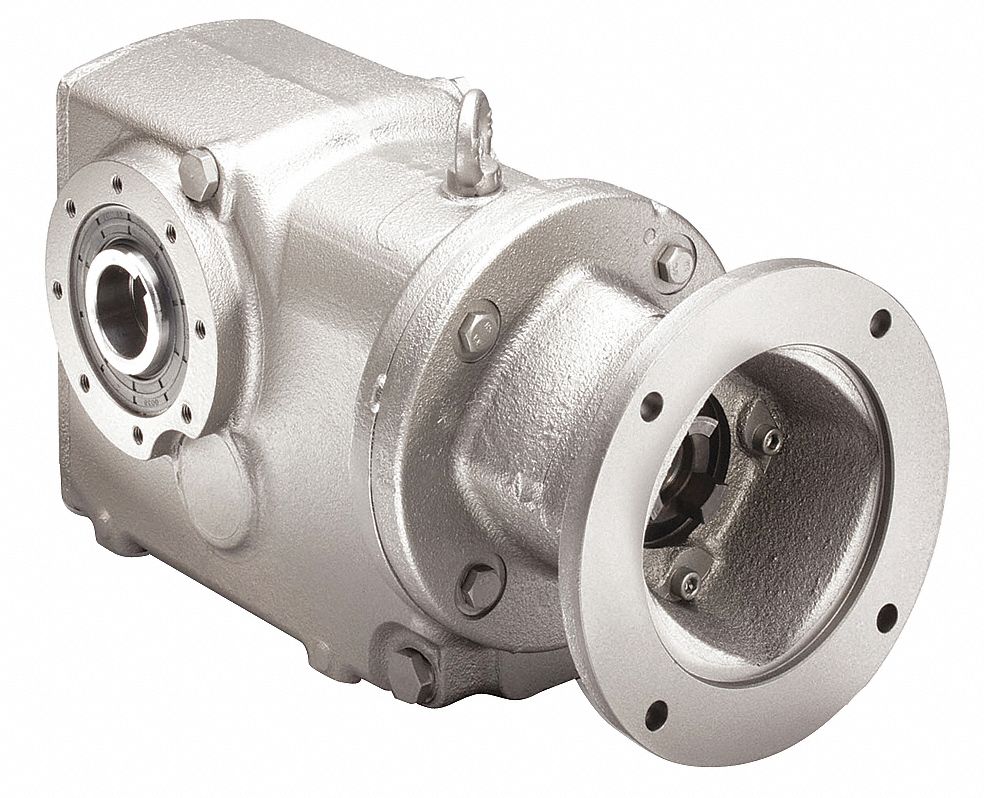

Speed Reducer, 17 RPM, 2.2 HP, Dia 1.5 In.

Enlarge Image

Item		Speed Reducer
Type		C-Face
Shaft Orientation		Right Angle
Duty		Standard
Input RPM		1750
Nominal Output RPM		17
Bore Dia. (In.)		1.500
NEMA/IEC Frame		140TC
Overhung Load (Lb.)		2160
Nominal Ratio		101:1
Max. Input HP		2.2
Max. Torque (In.-Lbs.)		7740
Number of Stages		3
Rotation		Reversible
Mounting		Any Position
Lubrication		Prelubed, Klubersynth UH1 6-460
Oil Seal		Double Lip
Bearings		Ball
Pinion		Hardened
Gearing		Helical Bevel
Housing		Cast Iron
Finish		Painted Gray
Shaft Assembly		Hollow
Overall Length (In.)		15.5
