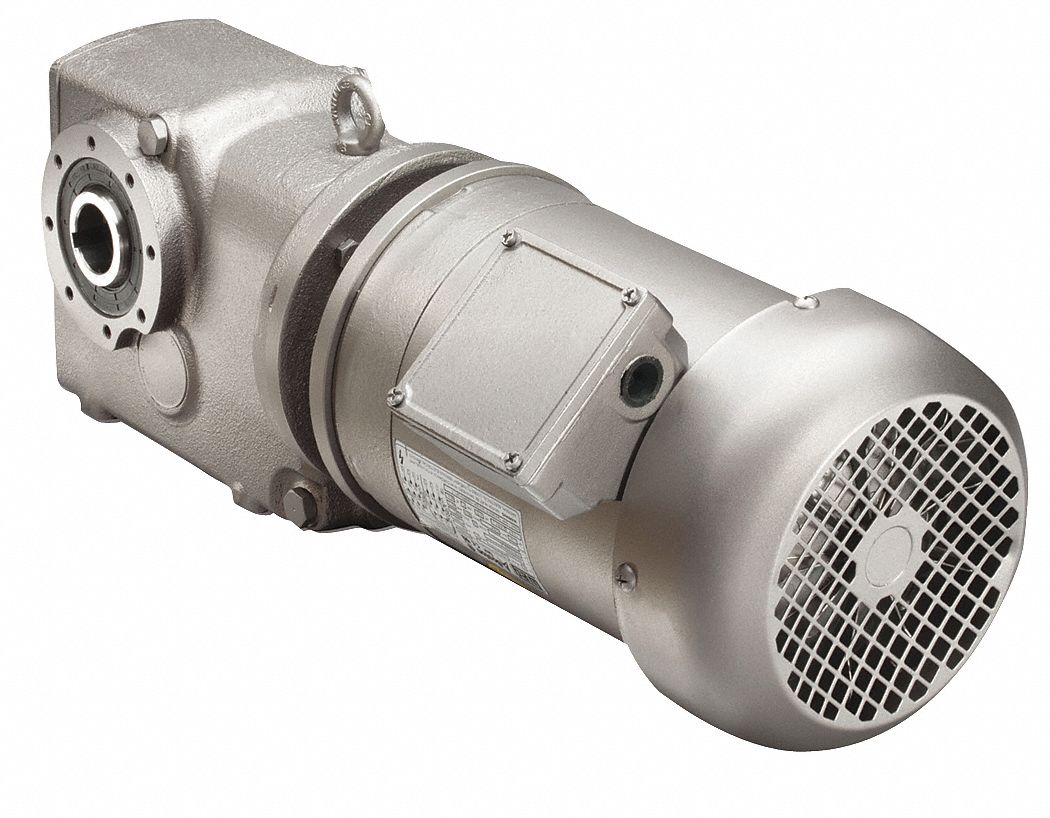

BOSTON GEAR AC Gearmotor, Dual Shaft, 58 RPM, 1 HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

AC Gearmotor, Right Angle, Voltage Rating 208-230/460, 3 Phase, 50/60 Hz, Dual Hollow Bore Output Shaft, Nameplate RPM 58, Full Load Torque (In.-Lbs.) 1010.0, Overhung Load (Lb.) 920, Input HP 1, Gear Ratio 30:1, Full Load Amps 3.25-3.10/1.55, Insulation Class F, TEFC Enclosure, No Thermal Protection, All Position MountingAcrylic-Based Paint Finish

Grainger Item #	23K103
Price (ea.)	$1,776.00
Brand	BOSTON GEAR
Mfr. Model #	G2033R-GRG04B
UNSPSC #	20101617
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	85.0
Availability	Item ships within 16 business days from supplier
Catalog Page No.	117
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		AC Gearmotor
Type		Right Angle
Voltage Rating		208-230/460
Phase		3
Hz		50/60
Shaft Orientation		Right Angle
Shaft		Dual Hollow Bore Output
Nameplate RPM		58
Full Load Torque (In.-Lbs.)		1010.0
Overhung Load (Lb.)		920
Input HP		1
Gear Ratio		30:1
Full Load Amps		3.25-3.10/1.55
Insulation Class		F
Enclosure		TEFC
Thermal Protection		No
Ambient (C)		40 Degrees
Rotation		Reversible
Mounting		All Position
Motor Frame		56C
Length Less Shaft (In.)		22
Shaft Dimensions (In.)		1/4
Keyway (In.)		1/4 x 4
Bearings		Ball
Lubrication		Klubersynth GH 6-460
Lubrication Quantity (Qt.)		Oil-Filled
Finish		Acrylic-Based Paint
Gear Case		Cast Iron
Gears		Hardened Ground Steel Helical and Bevel Gears
Seals		Lip
Approved		UL Recognized, CSA, CE
Agency Compliance		UL Recognized, CSA, CE
RPM Range		51 to 75
