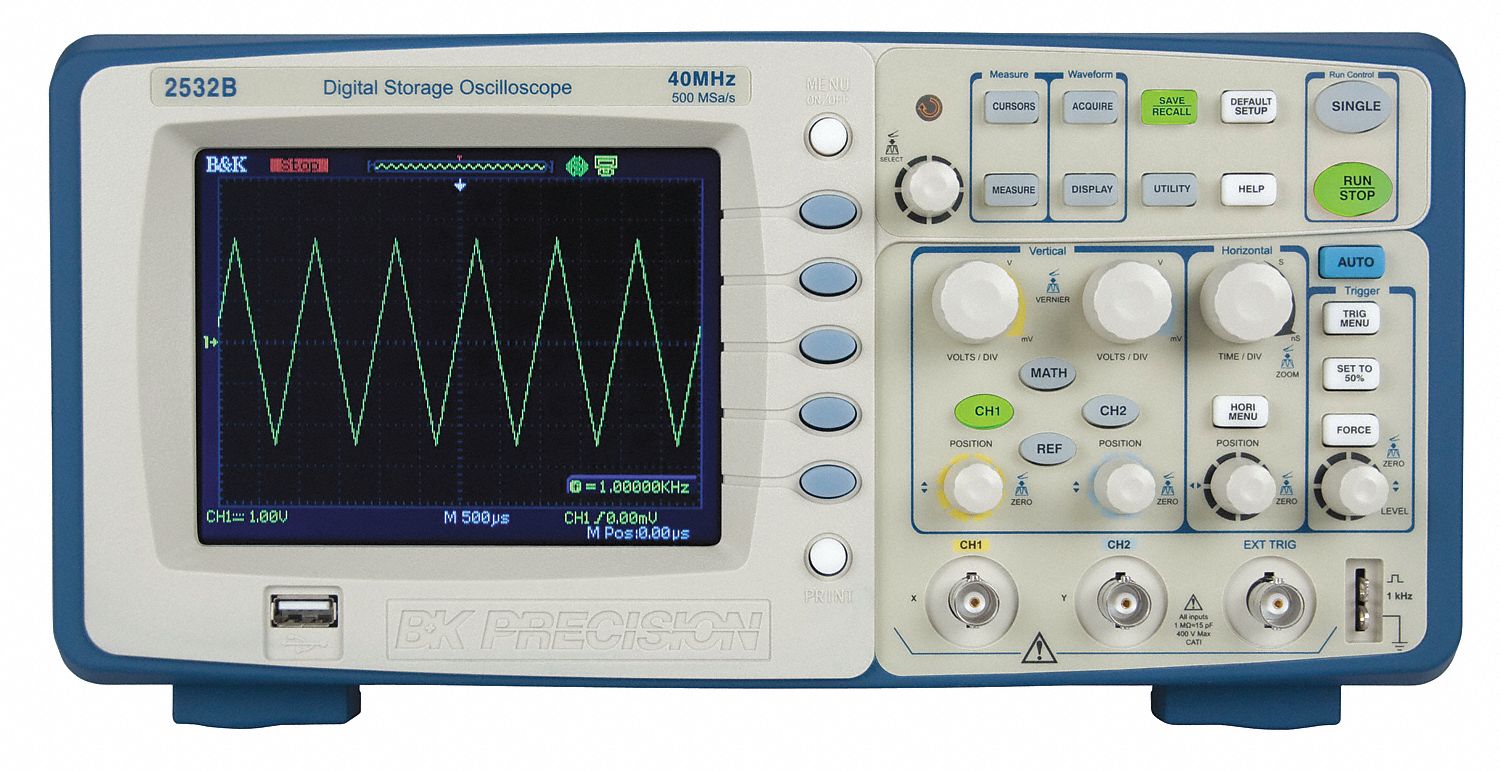

B&K PRECISION Digital Oscilloscope, 2 Channel, 40 MHz

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Digital Storage Oscilloscope, 2 Channel, Bandwidth (MHz) 40, Vertical Deflection 2 mV/Div to 10 V/Div (1-2-5 order), Rise Time Less Than 8.8 ns, Max. Voltage CAT I 400 VAC, Max./Min. Sweep Speed 10 ns/DIV - 50 s/DIV Scan mode: 100 ms/DIV - 50 s/DIV (1 - 2.5 - 5 Sequence), Trigger Sensitivity Int./Ext. Internal: 1 Division DC-10 MHz;1.5 Divisions 10 MHz - 25 MHz External: 200 mVpp DC-10 MHz;300 mVpp 10 MHz - 25 MHz, Vertical Operating Modes DC or AC

Grainger Item #	14K233
Price (ea.)	$713.00
Brand	B&K PRECISION
Mfr. Model #	2532B
UNSPSC #	41113638
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	8.8
Availability	Typically in Stock
Catalog Page No.	796
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Digital Storage Oscilloscope
Type		2 Channel
Bandwidth (MHz)		40
Vertical Deflection		2 mV/Div to 10 V/Div (1-2-5 order)
Rise Time		Less Than 8.8 ns
Max. Voltage		CAT I 400 VAC
Max./Min. Sweep Speed		10 ns/DIV - 50 s/DIV Scan mode: 100 ms/DIV - 50 s/DIV (1 - 2.5 - 5 Sequence)
Trigger Sensitivity Int./Ext.		Internal: 1 Division DC-10 MHz;1.5 Divisions 10 MHz - 25 MHz External: 200 mVpp DC-10 MHz;300 mVpp 10 MHz - 25 MHz
Vertical Operating Modes		DC or AC
Vertical Deflection Accuracy		+/-3% from 10 mV/Div to 10V/Div in fixed gain ranges, +/-4% from 2 mV/Div, 5V/Div and variable gain ranges
Sweep Speed Accuracy		100 PPM
Sweep Magnification		2 mV-100 mV: +/-2 V 102 mV - 5 V: +/-40 V
Triggering Mode		Auto, Normal, Single
Triggering Source		CH1, CH2, Ext, Ext/5, AC Line
Display		Color 5.7" TFT LCD
Digital Storage Bandwidth		40 MHz
Sampling Rate		500 MSa/s (single channel), 250 Msa/s (2 channels interleaved)
Horizontal Resolution		10 ns/DIV - 50 s/DIV
Vertical Resolution		8 Bit
Memory Size		32,000 Points (single channel), 16,000 Points (2 channels interleaved)
Real Time Bandwidth (MHz)		40 MHz
Sweep Rate Real/Storage		10 ns/DIV - 50 s/DIVScan mode: 100 ms/DIV -50 s/DIV (1 - 2.5 - 5sequence)
Features		32 measurements,USB Device and RS232 Ports,12 languages
Includes		Power Cord, (2) 10:1 Passive Probe Sets,USB Interface Cable, Easyscope Software CD and Operating Instructions
Manufacturers Warranty Length		3 Years
