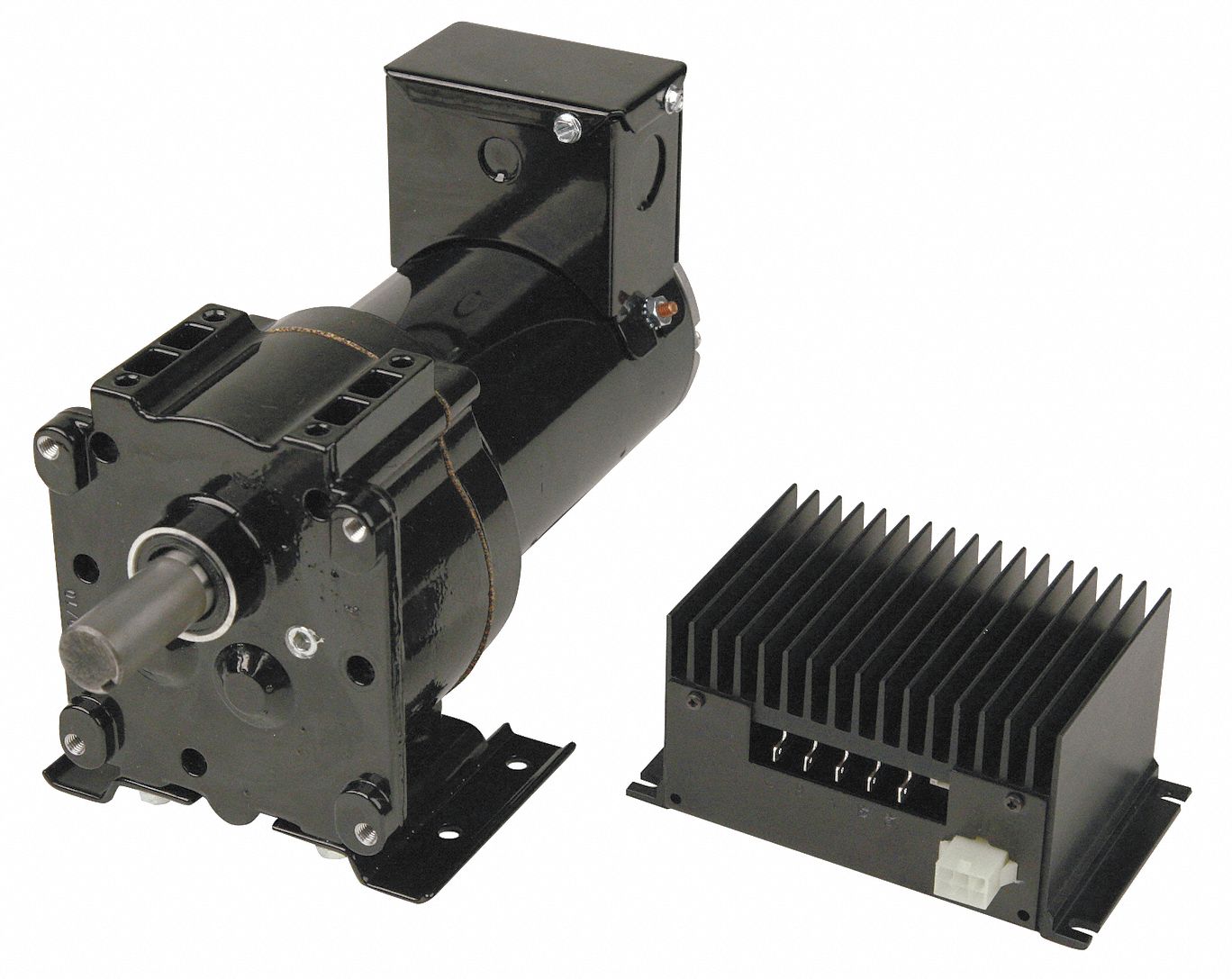

BISON DC Gearmotor, Brushless, 500 RPM, 24VDC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

DC Gearmotor, Brushless, Voltage Rating 24VDCSingle Shaft, Nameplate RPM 500, Full Load Torque (In.-Lbs.) 25, Overhung Load (Lb.) 170, Input HP 1/6, Gear Ratio 5:1, Full Load Amps 9, Insulation Class F, TENV Enclosure, None Thermal Protection, All Position Mounting, Motor Type Brushless, Powder Coat Finish, Aluminum Die Cast Housing

Grainger Item #	6VEP1
Price (ea.)	$1,111.00
Brand	BISON
Mfr. Model #	012-200-9005W
UNSPSC #	20101617
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	13.9
Availability	Typically in Stock
Catalog Page No.	119
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		DC Gearmotor
Type		Brushless
Voltage Rating		24VDC
Shaft Orientation		Parallel
Reversible Shaft Output		Yes
Shaft		Single
Nameplate RPM		500
Full Load Torque (In.-Lbs.)		25
Overhung Load (Lb.)		170
Input HP		1/6
Gear Ratio		5:1
Full Load Amps		9
Insulation Class		F
Enclosure		TENV
Thermal Protection		None
Ambient (C)		40
Rotation		Reversible
Mounting		All Position
Motor Type		Brushless
Length Less Shaft (In.)		8-11/16
Shaft Dimensions (In.)		3/4 x 1 5/8
Keyway (In.)		3/16 Square x 1 Long
Bearings		Needle Bearing On Case, Ball On Motor
Lubrication		Oil Filled
Finish		Powder Coat
Housing		Aluminum Die Cast
Gear Case		Aluminum Die Cast
Gears		Hardened Steel, 1st Stage Helical, Subsequent Stages Spur
Seals		Lip Type On Input And Output Shaft
Agency Compliance		UL Recognized
RPM Range		251 to 500
