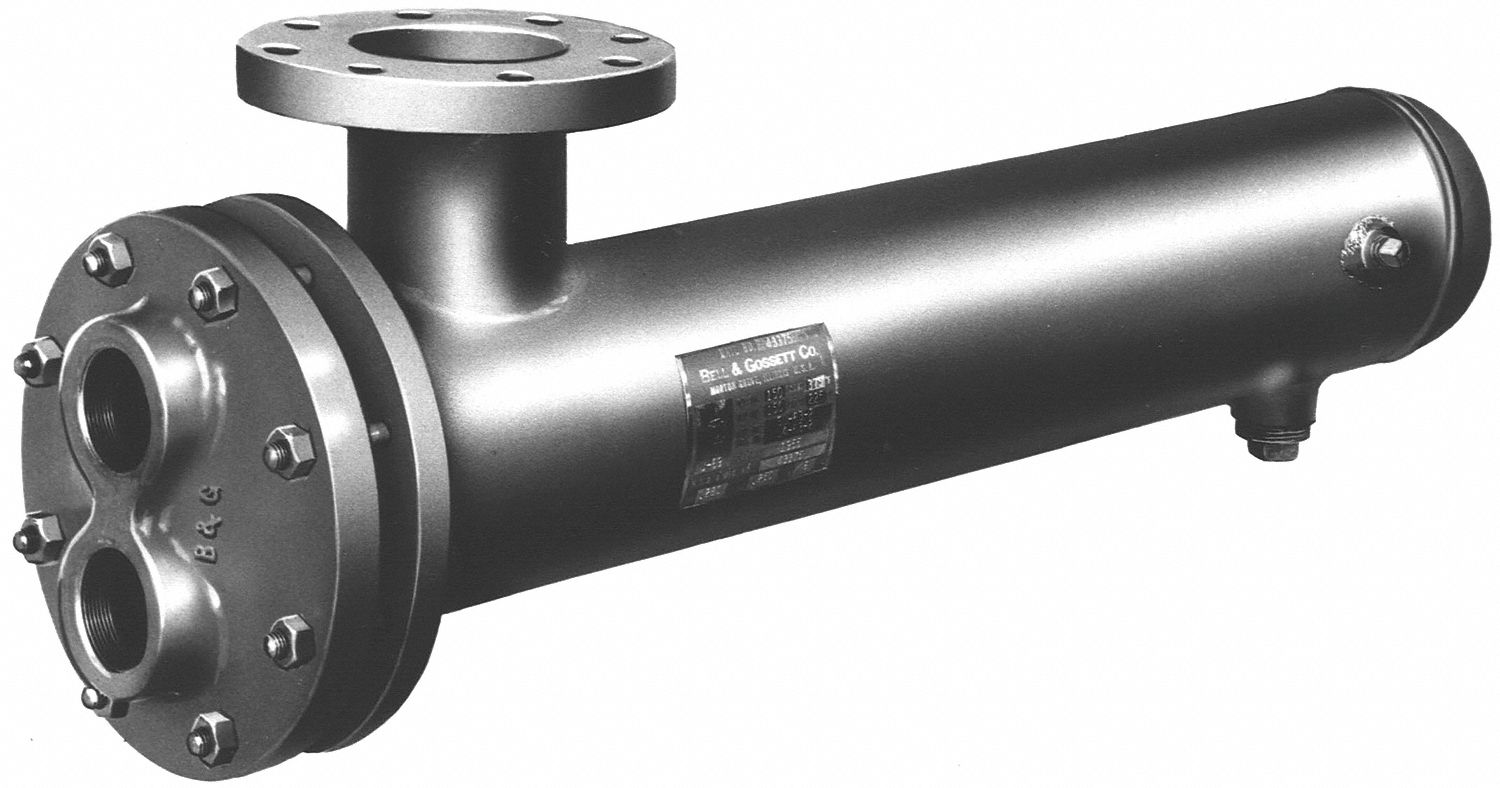

BELL & GOSSETT Heat Exchanger, Shell And Tube, 110 GPM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Heat Exchanger, Shell and Tube, Max. BtuH 3, 300, 000 Water to Water Application, 150 psig Pressure, Temp. 375 F, Construction Material Steel Construction, Copper Tubes, Cast Iron Bonnet, Connection Shell 4 In Flange Inlet, 1 In NPT Outlet, Tube 3 In NPT, Capacity 110 GPM, Height 11 In., Length 65.375 In., Width 12.5 In.

Grainger Item #	5TNY2
Price (ea.)	$5,570.00
Brand	BELL & GOSSETT
Mfr. Model #	BY526008060001
UNSPSC #	40101802
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	220.0
Availability	Typically in Stock
Catalog Page No.	4594
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Heat Exchanger
Type		Shell and Tube
Max. BtuH (Water to Water Application)		3,300,000
Pressure		150 psig
Temp. (F)		375
Construction Material		Steel Construction, Copper Tubes, Cast Iron Bonnet
Connection		Shell 4" Flange Inlet, 1" NPT Outlet, Tube 3" NPT
Capacity (GPM)		110
Height (In.)		11
Length (In.)		65.375
Width (In.)		12.5
Weight (Lbs.)		220
Agency Compliance		ASME Sec VIII, Div 1; National Board
