BELL & GOSSETT Circulator Pump, 1/2 HP, Bronze Impeller

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Circulator Pump, 3-Piece, 1/2 HP, 1 Phase, Voltage 115/230, 5.2/2.6 Amps, Inlet/Outlet Flanged, Housing Material Bronze, Max. Temp. 225 F, Max. Working Pressure 125 PSI, Shut-Off 23 Ft., 1750 RPM, Impeller Material Bronze, Thermal Protection, Mechanical Seal Carbon/Ceramic, Additional Features Bell & Gossett Motor, Warranty Length 3 Years

Grainger Item #	5JPF1
Price (ea.)	$3,313.00
Brand	BELL & GOSSETT
Mfr. Model #	PDB-35S
UNSPSC #	40151504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	74.0
Availability	Typically in Stock
Catalog Page No.	4125
Country of Origin (Country of Origin is subject to change.)	USA
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

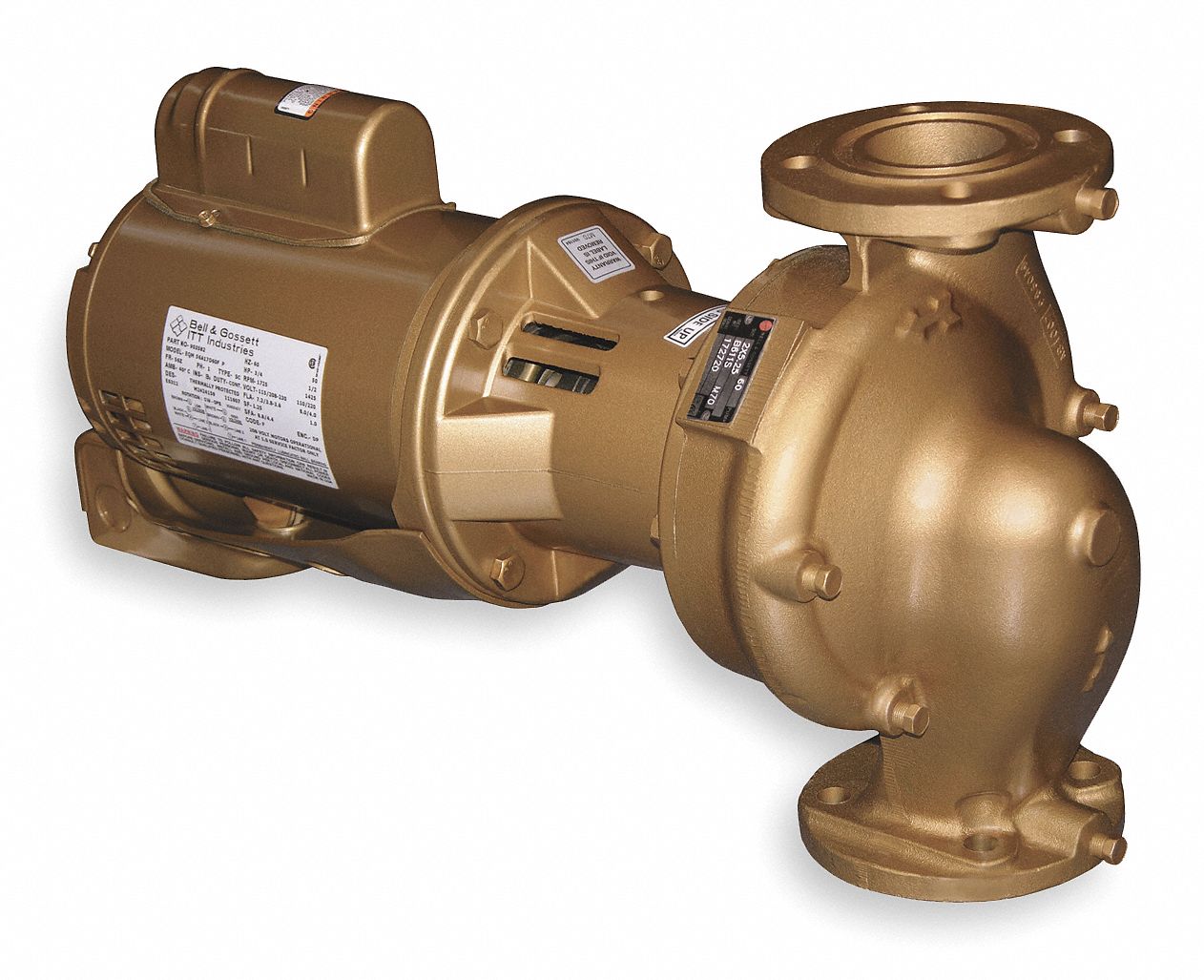

Circulator Pump, 1/2 HP, Bronze Impeller

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Circulator Pump
Type		Open Loop
Style		3-Piece Oil-Lubricated Booster
Speed		1
HP		1/2
Voltage		115/230
Phase		1
Amps		5.2/2.6
Inlet/Outlet		Flanged
Housing Material		Bronze
Face to Face Dimension (In.)		12
Max. Temp. (F)		225
Max. Working Pressure (PSI)		125
Flange/Union Included		Yes
Shut-Off (Ft.)		23
RPM		1750
Impeller Material		Bronze
Shaft Material		Steel
Thermal Protection		Yes
GPM of Water @ 8 Ft. of Head		115
GPM of Water @ 9 Ft. of Head		110
GPM of Water @ 10 Ft. of Head		106
GPM of Water @ 11 Ft. of Head		102.5
GPM of Water @ 12 Ft. of Head		97
GPM of Water @ 13 Ft. of Head		92.5
GPM of Water @ 15 Ft. of Head		82
GPM of Water @ 18 Ft. of Head		60
GPM of Water @ 20 Ft. of Head		42.5
Length (In.)		20-1/4
Width (In.)		12
Max. GPM @ Head (Ft.)		115 @ 8
Best Efficiency GPM @ Head (Ft.)		80 @ 15
Min. GPM @ Head (Ft.)		42 @ 20
Bearing Type		Bronze Sleeve
Mechanical Seal		Carbon/Ceramic
Construction		Bronze
Additional Features		Bell & Gossett Motor
Manufacturers Warranty Length		3 Years
Compliance		Certified For Use In Potable Water Applications in CA and VT
