BELL & GOSSETT Circulator Pump, 1/2 HP, Bronze Impeller

| Write a Review
| Read all Reviews(1)
| Read all Ask & Answer

Circulator Pump, 3-Piece, 1/2 HP, 1 Phase, Voltage 115/230, Inlet/Outlet Flanged, Housing Material Bronze, Max. Temp. 225 F, Max. Working Pressure 175 PSI, Shut-Off 24 Ft., 1750 RPM, Impeller Material Bronze, Thermal Protection, Mechanical Seal Carbon/Ceramic, Warranty Length 3 Years

Grainger Item #	5JPE4
Price (ea.)	$2,666.00
Brand	BELL & GOSSETT
Mfr. Model #	B608S
UNSPSC #	40151504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	54.0
Availability	Typically in Stock
Catalog Page No.	4125
Country of Origin (Country of Origin is subject to change.)	USA
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

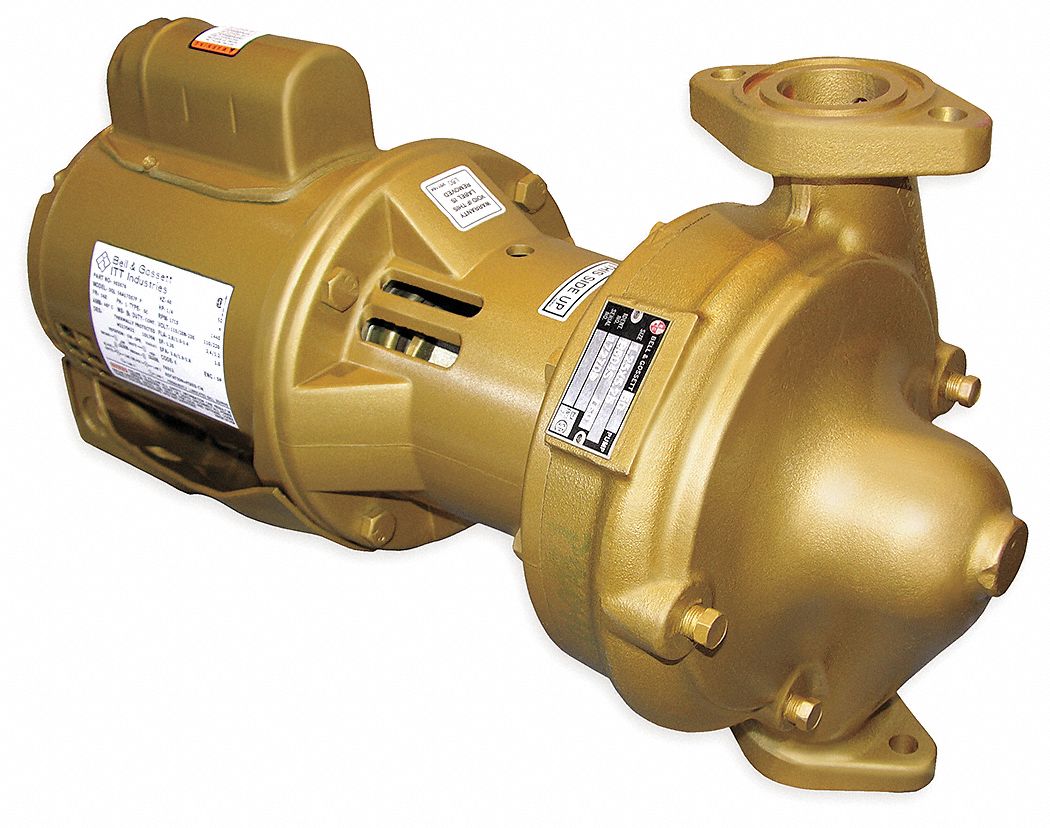

Circulator Pump, 1/2 HP, Bronze Impeller

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Circulator Pump
Type		Open Loop
Series		60
Style		3-Piece Oil-Lubricated Booster
Speed		1
HP		1/2
Voltage		115/230
Phase		1
Inlet/Outlet		1-1/2" Flanged
Housing Material		Bronze
Face to Face Dimension (In.)		11-1/2
Max. Temp. (F)		225
Max. Working Pressure (PSI)		175
Flange/Union Included		Yes
Shut-Off (Ft.)		24
RPM		1750
Impeller Material		Bronze
Shaft Material		Steel
Thermal Protection		Yes
GPM of Water @ 7 Ft. of Head		96
GPM of Water @ 8 Ft. of Head		95
GPM of Water @ 9 Ft. of Head		93
GPM of Water @ 10 Ft. of Head		90
GPM of Water @ 11 Ft. of Head		88
GPM of Water @ 12 Ft. of Head		85
GPM of Water @ 13 Ft. of Head		80
GPM of Water @ 15 Ft. of Head		75
GPM of Water @ 18 Ft. of Head		63
GPM of Water @ 20 Ft. of Head		55
GPM of Water @ 25 Ft. of Head		20
Length (In.)		21-7/8
Width (In.)		11-1/2
Max. GPM @ Head (Ft.)		80 @ 13
Best Efficiency GPM @ Head (Ft.)		52 @ 20
Min. GPM @ Head (Ft.)		15 @ 24
Bearing Type		Bronze Sleeve
Mechanical Seal		Carbon/Ceramic
Construction		Bronze
Manufacturers Warranty Length		3 Years
Compliance		Certified For Use In Potable Water Applications in CA and VT
