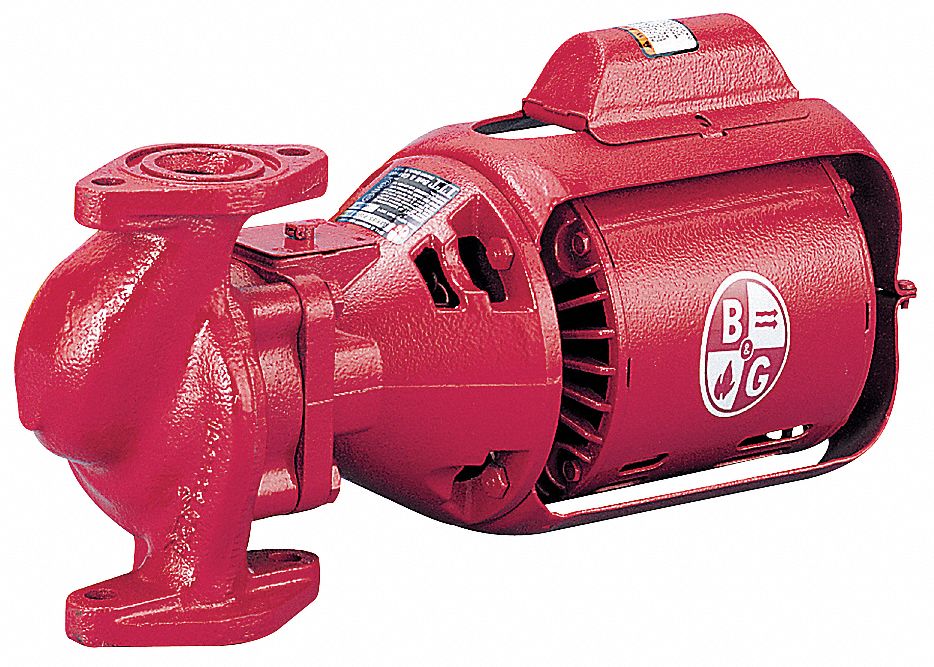

Circulator Pump, 3 Piece Oil Lubricated Booster, 1/6 HP, 1 Phase, Voltage 115, 1.90 Amps, Inlet/Outlet Flanged, Housing Material Cast Iron, Max. Temp. 225 F, Max. Working Pressure 125 PSI, Shut-Off 18 Ft., Auto Thermal Protection
  • Grainger Item #4RC91
    Price (ea.)$888.00
    BrandBELL & GOSSETT
    Mfr. Model #PR
    UNSPSC #40151504
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)31.45
    Availability Typically in Stock
    Catalog Page No.4125
    Country of Origin
    (Country of Origin is subject to change.)
    USA
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemCirculator Pump
TypeClosed Loop
SeriesPR
Style3-Piece Oil-Lubricated Booster
Speed1
HP1/6
Voltage115
Phase1
Amps1.90
Inlet/OutletFlanged
Housing MaterialCast Iron
Face to Face Dimension (In.)8-1/2
Max. Temp. (F)225
Max. Working Pressure (PSI)125
Flange/Union IncludedNo
Shut-Off (Ft.)18
Thermal ProtectionAuto
GPM of Water @ 1 Ft. of Head29
GPM of Water @ 2 Ft. of Head28
GPM of Water @ 3 Ft. of Head27.5
GPM of Water @ 4 Ft. of Head27
GPM of Water @ 5 Ft. of Head26
GPM of Water @ 6 Ft. of Head26
GPM of Water @ 7 Ft. of Head25
GPM of Water @ 8 Ft. of Head24
GPM of Water @ 9 Ft. of Head23
GPM of Water @ 10 Ft. of Head23
GPM of Water @ 11 Ft. of Head20
GPM of Water @ 12 Ft. of Head18
GPM of Water @ 13 Ft. of Head17
GPM of Water @ 15 Ft. of Head13
Length (In.)15-1/4
Width (In.)7-1/16
Feet of Head @ 5 GPM17
Max. GPM @ Head (Ft.)29 @ 1
Best Efficiency GPM @ Head (Ft.)18 @ 12
Feet of Head @ 6 GPM17
Feet of Head @ 7 GPM16
Min. GPM @ Head (Ft.)13 @ 15
Feet of Head @ 8 GPM16
Bearing TypeSleeve
Feet of Head @ 9 GPM16
Feet of Head @ 10 GPM16
Feet of Head @ 12 GPM15
Feet of Head @ 15 GPM14
Feet of Head @ 18 GPM13
Feet of Head @ 20 GPM12
Feet of Head @ 25 GPM6
