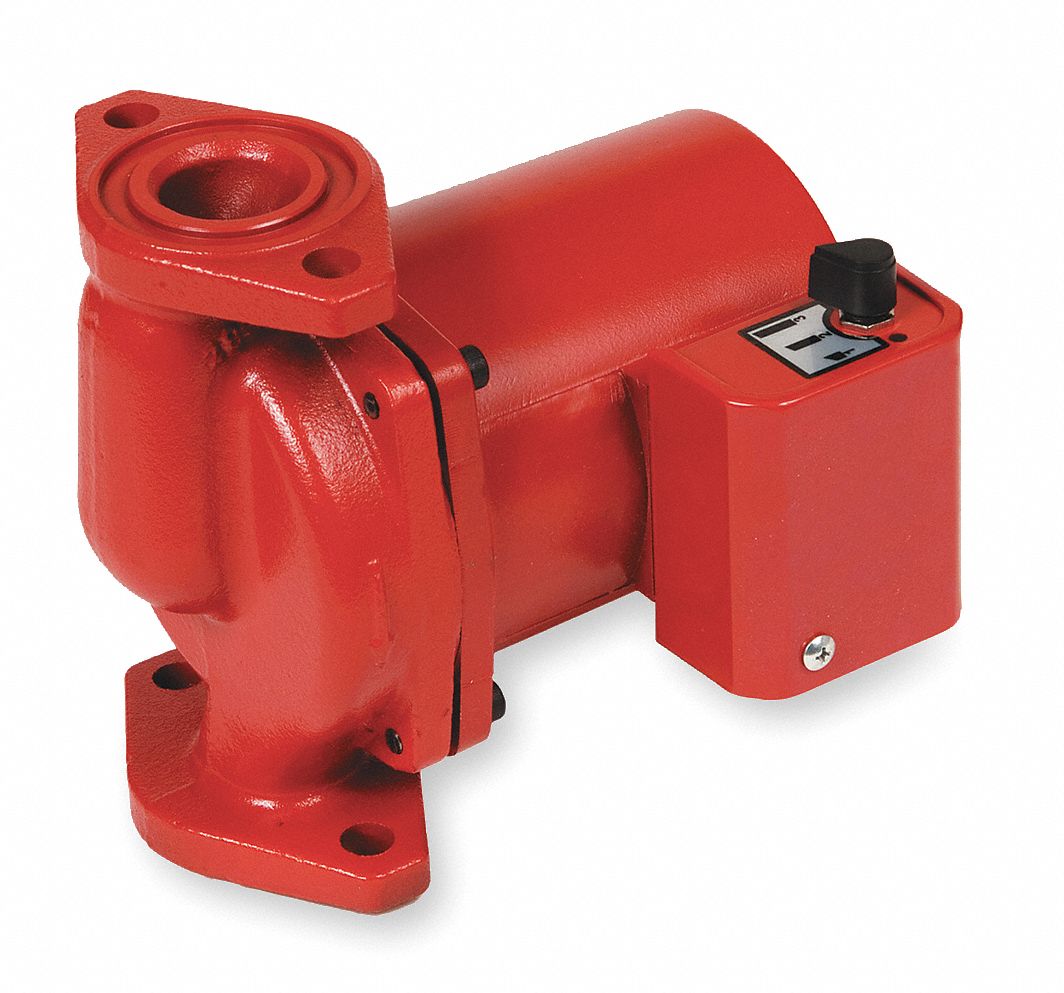

BELL & GOSSETT CirculatorPump, CI, 2.3 Amp

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Circulator Pump, Closed Loop System, 1/6 HP, 1 Phase, Voltage 115, 2.3 Amps, Inlet/Outlet Flanged, Housing Material Cast Iron, Max. Temp. 225 F, Max. Working Pressure 150 PSI, Shut-Off 32.5 Ft., 3200 RPM, Impeller Material Noryl, Auto Thermal Protection, Warranty Length 3 Years

Grainger Item #	3NVG4
Price (ea.)	$444.75
Brand	BELL & GOSSETT
Mfr. Model #	NRF-36
UNSPSC #	40151504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	13.48
Availability	Typically in Stock
Catalog Page No.	4126
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $89.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Circulator Pump
Type		Closed Loop
Series		NRF
Style		Wet Rotor, Maintenance-Free
Speed		3
HP		1/6
Voltage		115
Phase		1
Amps		2.3
Inlet/Outlet		Flanged
Housing Material		Cast Iron
Face to Face Dimension (In.)		6-3/8
Max. Temp. (F)		225
Max. Working Pressure (PSI)		150
Flange/Union Included		No
Shut-Off (Ft.)		32.5
RPM		3200
Impeller Material		Noryl
Shaft Material		Ceramic
Thermal Protection		Auto
GPM of Water @ 1 Ft. of Head		35.75
GPM of Water @ 2 Ft. of Head		35.5
GPM of Water @ 3 Ft. of Head		35
GPM of Water @ 4 Ft. of Head		33.5
GPM of Water @ 5 Ft. of Head		33
GPM of Water @ 6 Ft. of Head		32
GPM of Water @ 7 Ft. of Head		31
GPM of Water @ 8 Ft. of Head		30.5
GPM of Water @ 9 Ft. of Head		30
GPM of Water @ 10 Ft. of Head		28
GPM of Water @ 11 Ft. of Head		27
GPM of Water @ 12 Ft. of Head		26
GPM of Water @ 13 Ft. of Head		25
GPM of Water @ 15 Ft. of Head		24
GPM of Water @ 18 Ft. of Head		20.5
GPM of Water @ 20 Ft. of Head		18
GPM of Water @ 25 Ft. of Head		13
GPM of Water @ 30 Ft. of Head		6
Length (In.)		6-7/8
Width (In.)		5-3/4
Feet of Head @ 3 GPM		31.5
Feet of Head @ 4 GPM		31
Feet of Head @ 5 GPM		30.5
Max. GPM @ Head (Ft.)		35.75 @ 1
Best Efficiency GPM @ Head (Ft.)		20 @ 18.5
Feet of Head @ 6 GPM		30
Feet of Head @ 7 GPM		29
Min. GPM @ Head (Ft.)		13 @ 25
Feet of Head @ 8 GPM		28.5
Drive Type		Direct
Bearing Type		Sleeve
Feet of Head @ 9 GPM		27.5
Feet of Head @ 10 GPM		27
Feet of Head @ 12 GPM		26
Feet of Head @ 15 GPM		23
Feet of Head @ 18 GPM		21
Feet of Head @ 20 GPM		18.5
Watts		270
Feet of Head @ 25 GPM		14.5
Feet of Head @ 30 GPM		8.5
Manufacturers Warranty Length		3 Years
