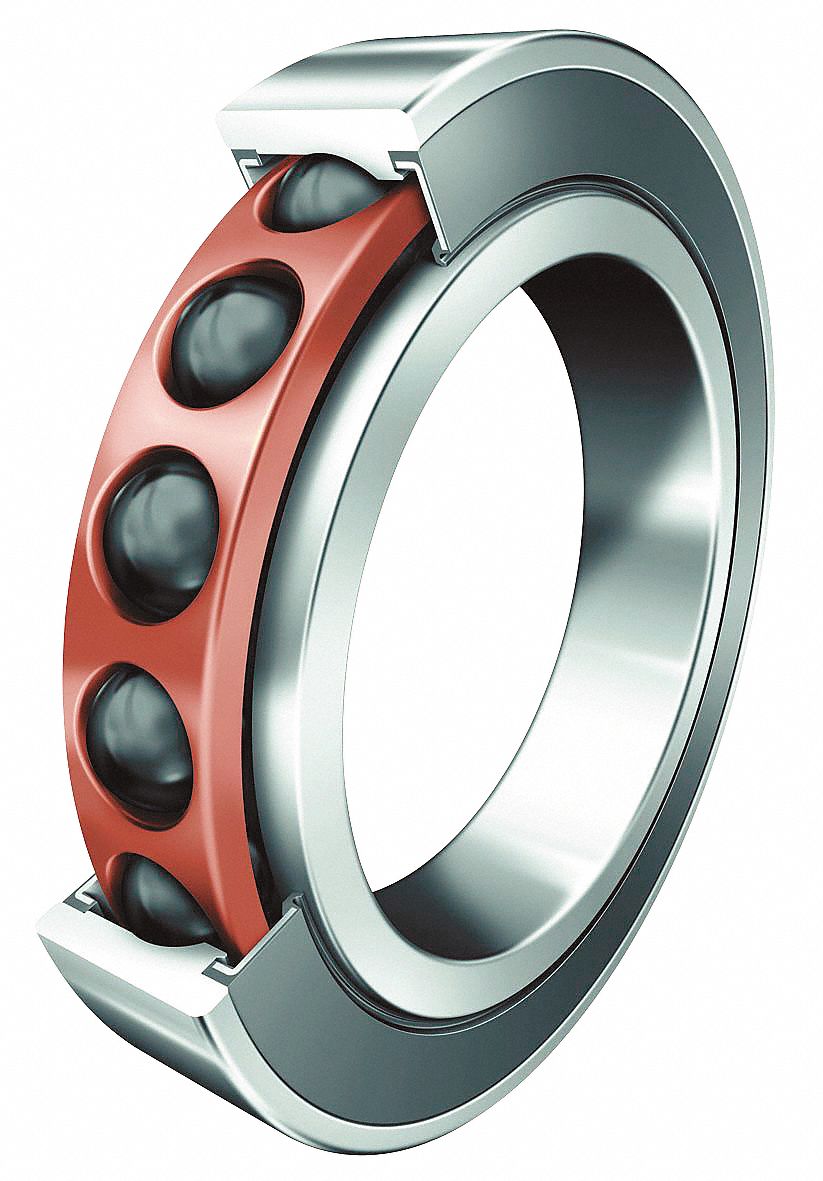

BARDEN Angular Sealed Ceramic Duplex BRG, 80mm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Angular Contact Ball Bearings, Sealed Ceramic Ball Duplex Spindle Bearings, Contact Angle 15 Degrees, Bore Dia 80 mm, Outside Dia 125 mm, Width 44 mm, Standard Preload 185 N, Max RPM 14, 000, Dynamic Load Capacity 44, 000 N, Static Load Capacity 40, 500 N, ABEC Tolerance 7, Temp Range - 22 - 212 F, Cage Material High Performance Plastic, Seal Material Nitrile Rubber, Grease Lubrication

Grainger Item #	4ZDP6
Price (ea.)	$910.42
Brand	BARDEN
Mfr. Model #	C116HCRRDUL
UNSPSC #	31171504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	3.45
Availability	Clearance - limited quantity available
Catalog Page No.	207
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Angular Contact Ball Bearings
Type		Sealed Ceramic Ball Duplex Spindle Bearings
Contact Angle (Degree)		15
Bore Dia.		80mm
Outside Dia.		125mm
Width		44mm
Standard Preload (N)		185
Max. RPM		14,000
Dynamic Load Capacity (N)		44,000
Static Load Capacity (N)		40,500
ABEC Tolerance		7
Temp. Range (F)		- 22 - 212
Cage Material		High Performance Plastic
Seal Material		Nitrile Rubber
Lubrication		Grease
