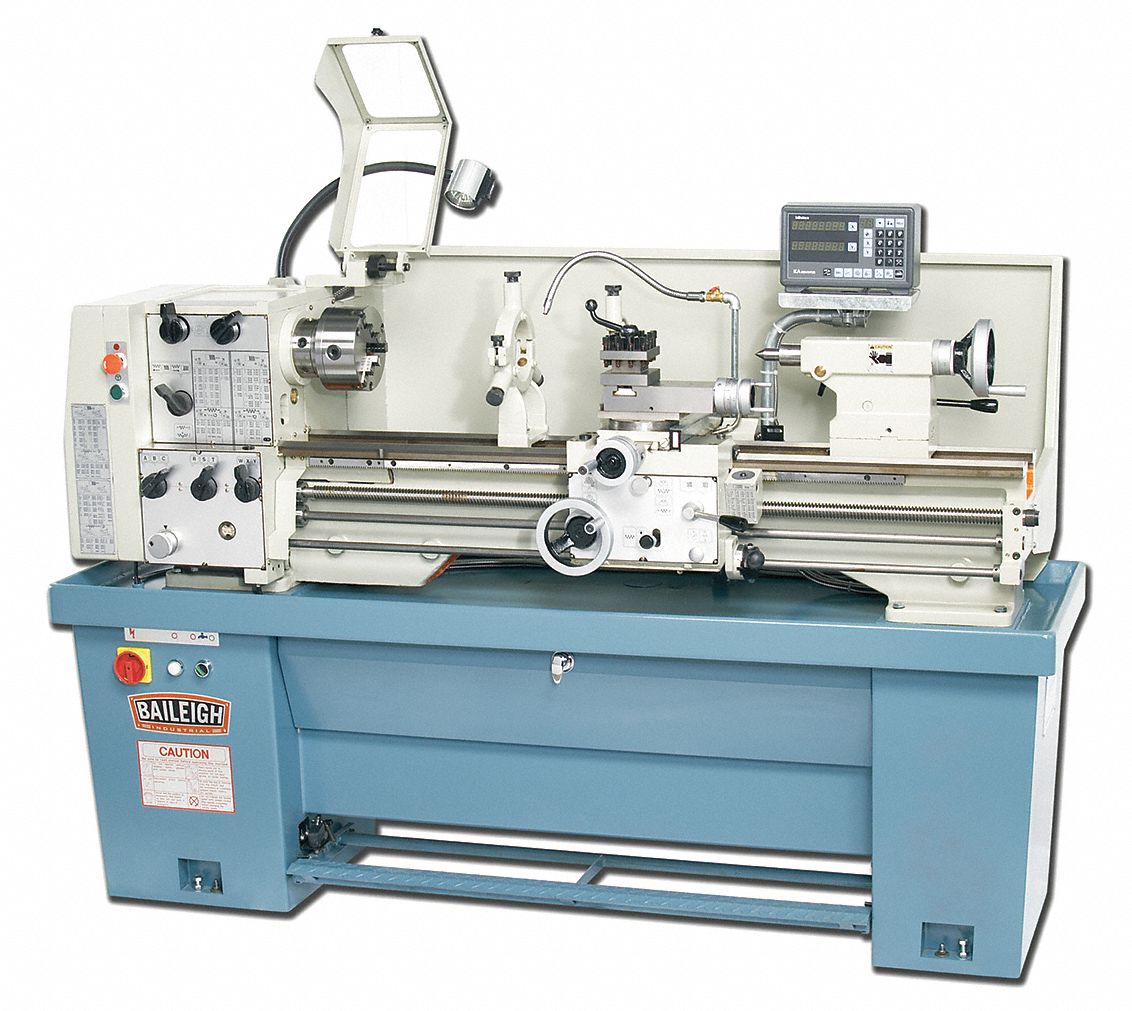

BAILEIGH INDUSTRIAL Engine Lathe, 14x40 In., 3HP, 3Phase

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Engine Lathe, 3 Motor HP, 3 Phase, 220 Voltage, 60 Hz, Spindle Taper Morse #5, Number of Spindle Speeds 12, Tailstock Taper 3MT, Number of Threads (In.) 34, Number of Threads (mm) 39, Cross Feed Rates 16, Longitudinal Feed Rates 0.001 - 0.040, Overall Length 82 In., Overall Width 33 In., Overall Height 61 In., Digital Readout, Halogen Work Light, Splash Guard

Grainger Item #	15V798
Price (ea.)	$19,432.00
Brand	BAILEIGH INDUSTRIAL
Mfr. Model #	PL-1440
UNSPSC #	23171606
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1288.0
Availability	Item ships within 6 business days from supplier
Catalog Page No.	971
Country of Origin (Country of Origin is subject to change.)	Taiwan

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $2,999.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Engine Lathe
Motor HP		3
Phase		3
Voltage		220
Hz		60
Swing Over Bed (In.)		14
Distance Between Centers (In.)		40
Swing Over Cross Slide (In.)		9.25
Swing In Gap (In.)		20
Gap Length (In.)		4.5
Spindle Taper		Morse #5
Spindle Bore (In.)		1.535
Number of Spindle Speeds		12
Spindle Speed (RPM)		40-2500
Bed Width (In.)		8"
Cross Travel (In.)		7-1/2
Compound Travel (In.)		3-5/8
Carriage Travel (In.)		37
Tailstock Taper		3MT
Tailstock Travel (In.)		4-1/3
Number of Threads (In.)		34
Thread Range (In.)		2-56
Number of Threads (mm)		39
Thread Range (mm)		.2-14
Cross Feed Rates		16
Longitudinal Feed Rates		0.001 - 0.040
Overall Length		82"
Overall Width		33"
Overall Height		61"
Features		Digital Readout, Halogen Work Light, Splash Guard
