HVAC and Refrigeration
>
Cooling Fans and Accessories
>
Air Circulators

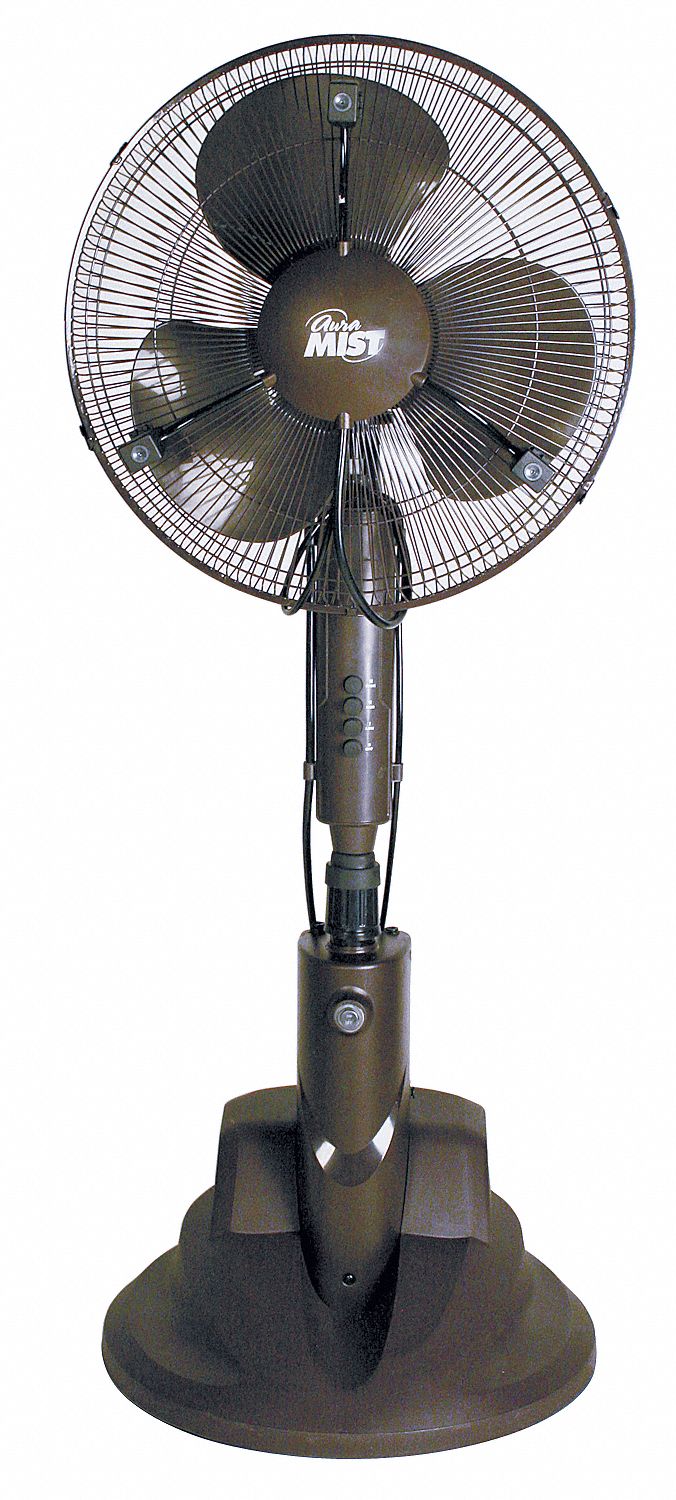

AURAMIST Misting Air Circ, 16 In, 2120 cfm, 120V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Misting Air Circulator, Blade Dia. 16 In., Stationary, Oscillating, Speeds 3, Voltage 120V, 1 Phase, CFM High 2120, CFM Low 1413Motor HP 1/4, Motor RPM 1225/1100/975, Operating Amps 1.7, Mounting Location Pedestal, Fan RPM 1225/1100/975, Commercial, Assembled Unassembled, CFM Medium 1765, CFM/Watt 96, Outside Dia. 18 In., Includes 3 Adjustable Rate Dry Misting Nozzles, Adjustable Height From 37 to 50 In., Dark Brown Finish, 2 ft. Long Water Hose Connection

Grainger Item #	13F719
Price (ea.)	$339.50
Brand	AURAMIST
Mfr. Model #	AMMF16R-1
UNSPSC #	40101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	25.0
Availability	Item ships within 6 business days from supplier
Catalog Page No.	4442
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Misting Air Circulator
Blade Dia.		16"
Mobile/Stationary		Stationary
Oscillating/Non-Oscillating		Oscillating
Speeds		3
Voltage		120V
Phase		1
CFM High		2120
CFM Low		1413
Motor HP		1/4
Motor RPM		1225/1100/975
Operating Amps		1.7
Mounting Location		Pedestal
Fan RPM		1225/1100/975
Environmental Applications		Commercial
Assembled		Unassembled
CFM Medium		1765
CFM/Watt		96
Air Velocity (FPM) @ 10 Ft.		330
Sound Level		60dBA
Max. Ambient Temp.		110 Degrees F
Hz		60
Watts		200
Motor Type		1 Phase
Drive Type		Direct
Motor Insulation		Class E
Thermal Protection		Yes
Bearing Type		Ball
Outside Dia.		18"
Height		50"
Width		18"
Max. Depth		18"
Cord Length		6 ft.
Number of Blades		3
Blade Material		PP Copolymer
Shaft Dia.		5/16"
Housing Material		Steel
Guard Material		Steel
Wire Guard Finish		Black
Application		Indoor/Outdoor
Standards		ETL Listed, Conforms to UL 507
Includes		3 Adjustable Rate Dry Misting Nozzles, Adjustable Height From 37 to 50", Dark Brown Finish, 2 ft. Long Water Hose Connection
