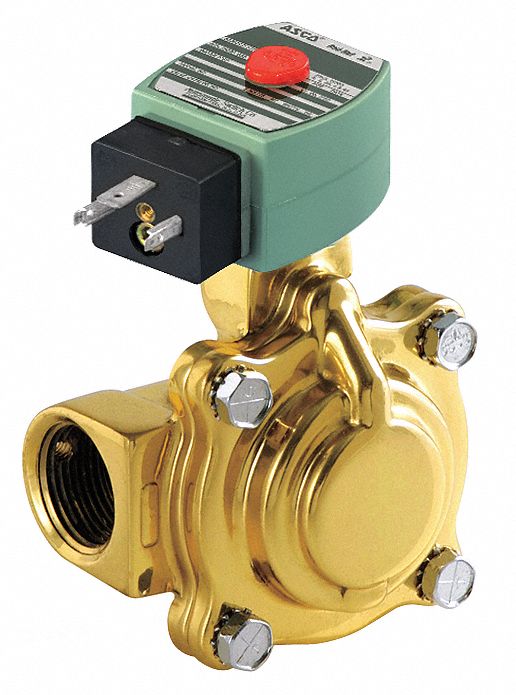

ASCO Solenoid Valve, 1 In, Orifice 1 In, Brass

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Solenoid Valve, DIN Connection, Number of Ways 2, Configuration Normally Closed, Cv Flow Factor 13, 1 Pipe Size (In.), 1 Orifice Dia. (In.), PSI Differential Min. 0, 180 Max. Fluid Temp. (F), Voltage 110/120VAC, Coil Insulation Class F, Coil Enclosure NEMA Type 4, 4X, Body Material Brass, Gasket Material NBR, Construction Reference No. 41D, Length 33/4 In., Width 31/4 In., Height 51/8 In.

Grainger Item #	4ELF5
Price (ea.)	$363.50
Brand	ASCO
Mfr. Model #	SC8210G054
UNSPSC #	40141605
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	4.37
Availability	Typically in Stock
Catalog Page No.	4376
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

Solenoid Valve, 1 In, Orifice 1 In, Brass

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Solenoid Valve
Type		DIN Connection
Number of Ways		2
Configuration		Normally Closed
Cv Flow Factor		13
Pipe Size (In.)		1
Orifice Dia. (In.)		1
PSI Differential Min.		0
Max. Operating Pressure Differential Water		125
Max. Operating Pressure Differential Air/Inert Gas		150
Max. Operating Pressure Differential Light Oil		125
Coefficient of Volume		13.00
Coil Key		B
Max. Fluid Temp. (F)		180
Voltage		110/120VAC
Watts		16.1
Coil Insulation Class		F
Coil Enclosure		NEMA Type 4, 4X
Body Material		Brass
Gasket Material		NBR
Construction Reference No.		41D
Length		3-3/4"
Width		3-1/4"
Center Line Pipe Center Size (In.)		4-1/3
Height		5-1/8"
Agency Compliance		CSA
