Angle Body Piston Valves

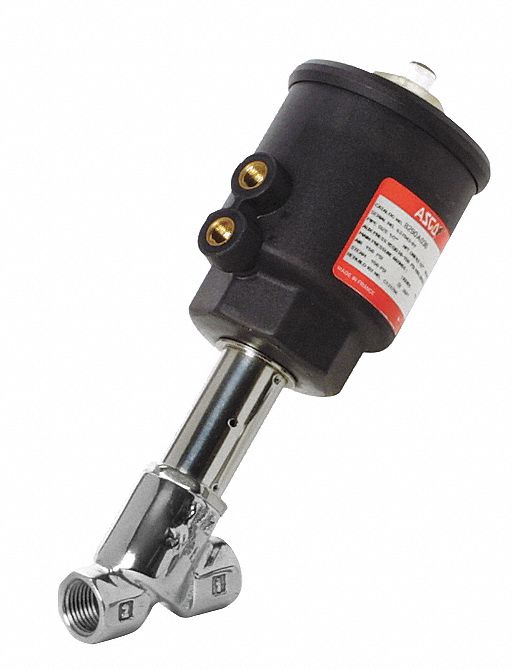

ASCO Angle Body Piston Valve, SS, NC, 3/4 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Angle Body Piston Valve, Body Material Stainless Steel, 2-Way/2-Position, Normally Closed, Pipe Size 3/4 In., Orifice Dia. 3/4 In., Coefficient of Volume 11, Min. Operating Pressure Differential 0 psi, Max. Operating Pressure Differential Water 240 psi, Max. Operating Pressure Differential Steam 150 psi, Min. Pilot Pressure 60 psi, Max. Pilot Pressure 150 psi, Operator Size 63 mm, Ambient Temp. Range 15 Degrees to 140 Degrees F, Stem Material 431 Stainless Steel, Disc Material 304L Stainless St

Grainger Item #	4ELY9
Price (ea.)	$428.25
Brand	ASCO
Mfr. Model #	8290B048
UNSPSC #	40141630
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	3.15
Availability	Typically in Stock
Catalog Page No.	4385
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Angle Body Piston Valve
Body Material		Stainless Steel
Valve Design		2-Way/2-Position
Valve Configuration		Normally Closed
Pipe Size		3/4"
Orifice Dia.		3/4"
Coefficient of Volume		11
Min. Operating Pressure Differential		0 psi
Max. Operating Pressure Differential Water		240 psi
Max. Operating Pressure Differential Steam		150 psi
Min. Pilot Pressure		60 psi
Max. Pilot Pressure		150 psi
Operator Size		63 mm
Ambient Temp. Range		15 Degrees to 140 Degrees F
Stem Material		431 Stainless Steel
Disc Material		304L Stainless Steel
Center Line Pipe Center Size		6-7/8"
Max. Fluid Temp.		366 Degrees F
Viscosity		2,700 SSU
Overall Length		2-9/10"
Overall Width		6-4/5"
Overall Height		7-5/16"
Actuator		Pilot Solenoid Valve, Not Included

Other Popular Terms for this Product

• Solenoid Valves (1422)

• Two-Way Solenoid Valves (717)

• Piston Solenoid Valves (28)
