Electrical
>
Switches
>
Hazardous Location Tumbler Switches

APPLETON ELECTRIC Tumbler Switch, EDS Series, 1 Gang, 3-Way

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Tumbler Switch, Front Operated, Series EDS, Number of Gangs 1, Switch Type 3-Way, Amps 20, Voltage 120 to 277VAC, HP 1 HP @ 120VAC, 2 HP @ 240VAC, Hub Style Dead-End, Hub Size 1/2 In., Mounting Mounting Holes, Legend Markings On/Off, Special Features Corrosion Resistant, Pad Lockable in the On or Off Position, NEMA Rating 7C, 7D, 9E, 9F, 9G, Standards UL 894, UL 1203

Grainger Item #	13U957
Price (ea.)	$529.50
Brand	APPLETON ELECTRIC
Mfr. Model #	EDS1130
UNSPSC #	39121104
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	9.01
Availability	Item ships within 7 business days from supplier
Catalog Page No.	569
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

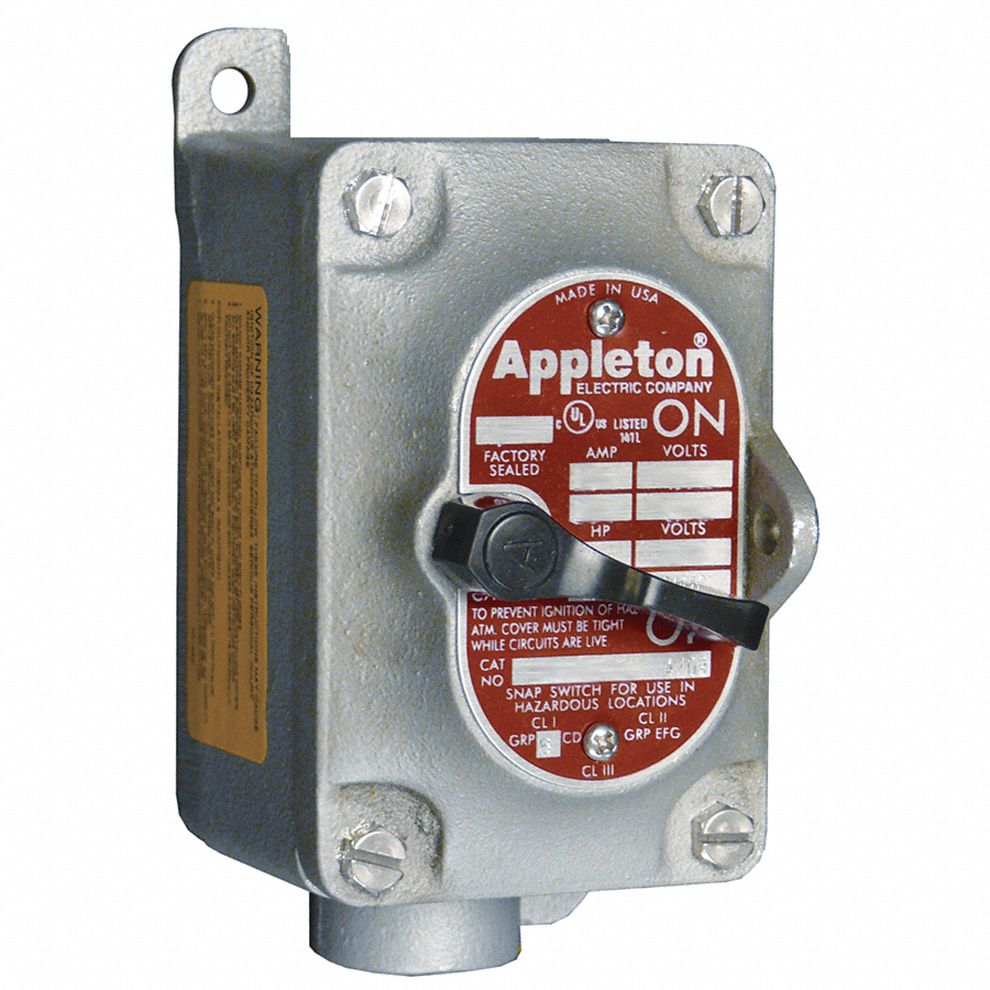

Tumbler Switch, EDS Series, 1 Gang, 3-Way

Enlarge Image

Item		Tumbler Switch
Type of Operator		Front Operated
Series		EDS
Number of Gangs		1
Switch Type		3-Way
Amps		20
Voltage		120 to 277VAC
HP		1 HP @ 120VAC, 2 HP @ 240VAC
Hub Style		Dead-End
Hub Size		1/2"
Mounting		Mounting Holes
Legend Markings		On/Off
Special Features		Corrosion Resistant, Pad Lockable in the On or Off Position
NEMA Rating		7C, 7D, 9E, 9F, 9G
Standards		UL 894, UL 1203
Safety Rating		Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
Height		4.63"
Width		3"
Depth		4.69"
Body Material		Malleable Iron
