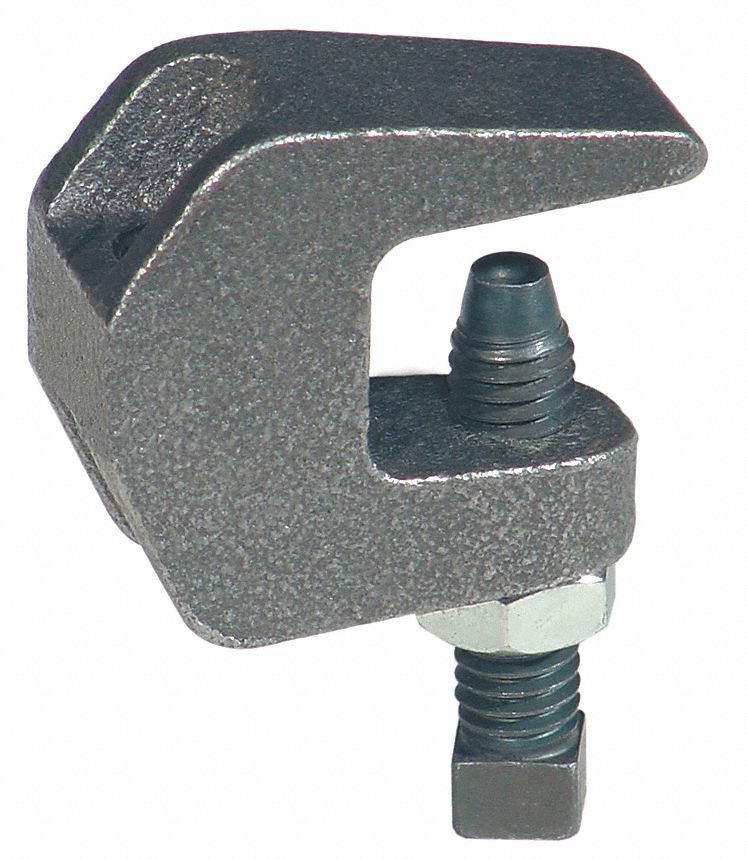

ANVIL Beam Clamp, Rod Sz 3/8 In, Ductile Iron

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Beam Clamp, C-Type, Rod Size 3/8 In, Max Load 500 At Top, 250 At Bottom Lb, Material of Construction Ductile Iron, Length 1 9/16 In, For Use Under Roof Install w/Bar Joist Type Const Or For Attachment To The Top Or Bottom Flange Of Structural Shapes. Where The Vertical Hanger Rod Is Req To Be Offset From The Edge Of The Flange. The Thickness Of Joist Or Flange Does Not Exceed 3/4 In, Includes Set Screw And Locknut

Grainger Item #	4HYE5
Price (ea.)	$2.11
Brand	ANVIL
Mfr. Model #	0500009063
UNSPSC #	31162905
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.31
Availability	Typically in Stock
Catalog Page No.	4293
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Beam Clamp
Type		C-Type
Rod Size		3/8"
Max. Load (Lb.)		500 at Top, 250 at Bottom
Material of Construction		Ductile Iron
Length (In.)		1-9/16
Description/Special Features		For Use Under Roof Install w/Bar Joist Type Const Or For Attachment To The Top Or Bottom Flange Of Structural Shapes. Where The Vertical Hanger Rod Is Req To Be Offset From The Edge Of The Flange. The Thickness Of Joist Or Flange Does Not Exceed 3/4"
Includes		Set Screw And Locknut
Standards		A-A-1192A (Type 19 & 23), WW-H-171-E (Type 23), ANSI/MSS SP-69, and MSS SP-58 (Type 19 & 23). UL, ULC Listed and FM Approved.
