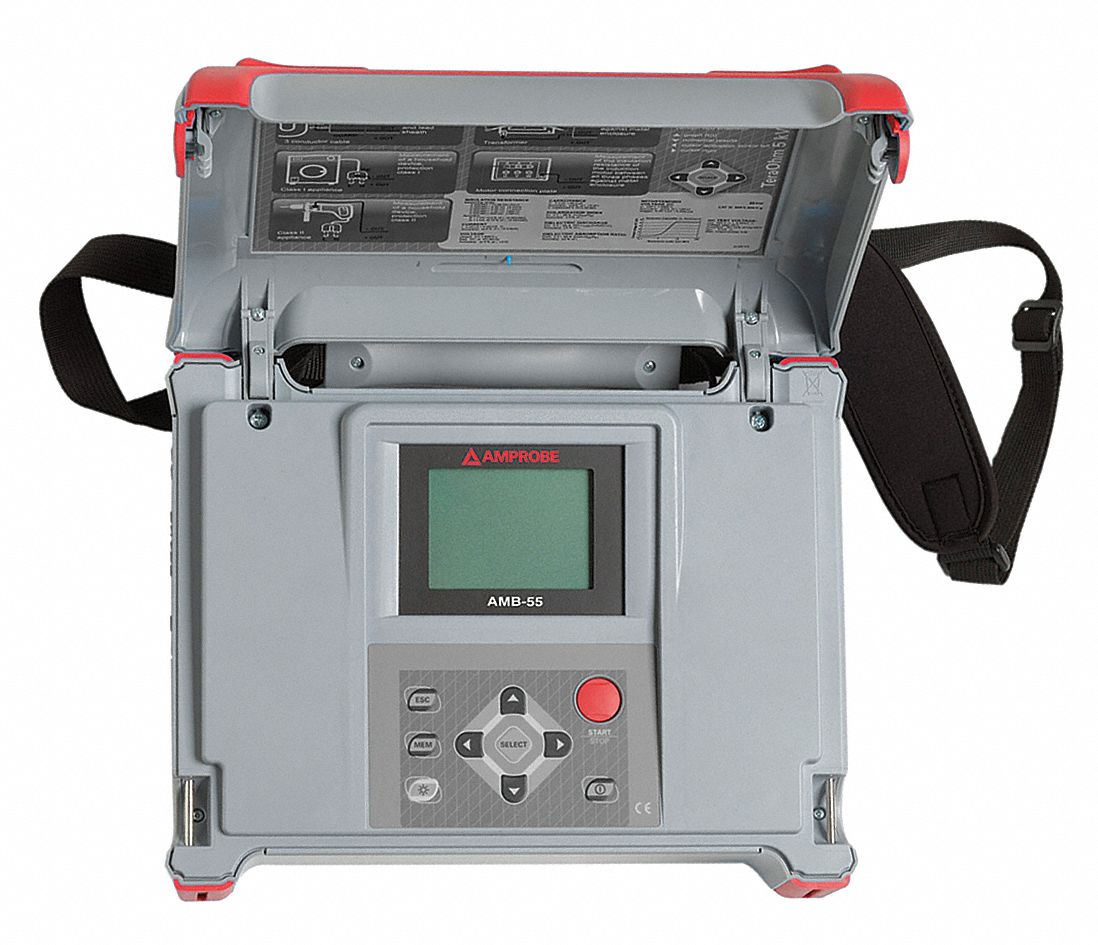

AMPROBE AC and Battery Megohmmeter, 5000VDC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

AC and Battery Megohmmeter, Output Test Voltage 250 to 5000VDC, Insulation Resistance Range 10T OhmsCapacitance Range 0 to 99.9, 100 to 999 nF and 1 to 50 uF, Display LCD, Accuracy +/-(5 Percent Reading + 3 Digits) Below 1T Ohms, +/-(15 Percent Reading + 3 Digit) - 1T Ohms and AboveSafety Rating CAT IV 600V, Leakage Current Range 0 to 9.99, 10.0 to 99.9, 100 to 999nA, 1 to 9.99, 10.0 to 99.9, 100 to 999uA, 1 to 5.5mA, Data Logging 1000 Data Points, Interface RS-232, Auto Ranging Yes

Grainger Item #	6NZF7
Price (ea.)	$2,848.00
Brand	AMPROBE
Mfr. Model #	AMB-55
UNSPSC #	41113628
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	10.95
Availability	Typically in Stock
Catalog Page No.	783
Country of Origin (Country of Origin is subject to change.)	Slovenia

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		AC and Battery Megohmmeter
Output Test Voltage		250 to 5000VDC
Insulation Resistance Range		10T Ohms
Capacitance Range		0 to 99.9, 100 to 999 nF and 1 to 50 uF
Display		LCD
Accuracy		+/-(5% Reading + 3 Digits) Below 1T Ohms, +/-(15% Reading + 3 Digit) - 1T Ohms and Above
Safety Rating		CAT IV 600V
Leakage Current Range		0 to 9.99, 10.0 to 99.9, 100 to 999nA, 1 to 9.99, 10.0 to 99.9, 100 to 999uA, 1 to 5.5mA
Data Logging		1000 Data Points
Interface		RS-232
Auto Ranging		Yes
Features		R(T) Graph Real Time Resistance Against Time Graph Plotting Facility to Graphically Illustrate the Response of a Material to an Applied Test Voltage, User Selectable Programmable Timer (1s to 30 Min), Automatic Discharge of Test Object After Completion of Measurement Diagnostic Tools, Polarization Index (Pi), Dielectric Discharge (Dd), Dielectric Absorption Ratio (Dar) with Automated Resistance Ranging (Ar), Step Voltage Test, Insulation Resistance Will be Measured at Five Different, Equality Sequenced Test Voltages for In Depth Insulation SysteM Ohms Diagnostics, All Parameters Can Be Measured and Displayed in One Single Measurement, High Charging Capacity with 5 Ma Charging Current Insulation Systems Upto 50 micronf Can Be Quickly Charged and Tested, High EM Ohms (Noise) Immunity Built In Noise Rejection Filters and Shielded Test Leads Supplied In A Standard Set Make The Instrument Suitable for Accurate Insulation Testing In Environments with High EM Ohms Interferences Like Hv Switchyards or Similar Environments
Power Source		Dual, External Power Source and Batteries
Includes		Mains Cable for 110V and Shuko Cable for 220V, 10 kV Shielded Test Lead Set, 2M Ohms (Black, Red), 10kV Alligator Set (Black, Red), Test Lead with Alligator Clip, 2 M Ohms (Green), 6 x 1.2V NiMH Batteries, C Type, PC Software CD, USB Cable
Manufacturers Warranty Length		1 yr.
