Motors
>
Definite Purpose AC Motors
>
Vacuum Motors

AMETEK LAMB Vacuum Mtr/Blwr, Tangential, 2 Stge, 1 Spd

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Vacuum Motor/Blower, Bypass, Tangential Discharge, Blower Stages 2, Number of Speeds 1, Open Enclosure, 142.0 CFM @ 2-In. Orifice, Vacuum (H2O Sealed) 150.0, Voltage 240, 60 Hz, 1 Phase, Max. Amps 7.2, Max. Air Watts 700, Tab Mounting, Thermal Protection None, Insulation Class A, Ball Bearings, Ambient Temperature 40 Degrees C, Body Dia. 8.4 In., Overall Height 7 In., Mounting Brackets Aluminum, Intermittent Duty, Average Life 1500 hr.

Grainger Item #	6VMX2
Price (ea.)	$318.25
Brand	AMETEK LAMB
Mfr. Model #	122177-00
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	10.98
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

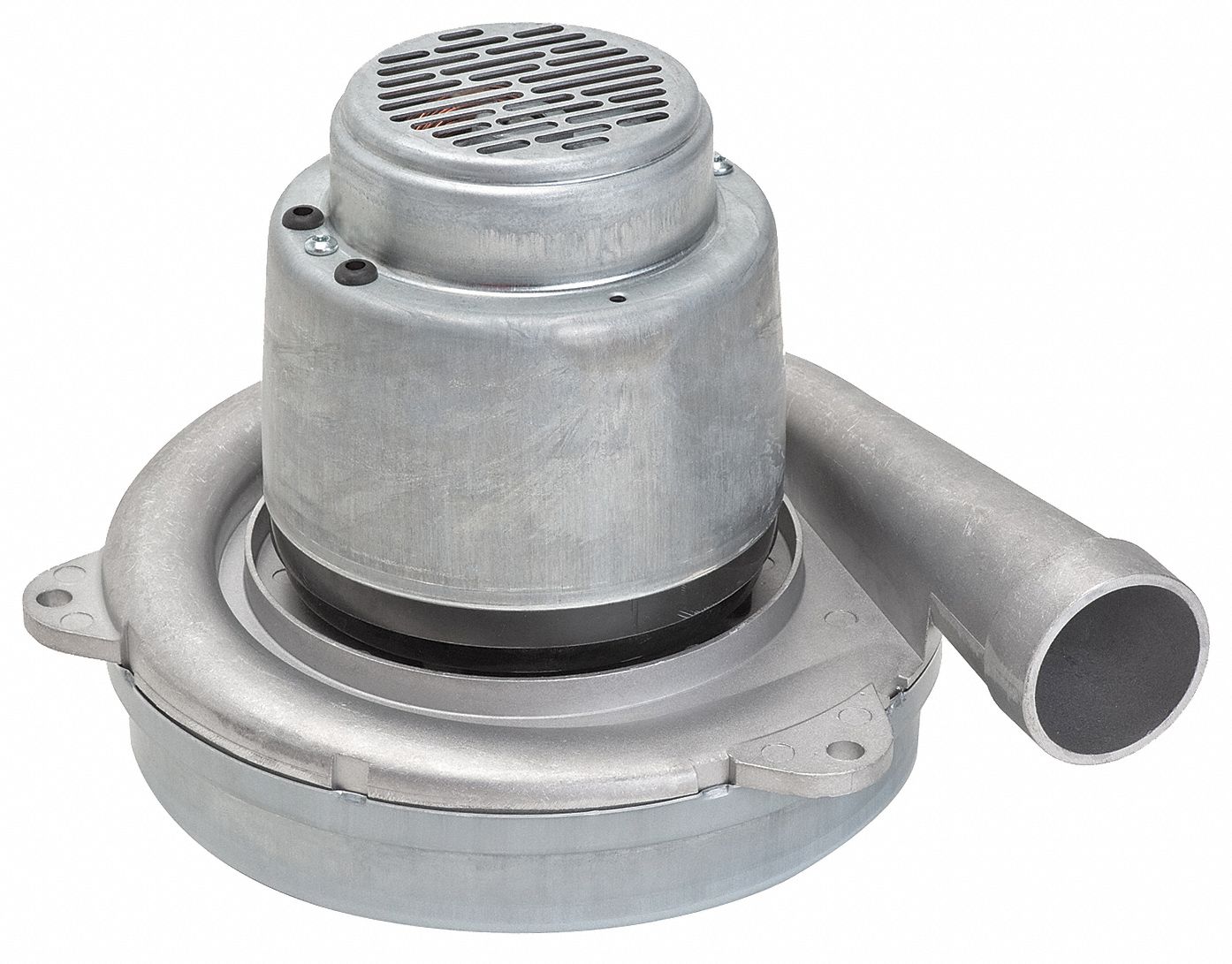

Vacuum Mtr/Blwr, Tangential, 2 Stge, 1 Spd

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Vacuum Motor/Blower
Motor/Blower Type		Bypass
Discharge		Tangential
Blower Stages		2
Number of Speeds		1
Enclosure		Open
CFM @ 2-In. Orifice		142.0
Vacuum (H2O Sealed)		150.0
Voltage		240
Hz		60
Phase		1
Max. Amps		7.2
Max. Air Watts		700
Mounting		Tab
Thermal Protection		None
Insulation Class		A
Bearings		Ball
Ambient Temperature		40 Degrees C
Body Dia.		8.4"
Overall Height		7"
Mounting Brackets		Aluminum
Duty		Intermittent
Average Life		1500 hr.
Nominal Efficiency		45%
Standards		UL Recognized (E47185)
