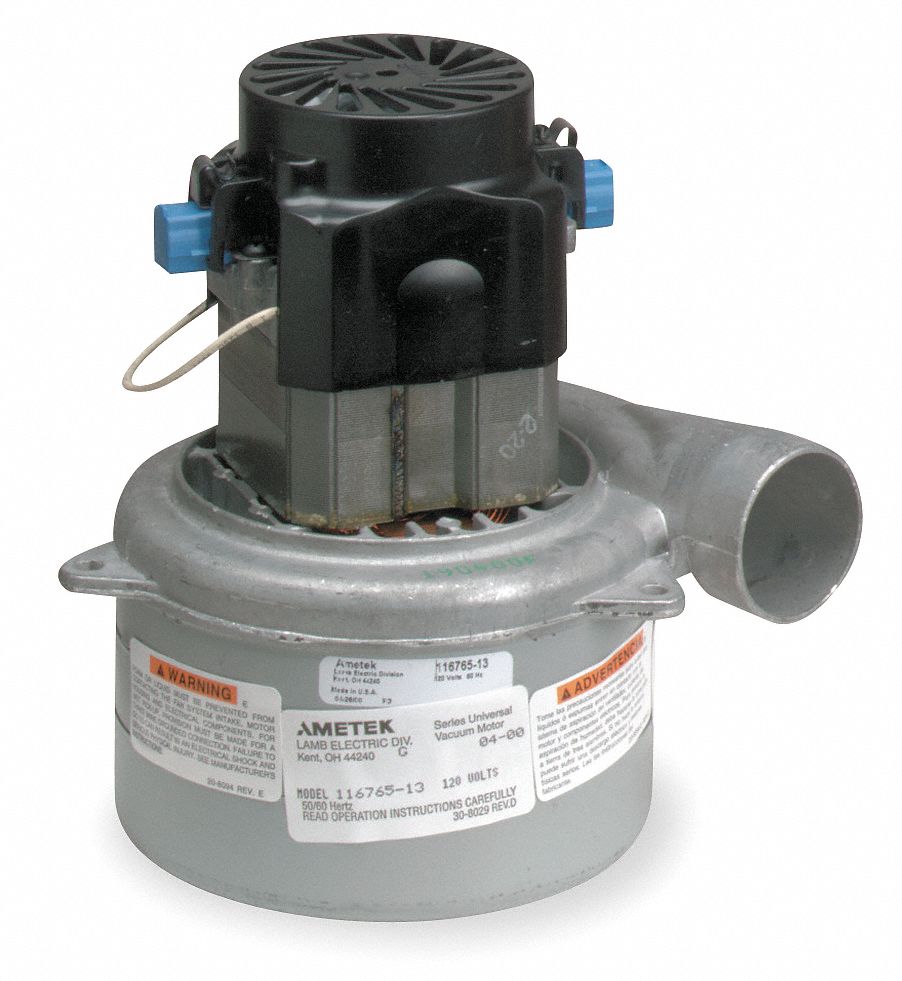

AMETEK LAMB Vacuum Mtr/Blwr, Tangential, 3 Stge, 1 Spd

Vacuum Motor/Blower, Bypass, Tangential Discharge, Blower Stages 3, Number of Speeds 1, Open Enclosure, 101.2 CFM @ 2-In. Orifice, Vacuum (H2O Sealed) 137.1, Voltage 120, 60/50 Hz, 1 Phase, Max. Amps 13.5, Max. Air Watts 485, All Position Mounting, Thermal Protection None, Insulation Class A, Ball Bearings, Ambient Temperature 40 Degrees C, Body Dia. 5.7 In., Overall Height 8-1/3 In., Mounting Brackets Metal, Intermittent Duty
  • Grainger Item #4M921
    Price (ea.)$219.00
    BrandAMETEK LAMB
    Mfr. Model #116765-13
    UNSPSC #26101604
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)7.6
    Availability Typically in Stock
    Catalog Page No.84
    Country of Origin
    (Country of Origin is subject to change.)
    Mexico
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemVacuum Motor/Blower
Motor/Blower TypeBypass
DischargeTangential
Blower Stages3
Number of Speeds1
EnclosureOpen
CFM @ 2-In. Orifice101.2
Vacuum (H2O Sealed)137.1
Voltage120
Hz60/50
Phase1
Max. Amps13.5
Max. Air Watts485
MountingAll Position
Thermal ProtectionNone
Insulation ClassA
BearingsBall
Ambient Temperature40 Degrees C
Body Dia.5.7"
Overall Height8-1/3"
Mounting BracketsMetal
DutyIntermittent
Average Life500 hr.
StandardsUL Recognized (E47185), CSA Certified (LR31393)
Footnotes68, 72
Replacement BrushesMfr. No. 833423-51
