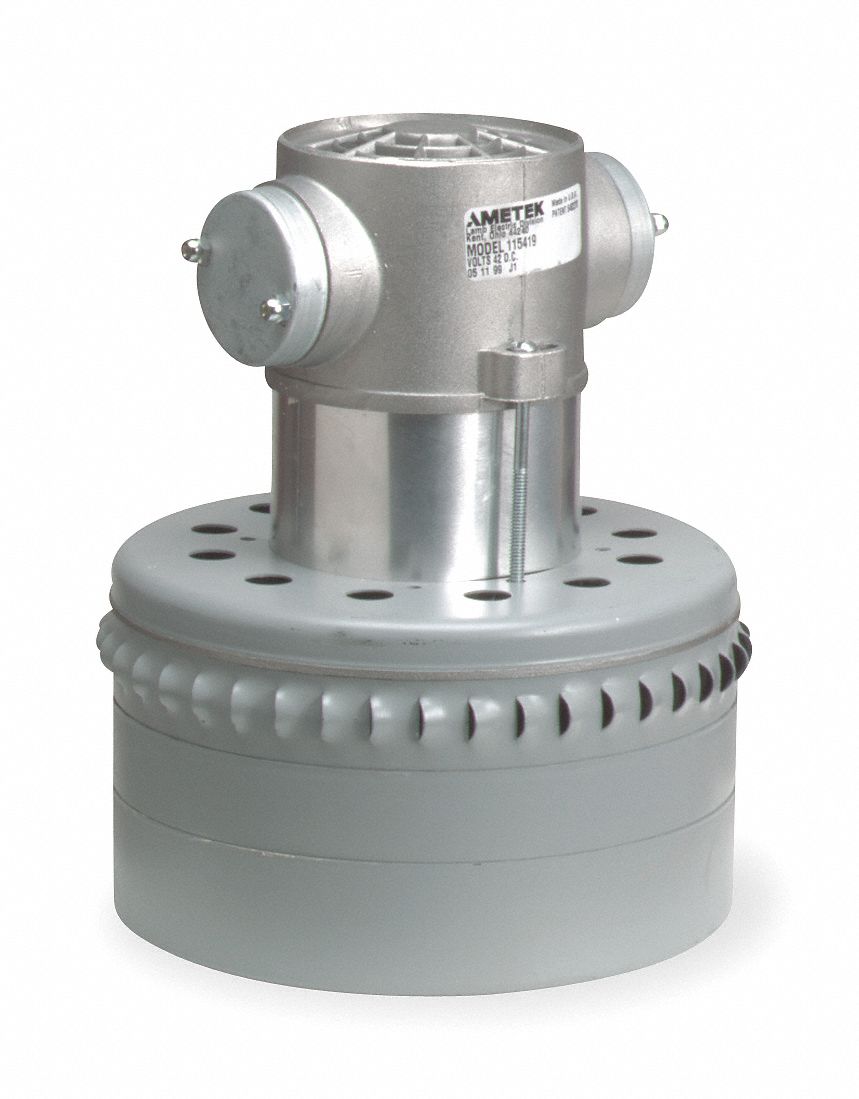

AMETEK LAMB Vacuum Mtr/Blwr, Peripheral, 3 Stge, 1 Spd

Vacuum Motor/Blower, Bypass, Peripheral Discharge, Blower Stages 3, Number of Speeds 1, Open Enclosure, 126.0 CFM @ 2-In. Orifice, Vacuum (H2O Sealed) 88.2, Voltage 120, 60/50 Hz, 1 Phase, Max. Amps 11.6, Max. Air Watts 360, All Position Mounting, Thermal Protection None, Insulation Class A, Ball Bearings, Ambient Temperature 40 Degrees C, Body Dia. 7.5 In., Overall Height 9-7/16 In., Mounting Brackets Metal, Intermittent Duty, Average Life 1000 hr.Standard Efficiency Group
  • Grainger Item #2M179
    Price (ea.)$574.00
    BrandAMETEK LAMB
    Mfr. Model #114787
    UNSPSC #26101604
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)11.85
    Availability Typically in Stock
    Catalog Page No.84
    Country of Origin
    (Country of Origin is subject to change.)
    Mexico
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemVacuum Motor/Blower
Motor/Blower TypeBypass
DischargePeripheral
Blower Stages3
Number of Speeds1
EnclosureOpen
CFM @ 2-In. Orifice126.0
Vacuum (H2O Sealed)88.2
Voltage120
Hz60/50
Phase1
Max. Amps11.6
Max. Air Watts360
MountingAll Position
Thermal ProtectionNone
Insulation ClassA
BearingsBall
Ambient Temperature40 Degrees C
Body Dia.7.5"
Overall Height9-7/16"
Mounting BracketsMetal
DutyIntermittent
Average Life1000 hr.
Efficiency GroupStandard
StandardsUL Recognized (E47185), CSA Certified (LR31393)

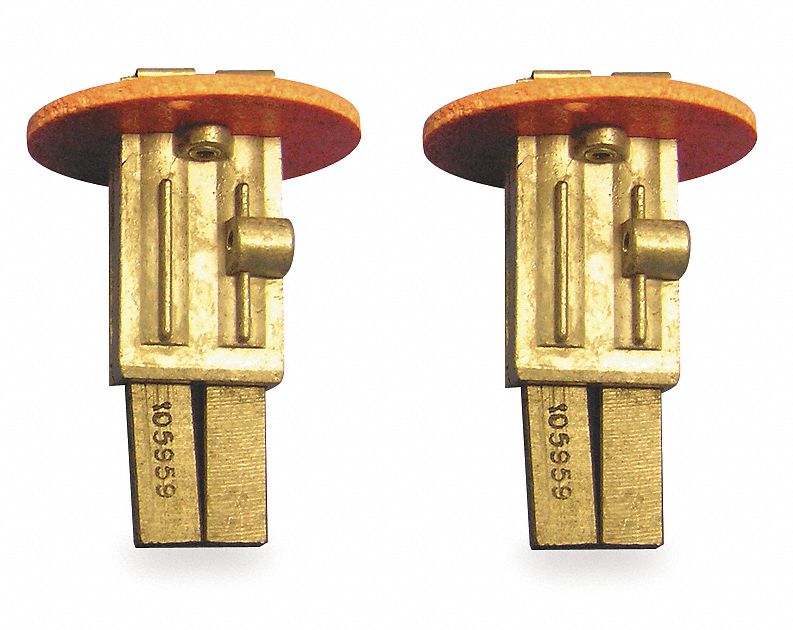

Replacement BrushesMfr. No. 833300-50
