Motors
>
Definite Purpose AC Motors
>
Vacuum Motors

AMETEK LAMB Vacuum Mtr/Blwr, Tangential, 2 Stge, 1 Spd

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Vacuum Motor/Blower, Bypass, Tangential Discharge, Blower Stages 2, Number of Speeds 1, Open Enclosure, 102.7 CFM @ 2-In. Orifice, Vacuum (H2O Sealed) 110.0, Voltage 120, 60/50 Hz, 1 Phase, Max. Amps 13.0, Max. Air Watts 384, All Position Mounting, Thermal Protection None, Insulation Class A, Ball Bearings, Ambient Temperature 40 Degrees C, Body Dia. 7.2 In., Overall Height 6-1/16 In., Mounting Brackets Metal, Intermittent Duty

Grainger Item #	2M174
Price (ea.)	$287.75
Brand	AMETEK LAMB
Mfr. Model #	115334
UNSPSC #	26101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	8.9
Availability	Typically in Stock
Catalog Page No.	84
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

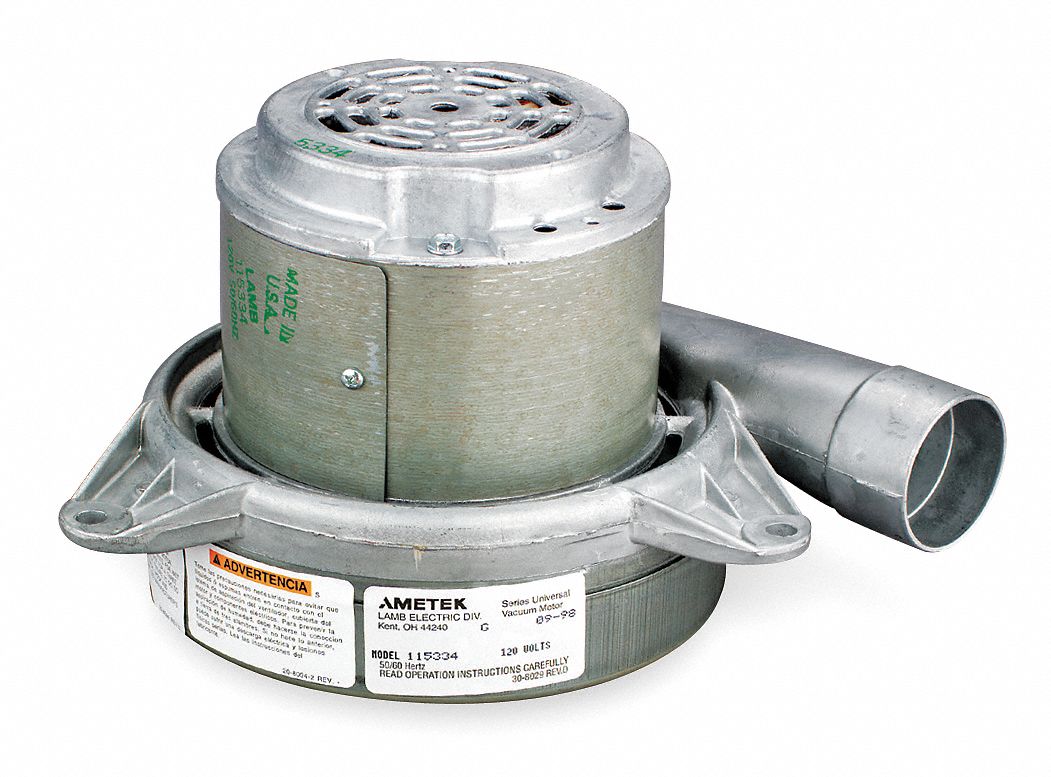

Vacuum Mtr/Blwr, Tangential, 2 Stge, 1 Spd

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Vacuum Motor/Blower
Motor/Blower Type		Bypass
Discharge		Tangential
Blower Stages		2
Number of Speeds		1
Enclosure		Open
CFM @ 2-In. Orifice		102.7
Vacuum (H2O Sealed)		110.0
Voltage		120
Hz		60/50
Phase		1
Max. Amps		13.0
Max. Air Watts		384
Mounting		All Position
Thermal Protection		None
Insulation Class		A
Bearings		Ball
Ambient Temperature		40 Degrees C
Body Dia.		7.2"
Overall Height		6-1/16"
Mounting Brackets		Metal
Duty		Intermittent
Average Life		700 hr.
Standards		UL Recognized (E47185), CSA Certified (LR31393)
Footnotes		68
Replacement Brushes		Mfr. No. 833415-54
