Motors
>
Definite Purpose AC Motors
>
Universal AC/DC Motors

4hp, 19, 500rpm, 120V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Universal AC/DC MotorOpen, 1/4 HP, 480 Input Watts, Nameplate RPM 19, 500, Voltage 120, 60 Hz, 1 PhaseMounting Hole, Mounting Holes (2) #8-32, O.C. Mounting 2-1/4 In., Thermal Protection One-shot, Insulation Class A, 1.0 Service Factor, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CCWSE Rotation, Shaft Dia. 5/16 In., Shaft Length 1-3/16 In., Overall Length 4-11/16 In., Length Less Shaft 3-1/2 In., Body Dia. 2-7/16 In., Housing Material Thermoset Plastic, Finish Black Enamel

Grainger Item #	3GXF6
Price (ea.)	$57.55
Brand	AMETEK LAMB
Mfr. Model #	5409-33-2
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.86
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $12.95 each.
Price shown may not reflect your price. Sign in or register.

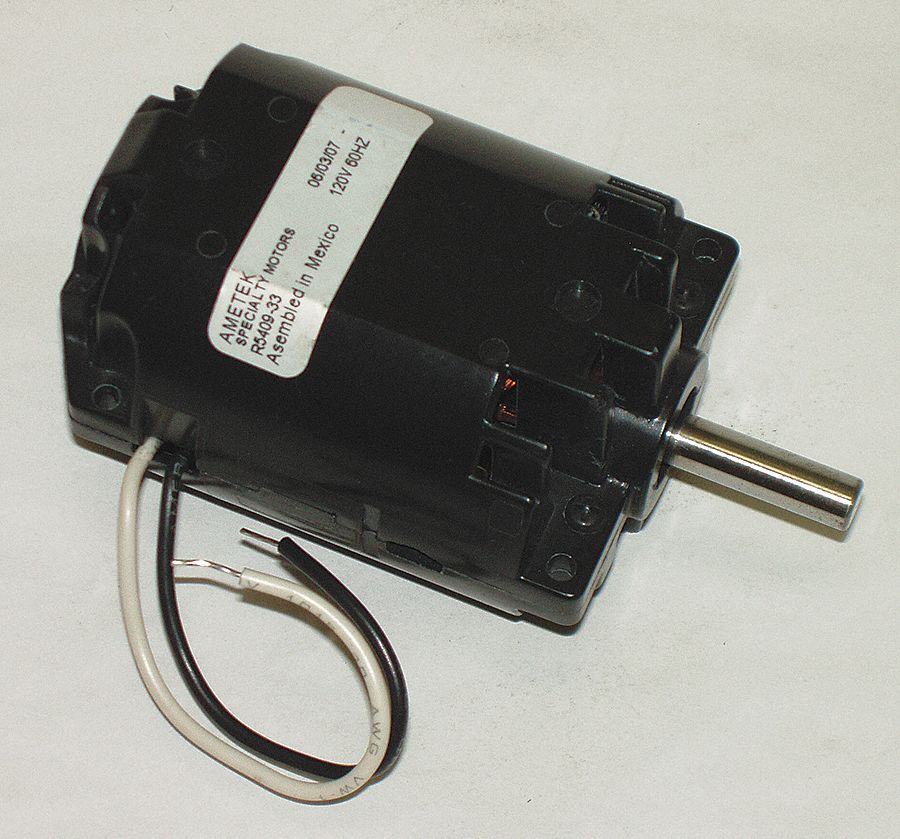

Universal AC/DC Mtr, 1/4hp, 19, 500rpm, 120V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Universal AC/DC Motor
Enclosure		Open
HP		1/4
Input Watts		480
Nameplate RPM		19,500
NEMA/IEC Frame		Nonstandard
Frame		Nonstandard
Voltage		120
Hz		60
Phase		1
Mounting		Hole
Mounting Holes		(2) #8-32
O.C. Mounting		2-1/4"
Thermal Protection		One-shot
Insulation Class		A
Service Factor		1.0
Bearings		Ball
Max. Ambient Temp.		40 Degrees C
Rotation		CCWSE
Shaft Dia.		5/16"
Shaft Length		1-3/16"
Overall Length		4-11/16"
Length Less Shaft		3-1/2"
Body Dia.		2-7/16"
Housing Material		Thermoset Plastic
Finish		Black Enamel
Average Brush Life		200 hr.
Application		Motorized Brush-Drive Power Head Replacement
RPM Range		10,000-20,000
Standards		UL Listed (E47185), CSA Certified (LR31393)
