ALCON Solenoid Valve, 2 Way, NC, Delrin, 3/8 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Solenoid Valve, Direct Acting, Number of Ways 2, Configuration Normally Closed, Cv Flow Factor 0.45, 3/8 Pipe Size (In.), 5/32 Orifice Dia. (In.), PSI Differential Min. 0, Safe Working Water PSI 250, 31.2 Airflow (SCFM), 120 Max. Fluid Temp. (F), Voltage 120VAC, Coil Insulation Class F, Coil Enclosure NEMA4, Body Material Delrin, Gasket Material Buna N, Length 1.5 In., Width 1.48 In., Height 2.90 In.

Grainger Item #	5WNA3
Price (ea.)	$59.15
Brand	ALCON
Mfr. Model #	02CZ062A1-1GCF
UNSPSC #	40141605
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.5
Availability	Typically in Stock
Catalog Page No.	4387
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $12.95 each.
Price shown may not reflect your price. Sign in or register.

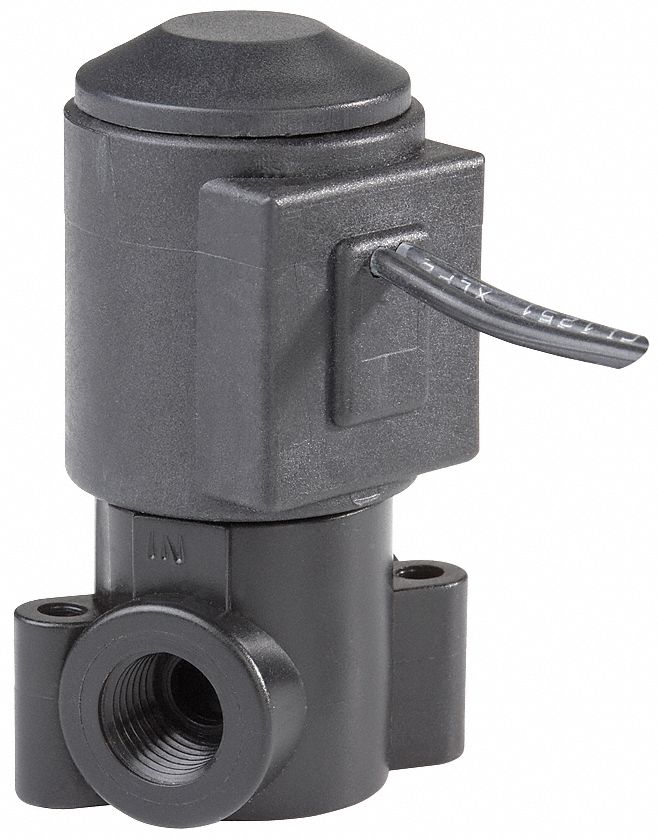

Solenoid Valve, 2 Way, NC, Delrin, 3/8 In

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Solenoid Valve
Type		Direct Acting
Number of Ways		2
Configuration		Normally Closed
Cv Flow Factor		0.45
Pipe Size (In.)		3/8
Orifice Dia. (In.)		5/32
PSI Differential Min.		0
Max. Operating Pressure Differential Water		250
Max. Operating Pressure Differential Air/Inert Gas		250
Max. PSI Differential Air/Water		250
Safe Working Water PSI		250
GPM Max.		3.05
Min. Flow Rate (GPM)		0
Airflow (SCFM)		31.2
Max. Fluid Temp. (F)		120
Voltage		120VAC
Watts		12
Coil Insulation Class		F
Coil Enclosure		NEMA4
Body Material		Delrin
Gasket Material		Buna N
Length		1.5"
Width		1.48"
Height		2.90"
Agency Compliance		NSF 61
