HVAC and Refrigeration
>
Cooling Fans and Accessories
>
Air Circulators

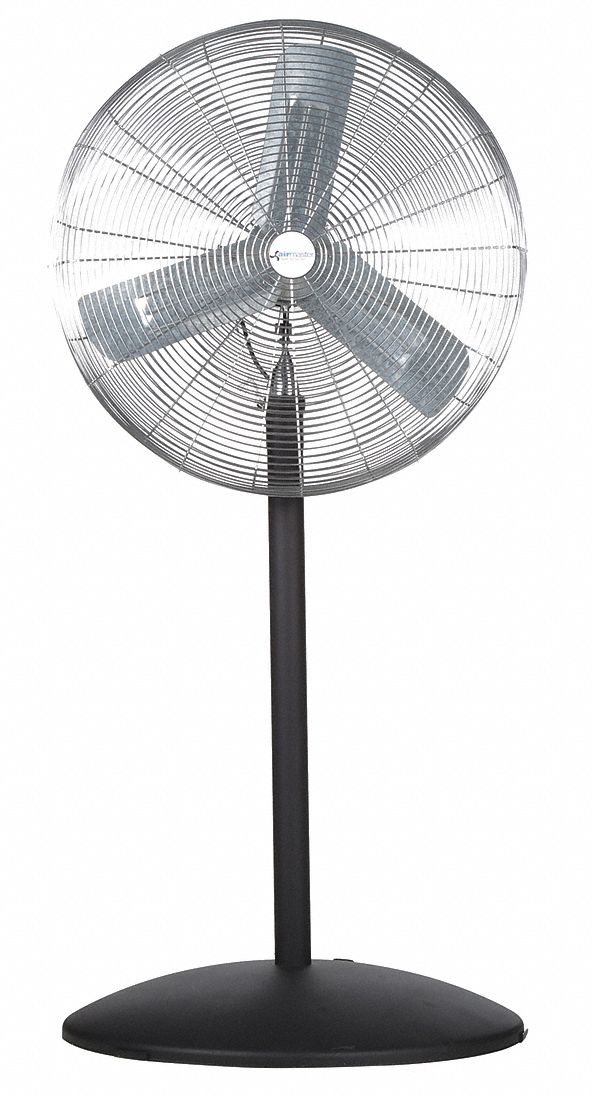

AIRMASTER FAN Air Circulator, 30 In, 6100 cfm, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Circulator, Blade Dia. 30 In., Stationary, Non-Oscillating, Speeds 3, Voltage 115V, 1 Phase, CFM High 6100, CFM Low 2700, Air Velocity (FPM) @ 20 Ft. 500, Motor HP 1/4, Motor RPM 1100, Operating Amps 3.3, Mounting Location Pedestal, Fan RPM 1100, Commercial, Assembled Unassembled, CFM Medium 4400Outside Dia. 33 In., Includes Pedestal Base and Column

Grainger Item #	2LBA5
Price (ea.)	$351.50
Brand	AIRMASTER FAN
Mfr. Model #	CA30AP
UNSPSC #	40101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	90.0
Availability	Item ships within 6 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

Item		Air Circulator
Blade Dia.		30"
Mobile/Stationary		Stationary
Oscillating/Non-Oscillating		Non-Oscillating
Speeds		3
Voltage		115V
Phase		1
CFM High		6100
CFM Low		2700
Air Velocity (FPM) @ 20 Ft.		500
Motor HP		1/4
Motor RPM		1100
Operating Amps		3.3
Mounting Location		Pedestal
Fan RPM		1100
Environmental Applications		Commercial
Assembled		Unassembled
CFM Medium		4400
Air Velocity (FPM) @ 10 Ft.		800
Air Velocity (FPM) @ 40 Ft		200
Air Velocity (FPM) @ 60 Ft.		200
Air Velocity (FPM) @ 80 Ft.		100
Sound Level		76dBA
Max. Ambient Temp.		104 Degrees F
Hz		60
Watts		230
Motor Type		Permanent Split Capacitor
Drive Type		Direct
Motor Enclosure		Totally Enclosed Air-Over
Motor Insulation		Class B
Thermal Protection		Auto
Bearing Type		Ball
Outside Dia.		33"
Height		33"
Width		33"
Max. Depth		21"
Cord Length		15 ft.
Number of Blades		3
Blade Material		Galvanized Steel
Shaft Dia.		5/8"
Housing Material		Steel
Guard Material		Steel
Wire Guard Finish		Nickel Chrome
Application		Spot Cooling and People Cooling
Standards		cULus/OSHA
Includes		Pedestal Base and Column
