HVAC and Refrigeration
>
Cooling Fans and Accessories
>
Air Circulators

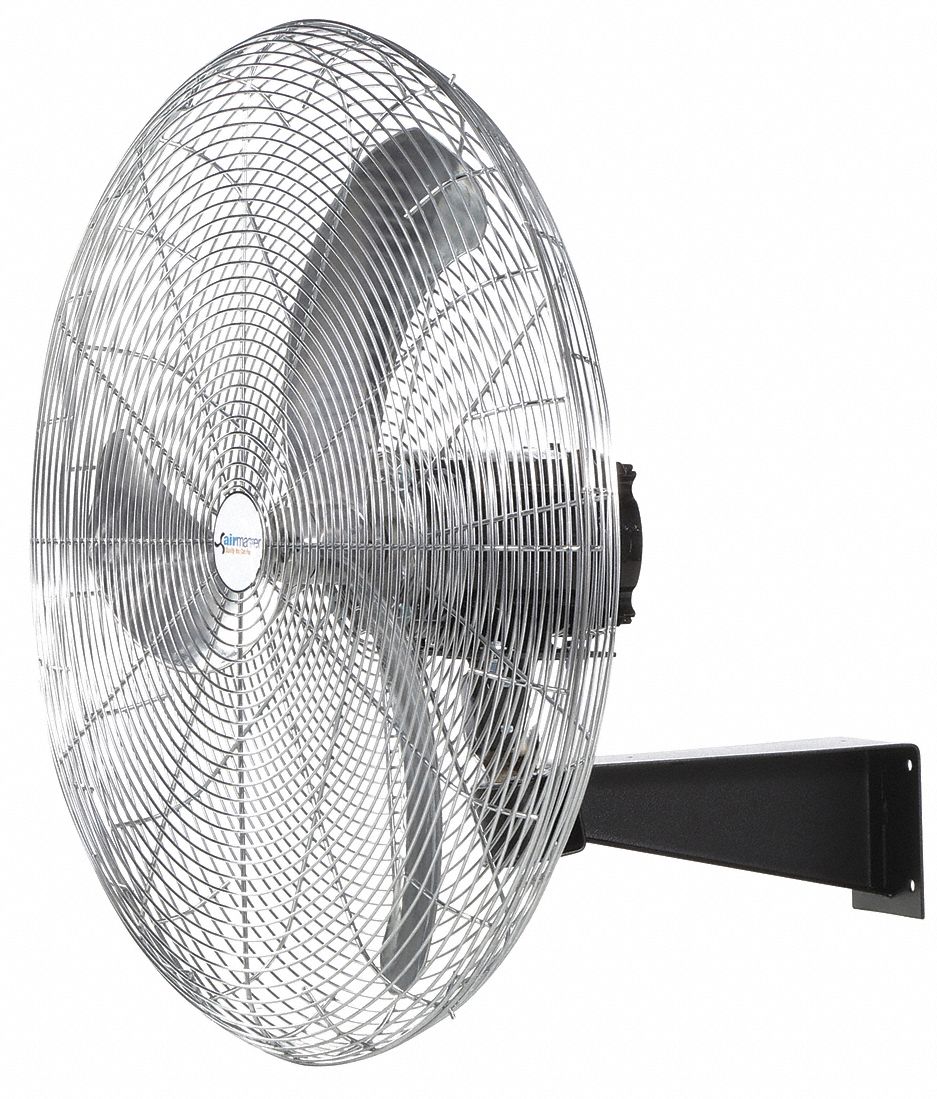

AIRMASTER FAN Air Circulator, 30 In, 8402 cfm, 115/230V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Circulator, Blade Dia. 30 In., Stationary, Non-Oscillating, Speeds 1, Voltage 115/230V, 1 Phase, CFM High 8402, CFM Low 4463, Air Velocity (FPM) @ 20 Ft. 700, Motor HP 1/4, Motor RPM 1140, Operating Amps 6.0/3, Mounting Location Wall, Fan RPM 1140, Hazardous Location, Assembled Assembled, CFM Medium 6259Outside Dia. 33 In., Includes Wall Bracket

Grainger Item #	2LBA4
Price (ea.)	$1,266.00
Brand	AIRMASTER FAN
Mfr. Model #	UP30LW16X8
UNSPSC #	40101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	88.0
Availability	Item ships within 6 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Item		Air Circulator
Blade Dia.		30"
Mobile/Stationary		Stationary
Oscillating/Non-Oscillating		Non-Oscillating
Speeds		1
Voltage		115/230V
Phase		1
CFM High		8402
CFM Low		4463
Air Velocity (FPM) @ 20 Ft.		700
Motor HP		1/4
Motor RPM		1140
Operating Amps		6.0/3
Mounting Location		Wall
Fan RPM		1140
Environmental Applications		Hazardous Location
Assembled		Assembled
CFM Medium		6259
Air Velocity (FPM) @ 10 Ft.		1000
Air Velocity (FPM) @ 40 Ft		400
Air Velocity (FPM) @ 60 Ft.		300
Air Velocity (FPM) @ 80 Ft.		200
Sound Level		74dBA
Max. Ambient Temp.		104 Degrees F
Hz		60
Watts		410/415
Motor Type		Permanent Split Capacitor
Drive Type		Direct
Motor Enclosure		Totally Enclosed Fan Cooled
Motor Insulation		Class B
Thermal Protection		Auto
Bearing Type		Ball
Outside Dia.		33"
Height		33"
Width		33"
Max. Depth		21"
Number of Blades		3
Blade Material		Cast Aluminum
Shaft Dia.		5/8"
Housing Material		Steel
Guard Material		Steel
Wire Guard Finish		Nickel Chrome
Application		Spot Cooling and People Cooling
Standards		UL Listed for Class 1, Div 1 and 2, Group D, Class 2, Div 1 and 2, Groups E, F and G, OSHA Compliant
Includes		Wall Bracket
