HVAC and Refrigeration
>
Cooling Fans and Accessories
>
Air Circulators

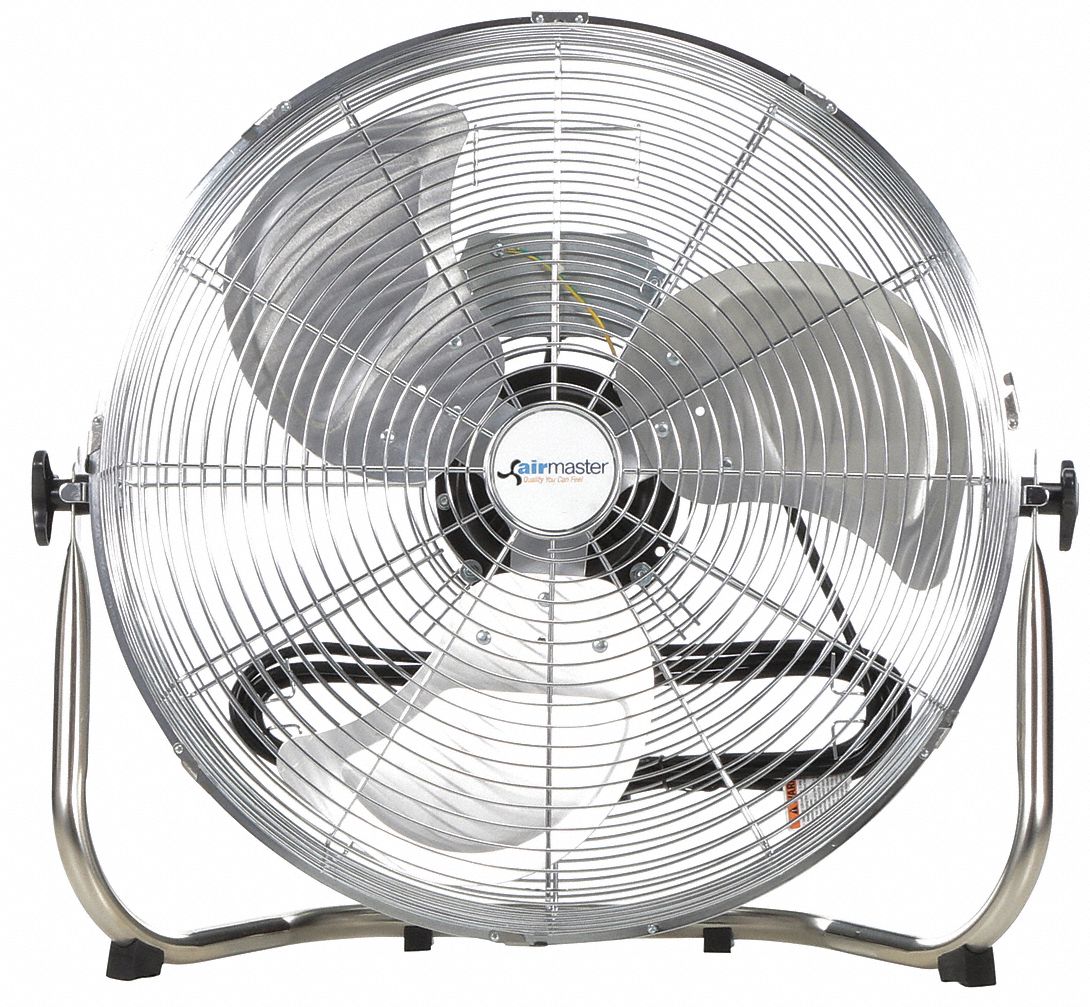

AIRMASTER FAN Air Circulator, 20 In, 3390 cfm, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Circulator, Blade Dia. 20 In., Stationary, Non-Oscillating, Speeds 3, Voltage 115V, 1 Phase, CFM High 3390, CFM Low 2295Motor HP 1/5, Motor RPM 1600, Operating Amps 1.9, Mounting Location Floor, Fan RPM 1600, Commercial, Assembled Unassembled, CFM Medium 2755Outside Dia. 20-1/2 In.

Grainger Item #	2HYH6
Price (ea.)	$161.75
Brand	AIRMASTER FAN
Mfr. Model #	I-20LS
UNSPSC #	40101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	26.0
Availability	Item ships within 6 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

Item		Air Circulator
Blade Dia.		20"
Mobile/Stationary		Stationary
Oscillating/Non-Oscillating		Non-Oscillating
Speeds		3
Voltage		115V
Phase		1
CFM High		3390
CFM Low		2295
Motor HP		1/5
Motor RPM		1600
Operating Amps		1.9
Mounting Location		Floor
Fan RPM		1600
Environmental Applications		Commercial
Assembled		Unassembled
CFM Medium		2755
Max. Ambient Temp.		105 Degrees F
Hz		60
Motor Type		Shaded Pole
Drive Type		Direct
Motor Enclosure		Open Dripproof
Motor Insulation		Class B
Thermal Protection		Auto
Bearing Type		Ball
Outside Dia.		20-1/2"
Height		23-1/2"
Width		25"
Max. Depth		9"
Cord Length		8 ft.
Number of Blades		3
Blade Material		Aluminum
Shaft Dia.		3/8"
Housing Material		Steel
Guard Material		Steel
Wire Guard Finish		Nickel Chrome
Application		Spot Cooling and People Cooling
Standards		cUL/OSHA, UL
