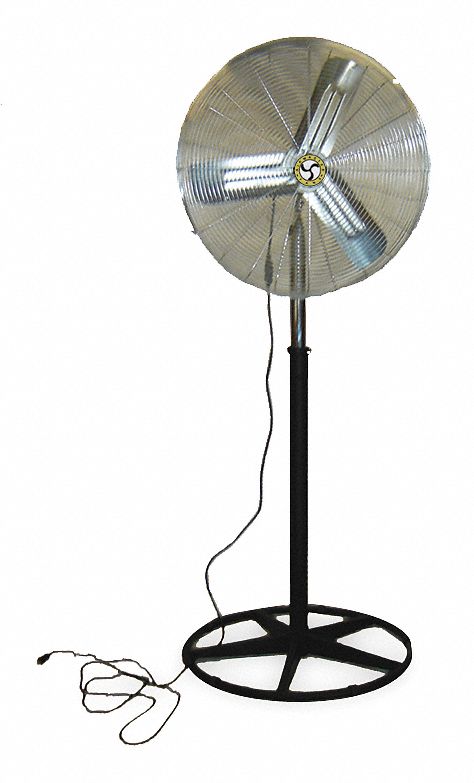

AIRMASTER FAN Air Circulator, 20 In, 2520 cfm, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Circulator, Blade Dia. 20 In., Stationary, Non-Oscillating, Speeds 2, Voltage 115V, 1 Phase, CFM High 2520, CFM Low 2035Motor HP 1/15, Motor RPM 1615, Operating Amps 2.6, Mounting Location Pedestal, Fan RPM 1615, Commercial, Assembled UnassembledOutside Dia. 23 In., Includes Pedestal, Column and Mounting Hardware

Grainger Item #	2HYG9
Price (ea.)	$200.25
Brand	AIRMASTER FAN
Mfr. Model #	C-20PN3
UNSPSC #	40101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	46.0
Availability	Item ships within 6 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

Item		Air Circulator
Blade Dia.		20"
Mobile/Stationary		Stationary
Oscillating/Non-Oscillating		Non-Oscillating
Speeds		2
Voltage		115V
Phase		1
CFM High		2520
CFM Low		2035
Motor HP		1/15
Motor RPM		1615
Operating Amps		2.6
Mounting Location		Pedestal
Fan RPM		1615
Environmental Applications		Commercial
Assembled		Unassembled
Max. Ambient Temp.		105 Degrees F
Hz		60
Motor Type		Permanent Split Capacitor
Drive Type		Direct
Motor Enclosure		Open Dripproof
Motor Insulation		Class B
Thermal Protection		Auto
Bearing Type		Ball
Outside Dia.		23"
Height		23"
Width		23"
Max. Depth		11"
Cord Length		10 ft.
Number of Blades		3
Blade Material		Galvanized Steel
Shaft Dia.		1/2"
Housing Material		Steel
Guard Material		Steel
Wire Guard Finish		Nickel Chrome
Application		Spot Cooling and People Cooling
Standards		cUL/OSHA
Includes		Pedestal, Column and Mounting Hardware
