HVAC and Refrigeration
>
Cooling Fans and Accessories
>
Air Circulators

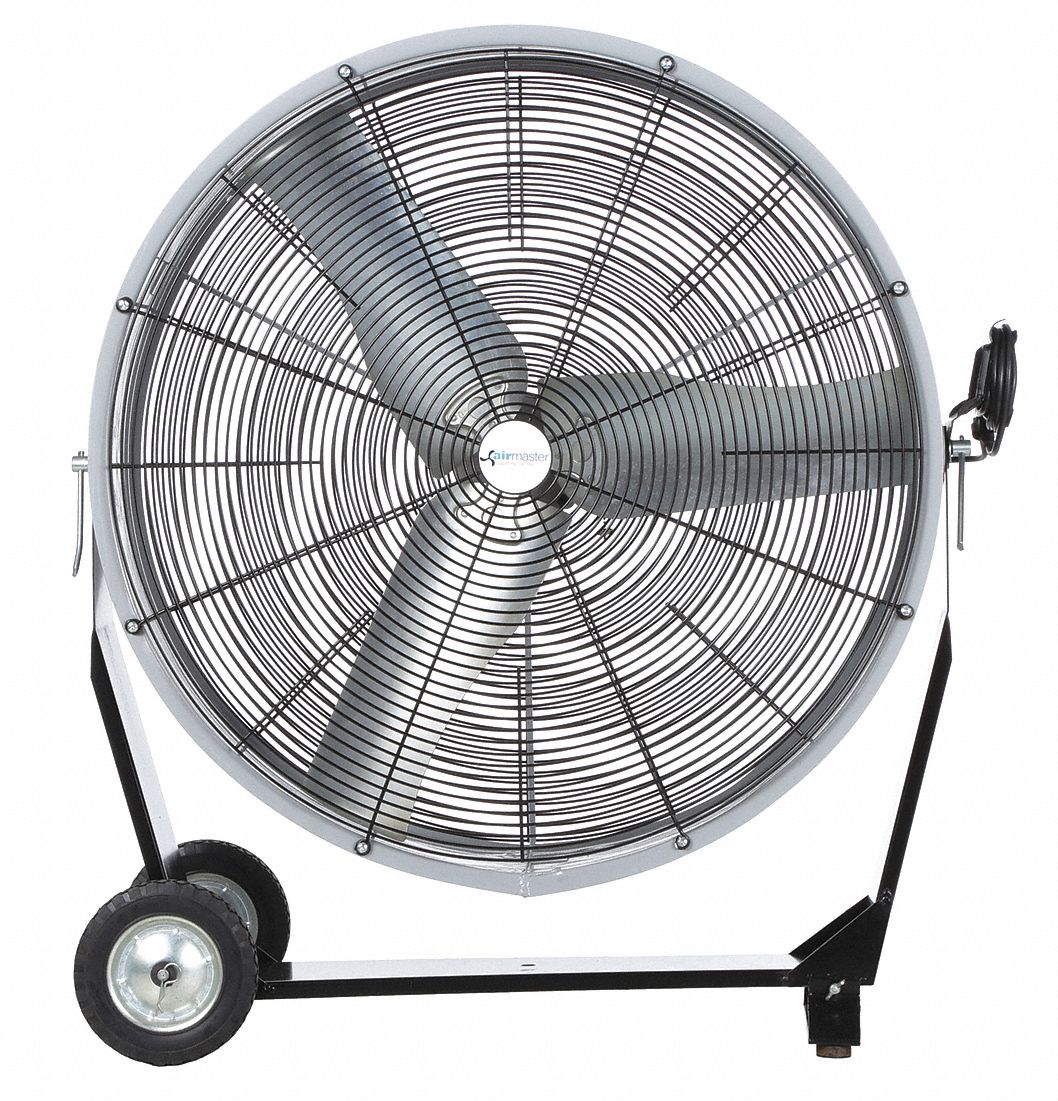

AIRMASTER FAN Air Circulator, 36 In, 11, 200 cfm, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Circulator, Blade Dia. 36 In., Mobile, Non-Oscillating, Speeds 2, Voltage 115V, 1 Phase, CFM High 11, 200, CFM Low 8090, Air Velocity (FPM) @ 20 Ft. 780/545, Motor HP 1/2, Motor RPM 830/600, Operating Amps 4.6/3.5Fan RPM 830/600, Industrial, Assembled AssembledOutside Dia. 37 In., Includes Cord Wrap, Tilt Kit and Four In One Mounting Option, 8 In. Rubber and Steel Casters

Grainger Item #	2FDA7
Price (ea.)	$823.00
Brand	AIRMASTER FAN
Mfr. Model #	DD3641
UNSPSC #	40101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	120.0
Availability	Item ships within 6 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Item		Air Circulator
Blade Dia.		36"
Mobile/Stationary		Mobile
Oscillating/Non-Oscillating		Non-Oscillating
Speeds		2
Voltage		115V
Phase		1
CFM High		11,200
CFM Low		8090
Air Velocity (FPM) @ 20 Ft.		780/545
Motor HP		1/2
Motor RPM		830/600
Operating Amps		4.6/3.5
Fan RPM		830/600
Environmental Applications		Industrial
Assembled		Assembled
Air Velocity (FPM) @ 40 Ft		405/285
Air Velocity (FPM) @ 60 Ft.		295/205
Sound Level		70dBA
Max. Ambient Temp.		105 Degrees F
Hz		60
Watts		475
Motor Type		Permanent Split Capacitor
Drive Type		Direct
Motor Enclosure		Totally Enclosed Air-Over
Motor Insulation		Class B
Thermal Protection		Auto
Bearing Type		Ball
Outside Dia.		37"
Height		44"
Width		41"
Max. Depth		20"
Cord Length		10 ft.
Number of Blades		3
Blade Material		Galvanized Steel
Shaft Dia.		5/8"
Housing Material		Steel
Guard Material		Steel
Wire Guard Finish		Gray Powder Coat
Application		Spot Cooling and People Cooling
Standards		CUL
Includes		Cord Wrap, Tilt Kit and Four In One Mounting Option, 8" Rubber and Steel Casters
