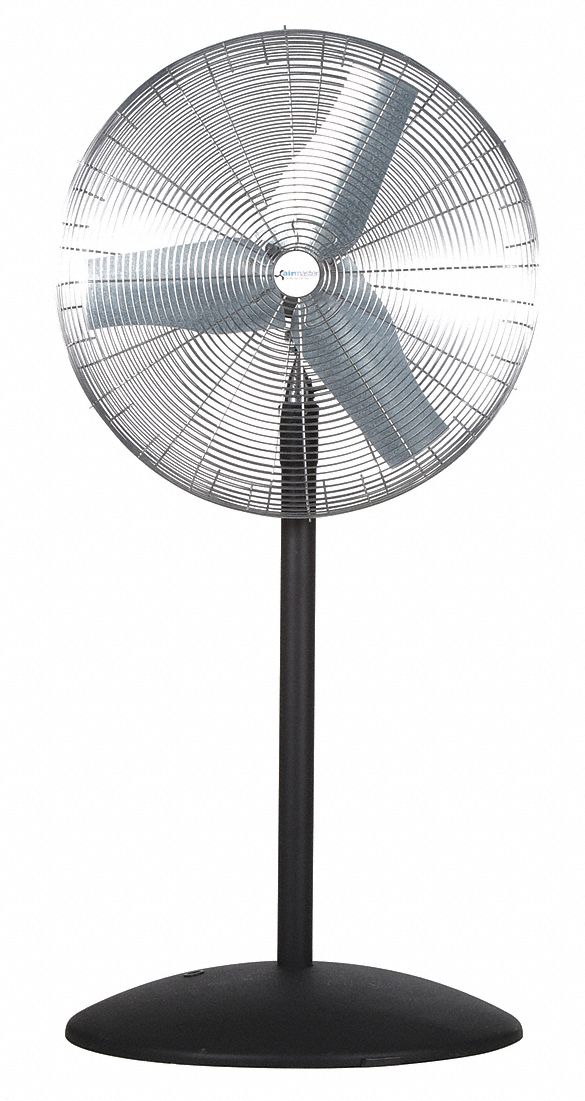

AIRMASTER FAN Air Circulator, 30 In, 7794 cfm, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Circulator, Blade Dia. 30 In., Stationary, Oscillating, Speeds 3, Voltage 115V, 1 Phase, CFM High 7794, CFM Low 5143, Air Velocity (FPM) @ 20 Ft. 690, Motor HP 1/3, Motor RPM 1100, Operating Amps 3.2, Mounting Location Floor, Fan RPM 1091, Industrial, Assembled Unassembled, CFM Medium 5943, CFM/Watt 31.5, Outside Dia. 33-1/2 In., Includes Pedestal

Grainger Item #	15E712
Price (ea.)	$504.00
Brand	AIRMASTER FAN
Mfr. Model #	I-30-OAP
UNSPSC #	40101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	95.0
Availability	Item ships within 6 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Item		Air Circulator
Blade Dia.		30"
Mobile/Stationary		Stationary
Oscillating/Non-Oscillating		Oscillating
Speeds		3
Voltage		115V
Phase		1
CFM High		7794
CFM Low		5143
Air Velocity (FPM) @ 20 Ft.		690
Motor HP		1/3
Motor RPM		1100
Operating Amps		3.2
Mounting Location		Floor
Fan RPM		1091
Environmental Applications		Industrial
Assembled		Unassembled
CFM Medium		5943
CFM/Watt		31.5
Air Velocity (FPM) @ 10 Ft.		950
Air Velocity (FPM) @ 40 Ft		390
Air Velocity (FPM) @ 60 Ft.		310
Air Velocity (FPM) @ 80 Ft.		160
Sound Level		76dBA
Max. Ambient Temp.		104 Degrees F
Hz		60
Watts		280
Motor Type		Permanent Split Capacitor
Drive Type		Direct
Motor Enclosure		Totally Enclosed Air-Over
Motor Insulation		Class B
Thermal Protection		Yes
Bearing Type		Ball
Outside Dia.		33-1/2"
Height		92"
Width		33-1/2"
Max. Depth		16"
Cord Length		10 ft.
Number of Blades		3
Blade Material		Galvanized Steel
Shaft Dia.		5/8"
Housing Material		Steel
Guard Material		Steel
Wire Guard Finish		Nickel Chrome
Application		Air Circulation
Standards		UL, cULus, CUL
Includes		Pedestal
