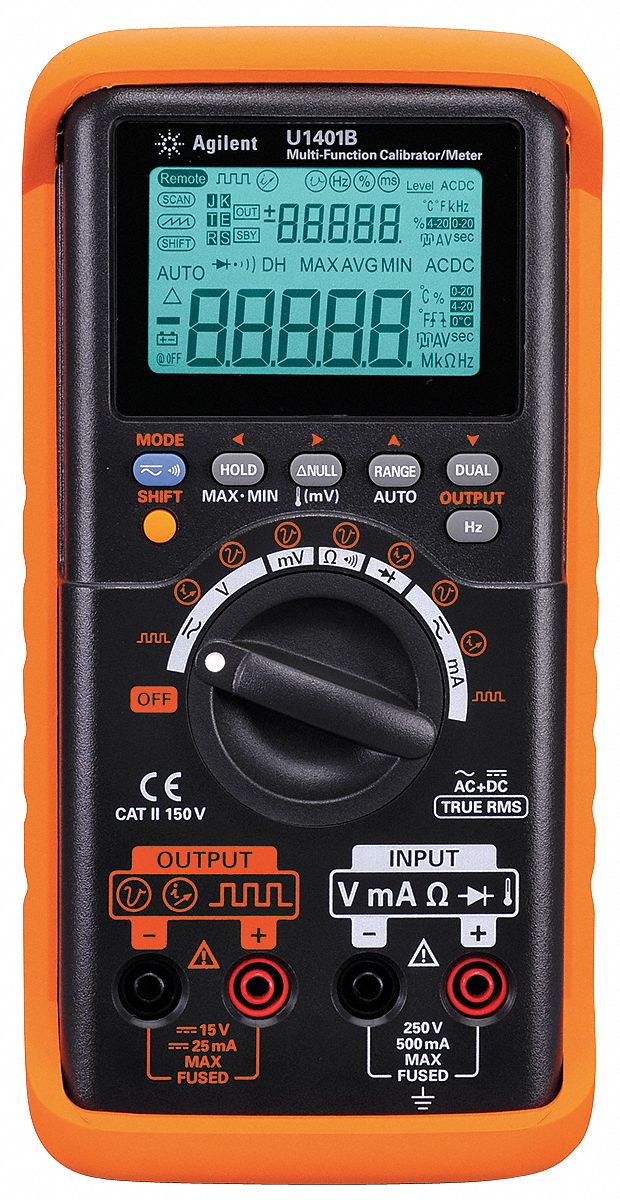

Multifunction Calibrator/Meter, Source Current -25.000 to 25.000 mA DC, Current Measurement Range 0 to 500 mA DC, Source Voltage -1.500 to 1.500 VDC, -15.000 to 15.00 VDC, Voltage Measurement Range 50 mV to 250 V AC/DC, Loop Supply Voltage Supplies up to 15V, Accuracy +/-0.03 Percent + 3 Digits, Basic DC Accuracy +/-0.03 Percent + 5 Digits, Amps AC 500 mA, Amps DC 500 mA, True RMS Yes, Display LCD with Backlight, Safety Rating CAT II 150 V, Calibration Certificate NIST
  • Grainger Item #5NND5
    Price (ea.)$771.00
    BrandAGILENT TECHNOLOGIES
    Mfr. Model #U1401B
    UNSPSC #41113630
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)4.85
    Availability Typically in Stock
    Catalog Page No. N/A
    Country of Origin
    (Country of Origin is subject to change.)
    Malaysia
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemMultifunction Calibrator/Meter
Source Current-25.000 to 25.000 mA DC
Current Measurement Range0 to 500 mA DC
Source Voltage-1.500 to 1.500 VDC, -15.000 to 15.00 VDC
Voltage Measurement Range50 mV to 250 V AC/DC
Loop Supply VoltageSupplies up to 15V
Accuracy+/-0.03% + 3 Digits
Voltage (AC)50 mV to 250 V
Voltage (DC)50 mV to 250 V
Basic DC Accuracy+/-0.03% + 5 Digits
Amps AC500 mA
Amps DC500 mA
Resistance (Ohms)500 to 50 M
True RMSYes
Temp. Range (F)-40 Degrees to 2502 Degrees
Temp. Rating (C)-40 Degrees to 1372 Degrees
Frequency Range (Hz)100 to 200 K
DisplayLCD with Backlight
Safety RatingCAT II 150 V
Calibration CertificateNIST
IncludesStandard Test Lead Kit, Yellow Test Lead for mA Simulation, Protective Holster, Rechargeable Battery Pack, AC Power Adapter with Cord and Instructions
Manufacturers Warranty Length3 Years

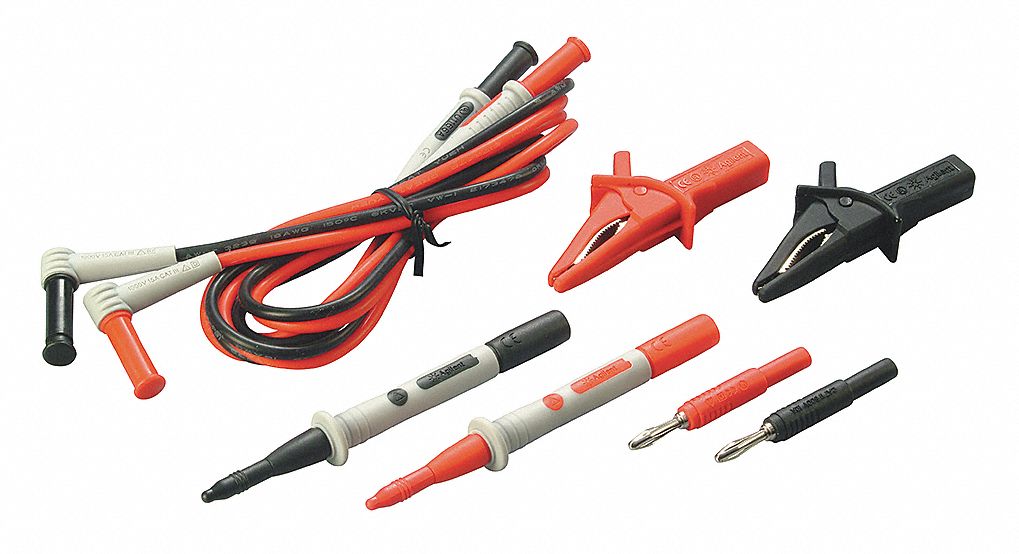

Optional Accessories

More Accessories

Brand:

AGILENT TECHNOLOGIES

Grainger Item #:

3RDY5

Price (ea.):

$52.70
